1
Engine displacement
1000
2
Year
2016
3
Trim
SPORTSMAN XP 1000 ZUG
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION A-ARMS
by
ELECTRICAL, IGNITION SYSTEM
REAR SUSPENSION
1
2
2
2
2
3
3
3
4
4
5
5
6
6
7
8
8
9
10
11
12
13
14
14
15
16
17
18
19
1
HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM
7518467
$10,49 Unit Price incl. VAT
2
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
3
HD BUSHING W/ SEAL ASSEMBLY(4)
1543367
$19,94 Unit Price incl. VAT
4
WELD-UCA REAR RH MATTE BLK
1017217458
Not Available
4
CONTROL ARM WELD REAR UPPER LEFT MT BLK
1017216458
Not Available
5
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
6
A-ARM SHAFT
5137346
$31,49 Unit Price incl. VAT
7
BOLT 10 MM X 1.5 MM X 85
7518466
$9,44 Unit Price incl. VAT
8
CONTROL ARM; REAR; LOWER; LEFT; MT BLK
1019410458
Not Available
8
CONTROL ARM; REAR; LOWER; RIGHT; MT BLK
1019411458
Not Available
9
HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM
7518675
$10,49 Unit Price incl. VAT
10
PIVOT SHAFT; 104.9 MM
5137590
$16,79 Unit Price incl. VAT
11
LOWER CONTROL ARM A ARM SHAFT
5136473
5145086
$68,24 Unit Price incl. VAT
12
CONTROL ARM BUSHING; LOWER; .75 IN
5437651
$12,59 Unit Price incl. VAT
13
PIVOT SHAFT; 210.27 MM; ZINC YELLOW
5137594
$16,79 Unit Price incl. VAT
14
HD BUSHING W/ SEAL ASSEMBLY(4)
1543326
$24,14 Unit Price incl. VAT
15
HEX FLANGE SCREW 10MM X 1.25MM X 235MM
7519086
$52,49 Unit Price incl. VAT
16
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
17
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
18
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
19
WASHER
7556153
$3,66 Unit Price incl. VAT

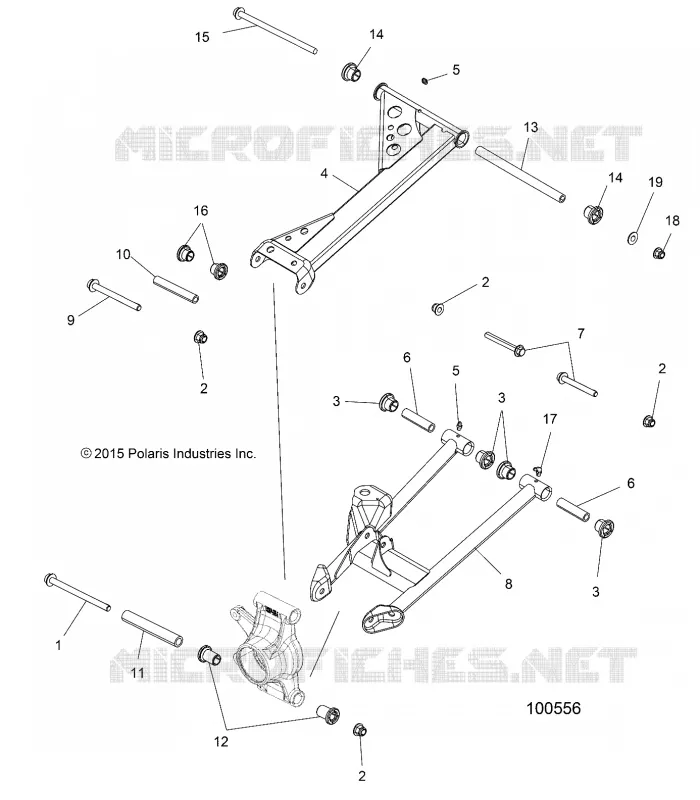

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
