1
Engine displacement
700
2
Year
2003
3
Trim
700 CLASSIC
4
Parts Catalog
OIL TANK/AIR BOX
5
Parts Diagram
Parts Catalog
CHAINCASE
by
DRIVE TRAIN
OIL TANK/AIR BOX
18
19
10
21
22
23
24
25
26
26
27
28
29
30
31
32
33
1
TOOL BOX COVER
5434089
9999999
Not Available
2
FOAM
5812209
9999999
Not Available
3
SCREW
7512297
$10,49 Unit Price incl. VAT
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
WELD-OIL BOTTLE/TOOL BOX W/MNT
1261199
9999999
Not Available
5
ASM-OIL TANK W/SENDER
1253453
9999999
Not Available
6
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
CLIP-J
7081069
9999999
Not Available
9
SCREW
7512095
$9,44 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
FITTING HOSE
7052127
9999999
Not Available
12
CLIP
7670102
$4,19 Unit Price incl. VAT
13
CHIMNEY FOAM
5811983
$36,74 Unit Price incl. VAT
14
DECAL CAUTION
7075351
9999999
Not Available
15
STRAP
5433150
$47,24 Unit Price incl. VAT
16
DECAL; GREASING
7073426
9999999
Not Available
17
ASM-AIR SILENCER
1253501
9999999
Not Available
18
Decal E/R Belt Rem/Sheave Adjust
7079934
Not Available
19
NUT WELL
7547103
$15,74 Unit Price incl. VAT
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
CLIP IGNITION CABLE
7080471
9999999
Not Available
22
WASHER
7552604
$3,14 Unit Price incl. VAT
23
SCREW
7517610
$3,14 Unit Price incl. VAT
24
SCREW
7511862
9999999
Not Available
25
CARBURETOR BOOT
5412157
9999999
Not Available
26
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
27
FUEL LINE; 1/4 ID
84500031525
Not Available
28
OIL SENDER WITH FRONT TERMINALS
4010660
$120,74 Unit Price incl. VAT
29
OIL SENDER GROMMET
7052305
$8,39 Unit Price incl. VAT
30
DECAL-OILVES
7079003
9999999
Not Available
31
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
32
BOLT
7512163
$7,34 Unit Price incl. VAT
33
VENTED OIL CAP CUSTOM COLOR
1240094
1244736
$68,24 Unit Price incl. VAT

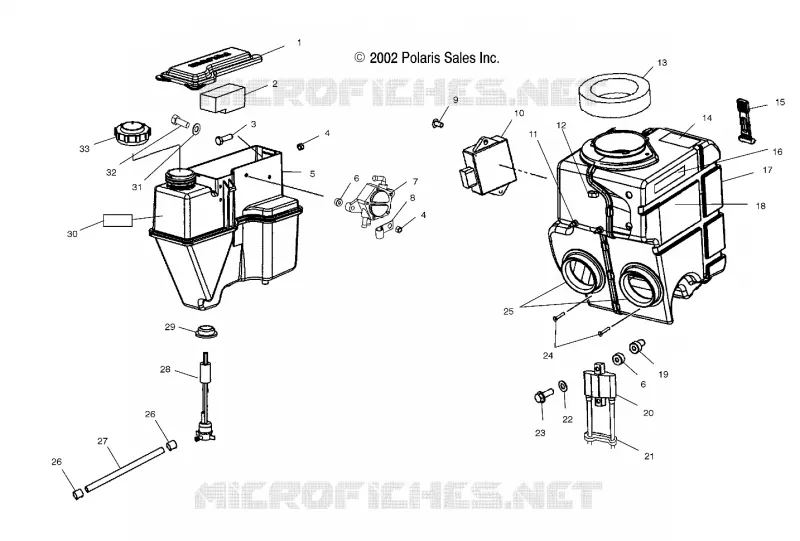

Find the detailed OIL TANK/AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
