1
Engine displacement
700
2
Year
2003
3
Trim
700 CLASSIC
4
Parts Catalog
STEERING HANDLEBAR
5
Parts Diagram
Parts Catalog
SKI
by
REAR SUSPENSION
STEERING HANDLEBAR
17
18
19
20
21
21
22
23
24
24
24
25
26
27
28
29
29
30
31
32
32
33
33
34
34
34
34
35
36
36
37
38
39
40
41
42
1
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
2
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
3
THROTTLE LEVER; 35.5 MM
5432970
$52,49 Unit Price incl. VAT
3
HEATER LEVER ASSEMBLY; HI/LO; 35.5 MM
2010171
$157,49 Unit Price incl. VAT
4
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
5
GRIP; HANDLEBAR
5432634
9999999
Not Available
6
PLUG
5431096
$3,66 Unit Price incl. VAT
7
ADAPTER-BLOCK THROTTLE
5433345
9999999
Not Available
8
HANDLEBAR; MEDIUM GLOSS BLACK
5243355067
Not Available
9
SCREW
7517238
$9,44 Unit Price incl. VAT
10
COLLAR-CONSOLE STD RH
5434488
9999999
Not Available
11
NUT-PUSH ON.170-.180-Y(10)
7670106
9999999
Not Available
12
EMBLEM-#STAR# PLM.BEZEL HNDLBR
5434179
Not Available
13
COVER-HANDLEBAR BLK
5433159070
Not Available
14
HANDLEBAR COVER SLIDE; GLOSS BLACK
5433160070
Not Available
15
NYLON DART CLIP
4010287
$7,34 Unit Price incl. VAT
16
COLLAR-CONSOLE STD LH
5434487
9999999
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
19
STEERING POST WELD MEDIUM GLOSS BLACK
1820965067
Not Available
20
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
21
BOLT-CARR 5/16-X1 GR5 Y LO
7517579
$11,54 Unit Price incl. VAT
22
HEATER; GRIP; LO/MED/HI
2460677
9999999
Not Available
23
WELD-HOOP STEERING BLK
1013804067
Not Available
24
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
25
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
26
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
27
RIVET
7621433
$2,09 Unit Price incl. VAT
28
PLATE TIE ROD BOOT
5244470
9999999
Not Available
29
TIE ROD BOOT LEFT
5433532
9999999
Not Available
29
TIE ROD BOOT; RIGHT
5433533
9999999
Not Available
30
PALNUT
7547030
$9,44 Unit Price incl. VAT
31
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
32
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
33
BUSHING
5432785
$11,54 Unit Price incl. VAT
34
STEERING POST BRACKET
5133648
9999999
Not Available
34
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
35
BRKT-CONSOLE FRONT NECK STD
5245354
9999999
Not Available
36
SCREW
7511848
$7,34 Unit Price incl. VAT
37
WIRE HOLDER
5432261
$47,24 Unit Price incl. VAT
38
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
39
SCREW SET
7512465
$7,34 Unit Price incl. VAT
40
WASHER (10)
7555727
9999999
Not Available
41
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
42
WASHER
7555730
$7,34 Unit Price incl. VAT

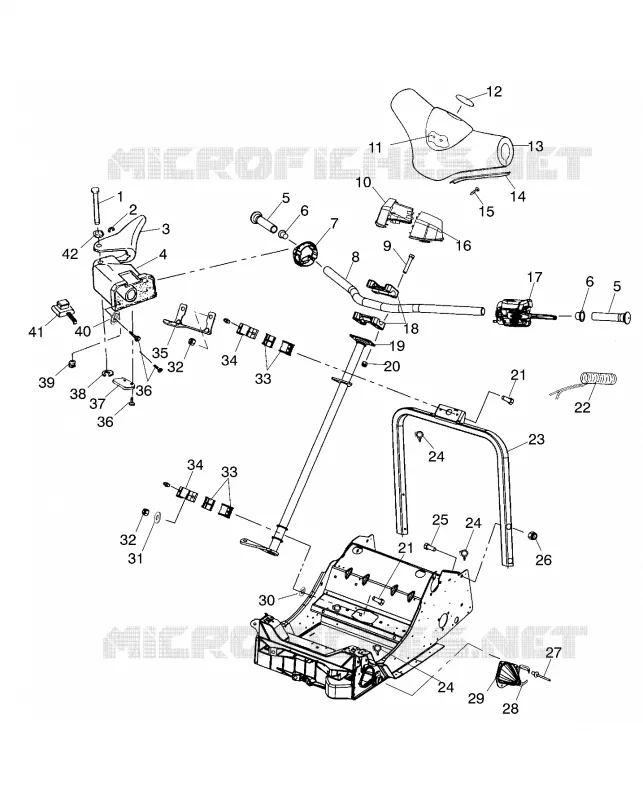

Find the detailed STEERING HANDLEBAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
