SUSPENSION, RAIL BEAM LH/RH for POLARIS 650 MATRYX VOYAGEUR 146 from 2022

SUSPENSION, RAIL BEAM LH/RH

1

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

2

WASHER

7556064

$9,44 Unit Price incl. VAT

3

RAIL TIP CAP

5452441

$26,24 Unit Price incl. VAT

4

SCR-TXTH-M6X1.0X25 8.8 ZPB

7520133

$6,29 Unit Price incl. VAT

5

SCREW

7512025

$9,44 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

7

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

8

BUMPER-JOUNCE FTA PROG

5522253

$16,79 Unit Price incl. VAT

9

HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM

7519908

7521331-70

$1,56 Unit Price incl. VAT

10

WSHR-M6 OFFSET 2.01 ZOD

7556799

$6,29 Unit Price incl. VAT

11

BEARING; .7874 X 1.6535 X .4724

3515142

$34,64 Unit Price incl. VAT

11

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

11

ASM-WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

12

SCREW

7517510

$9,44 Unit Price incl. VAT

13

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

14

WHEEL MOUNT BLOCK

5633278

$47,24 Unit Price incl. VAT

15

HOLLOW TALL BUMPER

5415327

$27,29 Unit Price incl. VAT

16

ASM-RAIL 146 PREM SVC LH NAT

1544456309

Not Available

16

ASM-RAIL 146 PREM SVC RH NAT

1544457309

Not Available

17

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

18

RIVET

7621501

$4,19 Unit Price incl. VAT

19

SPACER-IDLER ADJ ALUM

5141837

$13,64 Unit Price incl. VAT

20

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

21

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

22

SCREW

7510504

$10,49 Unit Price incl. VAT

23

SPRING ROLLER SHAFT

5136687

$19,94 Unit Price incl. VAT

24

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

25

PIN-CLEVIS 3/16X1 1/4

7661123

$7,34 Unit Price incl. VAT

26

HI-FAX-146 BLK

5526364070

Not Available

27

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

28

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

29

LINER-LOW PROFILE BUMPER

5451787

$12,59 Unit Price incl. VAT

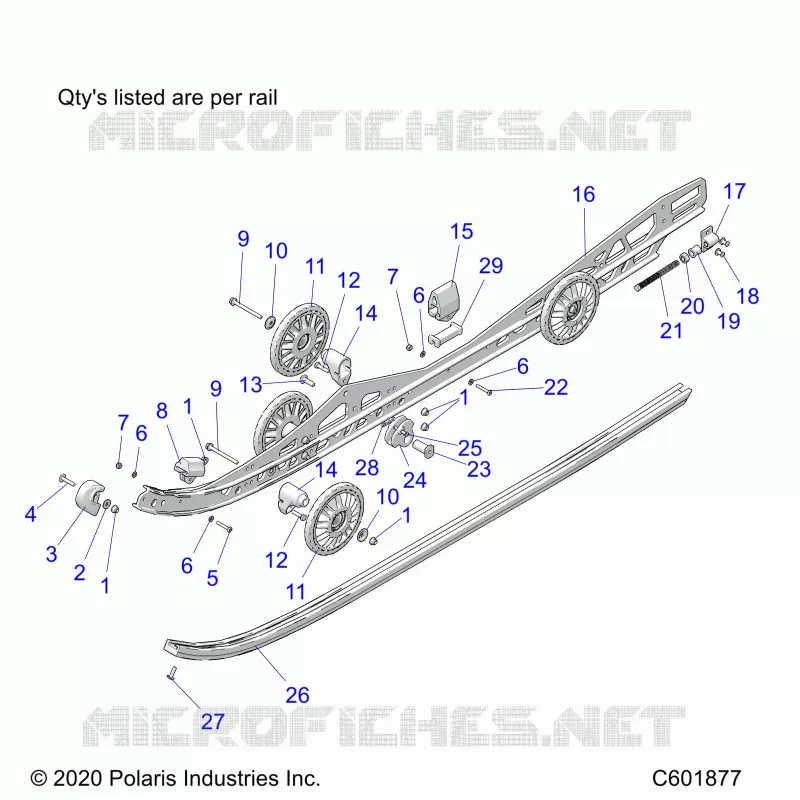

Find the detailed SUSPENSION, RAIL BEAM LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
