FRONT STRUT for POLARIS RANGER TM - A04RB63AA from 2004

FRONT STRUT

1

NUT

7547104

$2,09 Unit Price incl. VAT

2

WASHER

7555749

$2,09 Unit Price incl. VAT

3

SPACER RUBBER

5810291

$7,34 Unit Price incl. VAT

4

PIVOT BALL; TOP

5432872

$19,94 Unit Price incl. VAT

5

SPACER 1 2 20

5132062

$36,74 Unit Price incl. VAT

6

BALL BOTTOM PIVOT

5432871

$19,94 Unit Price incl. VAT

7

RETAINER SPRING

5243364

$36,74 Unit Price incl. VAT

8

SPRING-COMP 120/150UTV1500BK

7042238067

Not Available

9

BUMPER-MCU 17.80MM ID

5411608

5412665

$12,59 Unit Price incl. VAT

10

STRUT-FRONT

7042239

9999999

Not Available

11

WASHER

5211115

$7,34 Unit Price incl. VAT

12

CABLE CLAMP

7080367

$4,19 Unit Price incl. VAT

13

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

14

CAP SCREW

7512365

$2,09 Unit Price incl. VAT

15

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

16

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

17

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

18

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

19

INTERNAL RETAINING RING

7710507

$4,19 Unit Price incl. VAT

20

BEARING-AXLE TUBE/HUBSTRUT

3514342

3514634

$73,49 Unit Price incl. VAT

21

HUBSTRUT ASM;LH;VL

1820899

1822653

$572,24 Unit Price incl. VAT

21

HUBSTRUT ASM;RH;VL

1820901

9999999

Not Available

22

BOLT

7515339

$9,44 Unit Price incl. VAT

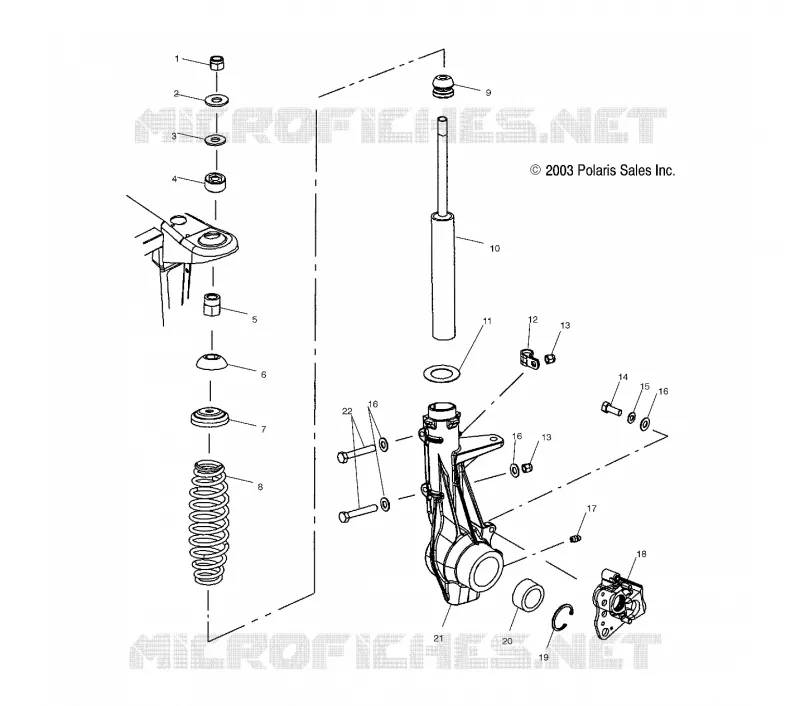

Find the detailed FRONT STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
