ENGINE, CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CRANKCASE
by
ENGINE, CYLINDER HEAD, CAM AND VALVES
ENGINE, CRANKSHAFT AND PISTON
1
2
2
3
3
4
4
4
6
7
8
8
8
8
8
9
1
CRANKSHAFT KIT; SPORTSMAN 952
2205143
$1 952,99 Unit Price incl. VAT
2
CON ROD KIT
2204634
$430,49 Unit Price incl. VAT
2
BUSHING-PISTON PIN 20MM
7556569
1205821
$430,49 Unit Price incl. VAT
3
PISTON KIT
2205145
$256,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT
7
CONROD BOLT; 9 MM X 1.0 MM
7519263
$31,49 Unit Price incl. VAT
8
BEARING CON ROD; MIDNIGHT BLUE
3514989027
Not Available
8
CON ROD BEARING RED
3514989015
Not Available
8
CONNECTING ROD BEARING; WHITE
3514989016
Not Available
8
CONNECTING ROD BEARING
3514989
9999999
Not Available
8
CON ROD BEARING; MEDIUM YELLOW
3514989053
Not Available
9
PISTON RINGS KIT; 90.5 MM
2205146
$128,09 Unit Price incl. VAT

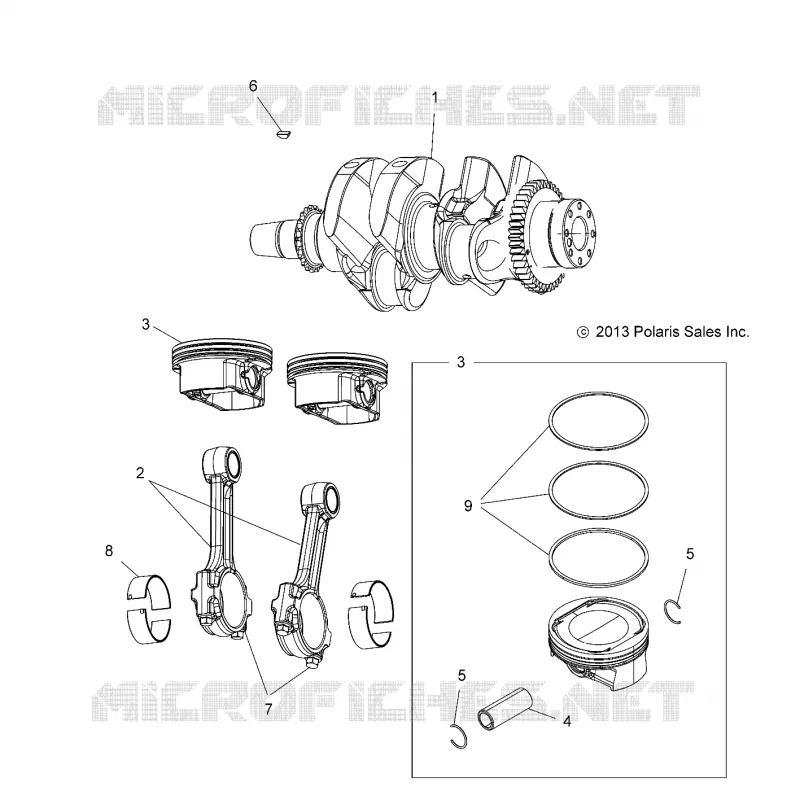

Find the detailed ENGINE, CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
