SHOCK (REAR TRACK)(M-10) for POLARIS 600 CLASSIC from 2004

SHOCK (REAR TRACK)(M-10)

-

SHOCK-REAR TRACKREZY-M-10

7042216

9990000

Not Available

1

ASM-RESERVIOR NON ADJUST 1.459

1500449

9990000

Not Available

2

SEAL-O-RING

1500450

9999999

Not Available

3

PISTON-FLOATING

1500187

9999999

Not Available

4

HOSE-14.00 TLG

1500445

9999999

Not Available

5

ENDCAP ASMRESERVOIR

1500163

9999999

Not Available

6

O-RING ENDCAP

1500003

9999999

Not Available

7

RESERVOIR

1500451

Not Available

8

RESERVOIR ENDCAP ASM.

1500160

9999999

Not Available

9

O-RING OUTER

1500023

9999999

Not Available

10

AIR VALVE ASSEMBLY

1500014

9999999

Not Available

11

Asm. Bearing (Incl. 13-20)

1500545

Not Available

12

O-RING; .103 X 1.299

1500020

9999999

Not Available

13

O-RING .103X.73ID

1500483

9999999

Not Available

14

RING-SNAP INTERNAL

1500486

9999999

Not Available

15

SCRAPER-FIST DELRIN

1500485

9999999

Not Available

16

O-RING 14MM IDX1 MM

1500484

9999999

Not Available

17

URETHANE U-CUP

1500266

$52,49 Unit Price incl. VAT

18

O-RING INNER

1500021

9999999

Not Available

19

BEARING-.5 IDX.5 TLG

1500488

9999999

Not Available

20

BEARING-RBC 003-10-000

1500444

1501035

$57,74 Unit Price incl. VAT

21

ASM-BODY CAP

1500448

9999999

Not Available

22

O-RING .103W-1.549ID

1500108

$15,74 Unit Price incl. VAT

23

BODY-6.825-TLG .58 THD L

1500446

9999999

Not Available

24

NUT LOCK

1500016

$23,09 Unit Price incl. VAT

25

PLATE BACKUP

1500015

9999999

Not Available

26

DAMPER; PISTON RING

1500002

9999999

Not Available

27

PLATE TOP OUT

1500017

9999999

Not Available

28

SHAFT-.498 X 7.525 TLG

1500447

9999999

Not Available

29

EYELET BASE

1500164

9999999

Not Available

30

SLEEVE .56 X .81 X 1.2

1500310

$40,94 Unit Price incl. VAT

31

BUSHING .35ILG .595TLG

1500309

9999999

Not Available

32

BUMPER JOUNCE

5410855

9999999

Not Available

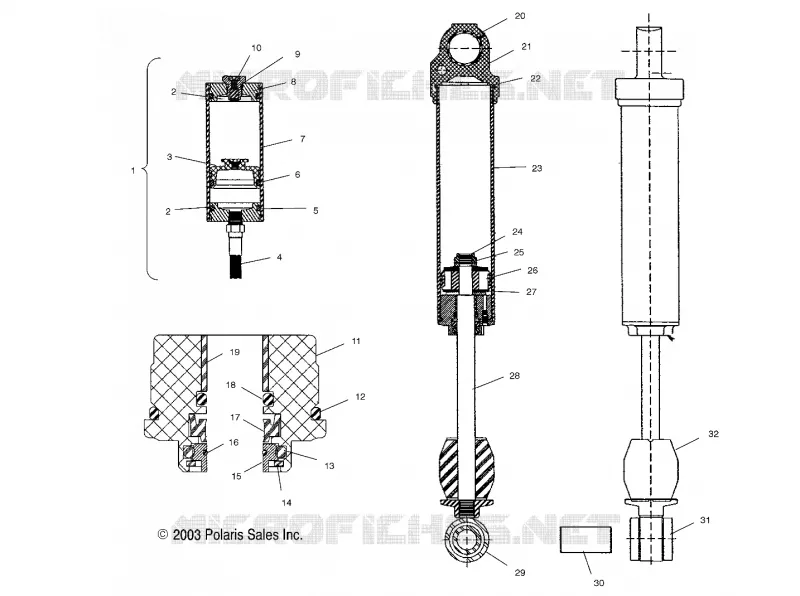

Find the detailed SHOCK (REAR TRACK)(M-10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
