ELECTRICAL/TAILLIGHT for POLARIS A04BA25CA TRAIL BLAZER - A04BA25CA/CB from 2004

ELECTRICAL/TAILLIGHT

1

FUSIBLE LINK KIT

2202147

9999999

Not Available

1

HARNESS-MAIN T BLAZER 250

2461222

9999999

Not Available

2

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

3

KIT CKT.BRKR 20 AMP

2200593

$125,99 Unit Price incl. VAT

4

ASM-TAILLIGHT 12V SERIES FIL

2410319

9999999

Not Available

5

SCREW

7512088

9999999

Not Available

6

LENS STOP&T/L.

4032085

9999999

Not Available

7

BULB (10)

4030043

$12,59 Unit Price incl. VAT

8

GASKET T/L&STOP/L

4032086

9999999

Not Available

9

BACKING (STOP&TAIL)

4032087

9999999

Not Available

10

CLIP; RETAINER(10)

7670093

9999999

Not Available

11

WASHER

7571602

$9,44 Unit Price incl. VAT

12

SCREW

7512027

$2,09 Unit Price incl. VAT

13

BATTERY PAD

5810290

5810290-CO

$13,64 Unit Price incl. VAT

14

BATTERY COVER

5431769

$29,39 Unit Price incl. VAT

15

KIT-BATTERY BOLT (SHORT)

2200361

9999999

Not Available

16

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

17

BATTERY STRAP HOOK

7010032

9999999

Not Available

18

BATTERY HOLD DOWN STRAP

5412499

5418182

$9,44 Unit Price incl. VAT

19

VENT TUBE

5432077

9999999

Not Available

19

CLAMP POLY

7080303

9999999

Not Available

20

14AH BATTERY; SEALED AND CHARGED

4010774

$178,49 Unit Price incl. VAT

21

CABLE BATT/SOLENOID RED

4010094

9999999

Not Available

22

SOLENOID TO START CABLE; DOUBLE BOOT

4010129

9999999

Not Available

23

NUT-#10-24 NYLOK INSERT

7518287

$6,29 Unit Price incl. VAT

24

BOLT

7512007

$7,34 Unit Price incl. VAT

25

REGULATOR RECTIFIER

4010996

9999999

Not Available

26

SCREW

7512024

$9,44 Unit Price incl. VAT

27

LIMITER-RPM 94 HZ LR491 W/CON

4010997

9999999

Not Available

28

ROSEBUD CLIP

4020149

$12,59 Unit Price incl. VAT

29

ROUTING CLIP

7670109

$4,19 Unit Price incl. VAT

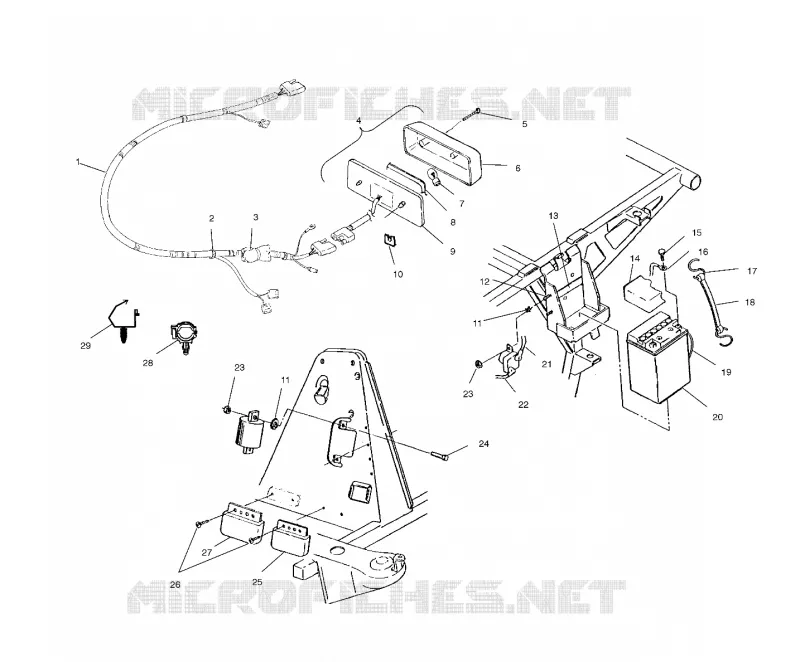

Find the detailed ELECTRICAL/TAILLIGHT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
