Parts Catalog
ELECTRICAL, IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, GPS HARNESS
by
ENGINE, AIR INTAKE
ELECTRICAL, IGNITION SYSTEM
1
TUBING-NYLON 5MMX144MM BLK
8360077
8360209
$27,29 Unit Price incl. VAT
2
FLYWHEEL-450W 165;SHINLIN
4014005
$727,64 Unit Price incl. VAT
3
SCR-10X1.00 TX PN HI/LO-Y
7518922
$6,29 Unit Price incl. VAT
4
BOLT-WATERPUMP DRIVE;LH
5137241
$68,24 Unit Price incl. VAT
5
SCR-M6X1.0X30 HX/SOC/CP-Y/D
7518544
7527860
$5,24 Unit Price incl. VAT
6
STATOR W/ GROMMET; 450 W
4014006
$561,74 Unit Price incl. VAT
7
SCR-M6X1.0X10 SHCS
7518765
7527859
$9,44 Unit Price incl. VAT
8
RETAINER-STATOR WIRE
5250018
9999999
Not Available
9
STATOR COVER GASKET
5813680
$73,49 Unit Price incl. VAT
10
FITTING-6MM BRASS
7052463
$17,84 Unit Price incl. VAT
11
SPARK PLUG; 12 MM
3022553
9999999
Not Available
12
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
13
SPARKPLUG WIRE
4013327
$99,74 Unit Price incl. VAT
14
SPARKPLUG WIRE; PTO SIDE
4013328
$115,49 Unit Price incl. VAT
15
COIL-EFI
4010425
2876049
$451,49 Unit Price incl. VAT

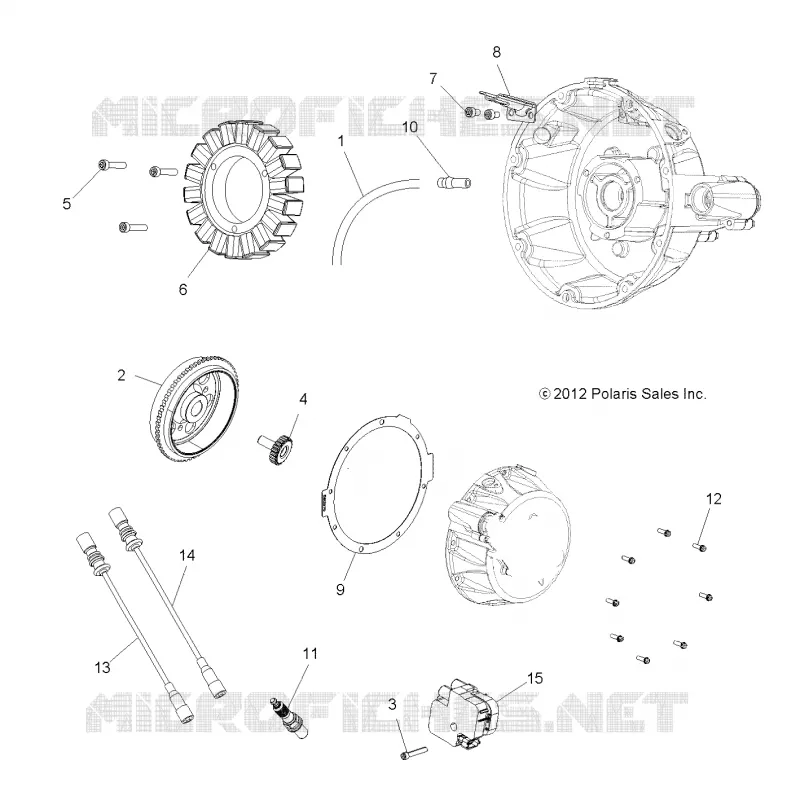

Find the detailed ELECTRICAL, IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN TOURING 1000
