ENGINE MOUNTING for POLARIS A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW from 2004

ENGINE MOUNTING

1

FUEL PUMP

2520227

$146,99 Unit Price incl. VAT

2

SCREW M5X0.8X10 PHPN ZY L/W SE

7517867

$3,14 Unit Price incl. VAT

3

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

4

NYLOK NUT

7546601

$2,09 Unit Price incl. VAT

5

WELL NUT

7541923

$10,49 Unit Price incl. VAT

6

STRAP-FUEL PUMPMTGCONSOL PLT

5243829

9999999

Not Available

7

BOLT

7512329

$7,34 Unit Price incl. VAT

8

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

9

Line Fuel

8450103600

Not Available

10

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

11

Sheath Foil

845008050

Not Available

12

KIT-SHORT BLOCK 600 ATV

2202697

9990000

Not Available

13

WASHER

7555770

7558402

$1,56 Unit Price incl. VAT

14

CABLE GND-ENGINE

4010132

9999999

Not Available

15

SCREW

7517386

$2,09 Unit Price incl. VAT

16

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

17

HOSE-FORMED VENT

5412287

9999999

Not Available

18

CARBURETOR PLATE MOUNT BRACKET

5247141

9999999

Not Available

19

HEX NUT

7542105

$7,34 Unit Price incl. VAT

20

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

21

WASHER

7558203

$6,29 Unit Price incl. VAT

22

MOUNT CARBURETOR

3110050

$19,94 Unit Price incl. VAT

23

VALVE CHECK

7051011

9999999

Not Available

24

SCREW H.H.CAP

7516714

$7,34 Unit Price incl. VAT

25

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

26

NUT

7547108

$9,44 Unit Price incl. VAT

27

BRKT MNT ENGINE TOP BLK

5244622067

Not Available

27

BRKT-MNT ENGINE TOP PLTD

5247368

9999999

Not Available

28

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

29

BOLT-M6X1.0X30 HXHD SEMS L/WZY

7517868

9999999

Not Available

30

CABLE-BLACK 25

4010470

9999999

Not Available

31

BOOT CLTCH INTAKE 2.25I.D.

5411944

9999999

Not Available

32

CLAMP HOSE S.S.(10)

7080451

$13,64 Unit Price incl. VAT

33

MOUNT RUBBER REAR 60 DURO

3021119

9999999

Not Available

34

BOLT 7/16X20X8

7518197

7519287

$52,49 Unit Price incl. VAT

35

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

36

WASHER

5210748

$7,34 Unit Price incl. VAT

37

BUSHING

5430261

$13,64 Unit Price incl. VAT

38

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

39

SCREW

7512492

$2,09 Unit Price incl. VAT

40

MOUNT RUBBER TOP

3110044

3024012

$83,99 Unit Price incl. VAT

41

ENGINE MOUNT; LOWER; FRONT; GS BLK

5244771067

Not Available

42

WASHER

7555823

$7,34 Unit Price incl. VAT

43

BRKT-TORQUE STOP;BLK

5245043067

Not Available

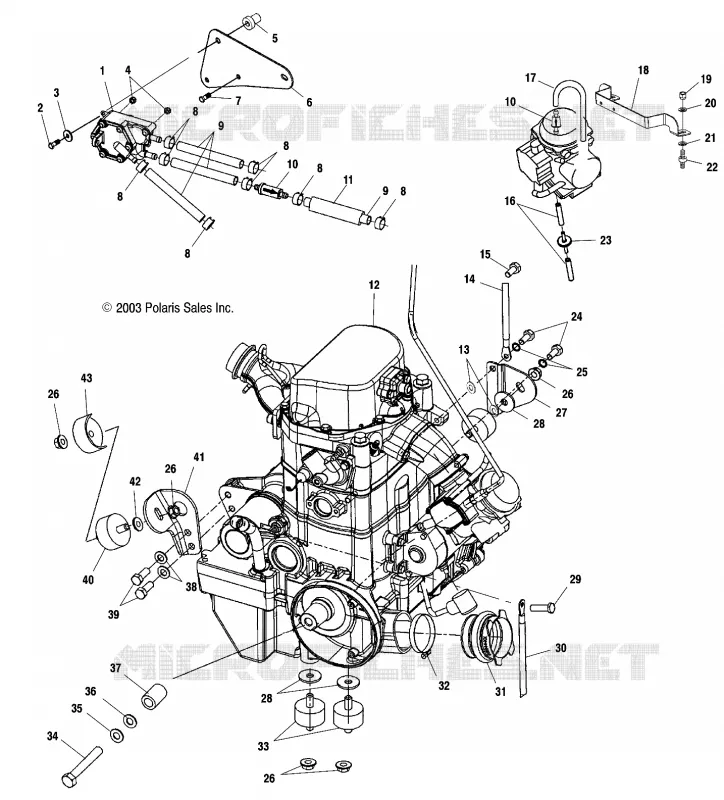

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
