1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN TOURING 500 EFI - A08DN50AF/AS/AW/AZ
4
Parts Catalog
FUEL TANK ASM. (BUILT 8/21/07 AND AFTER)
5
Parts Diagram
Parts Catalog
FRONT STORAGE BOX
by
HEADLIGHT POD
FUEL TANK ASM. (BUILT 8/21/07 AND AFTER)
1
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
ASM-FUEL TANKX2
2520875
9999999
Not Available
1
FUEL PUMP KIT
2204308
9999999
Not Available
2
FUEL LINE W/ FILTER AND TRAIL ASM TREK
2520551
9999999
Not Available
3
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
4
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
5
SCREW
7517219
$9,44 Unit Price incl. VAT
6
BRKT-FUEL COVER MT RH;PLTD
5247185
9999999
Not Available
6
BRKT-FUEL COVER MT LHPLTD
5247184
9999999
Not Available
7
FOAM SEAL 12 IN
5812265
9999999
Not Available
8
CAP GAS TANK
5433687
5450389
$36,74 Unit Price incl. VAT
9
FOIL-FUEL TANK;TREK
5813024
9999999
Not Available
10
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
11
ASM-FUEL LINE;TANK-FILTER;SNGL
2520791
9999999
Not Available
12
BOLT
7512232
$2,09 Unit Price incl. VAT
13
MOUNT-FUEL FILTER
5436013
9999999
Not Available
14
FUEL FILTER
2520464
$83,99 Unit Price incl. VAT
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
GROMMET-ELEC SHOCK WIRE;SLIT
5413317
$5,24 Unit Price incl. VAT
17
GASKET
5812123
$10,49 Unit Price incl. VAT
18
FITTING TEE
7052048
$7,34 Unit Price incl. VAT
19
VALVE CHECK
7051011
9999999
Not Available
20
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
21
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT

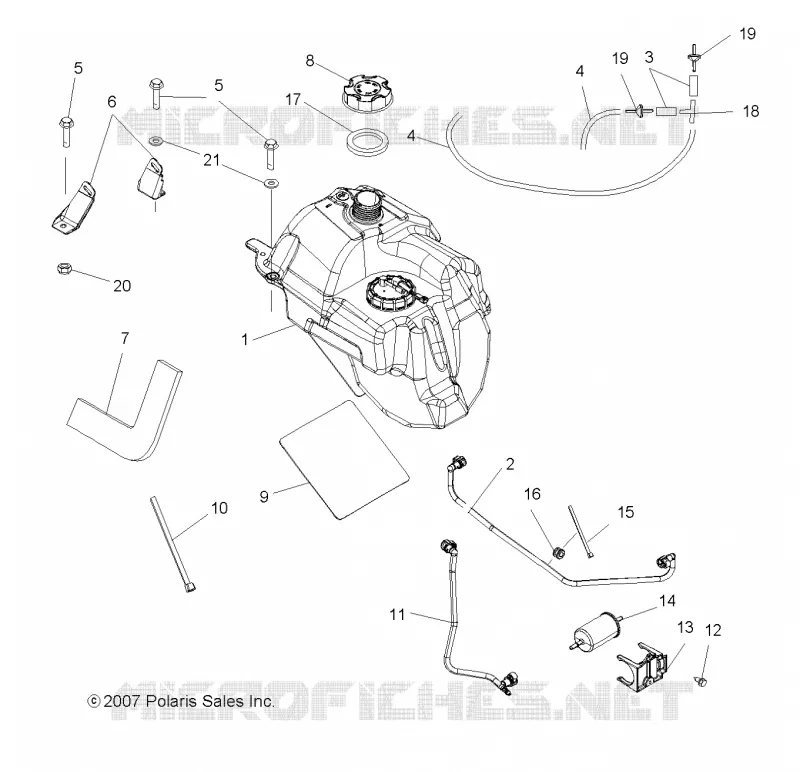

Find the detailed FUEL TANK ASM. (BUILT 8/21/07 AND AFTER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
