1
Engine displacement
550
2
Year
2013
3
Trim
SPORTSMAN TOURING 550 EPS INTL - A13DN5EFL
4
Parts Catalog
REAR SHOCK
5
Parts Diagram
Parts Catalog
FRONT SHOCK
by
STABILIZER BAR
REAR SHOCK
1
2
3
3
4
5
6
7
1
2
2
3
3
4
5
6
7
1
SHOCK; REAR; 510.4 MM
7043463
$230,99 Unit Price incl. VAT
2
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
3
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
4
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
5
SPRING-COMP 110-220 DUAL D BLK
7043815067
Not Available
6
CAM ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
7
HEAD BOLT 10MM X 1.50MM X60MM
7518826
$9,44 Unit Price incl. VAT

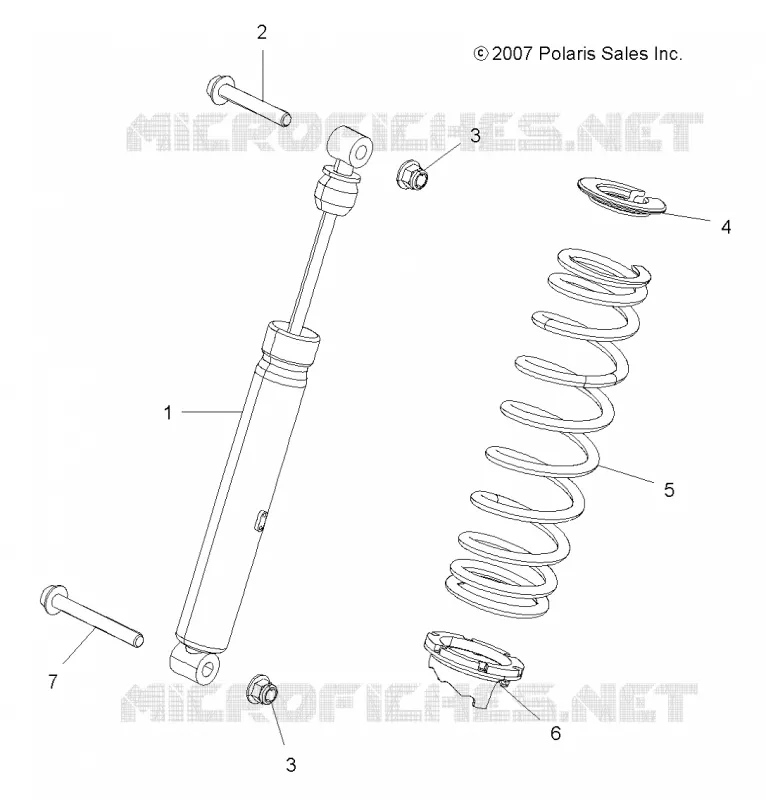

Find the detailed REAR SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
