REAR SUSPENSION for POLARIS SPORTSMAN 1000 XP ZUG from 2018

REAR SUSPENSION

1

HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM

7518467

$10,49 Unit Price incl. VAT

2

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

3

STANDARD SUSPENSION BUSHING; 10 MM

5452233

$5,24 Unit Price incl. VAT

4

WELD-UCA SEAL REAR RH INDY RED

1023471293

Not Available

4

WELD-UCA SEAL REAR LH INDY RED

1023470293

Not Available

5

WASHER

7556153

$3,66 Unit Price incl. VAT

6

SHAFT-PIVOT SHORT M10 43MM

5141292

$8,39 Unit Price incl. VAT

7

BOLT 10 MM X 1.5 MM X 85

7518466

$9,44 Unit Price incl. VAT

8

WELD-LCA SEAL REAR LH INDY RED

1023459293

Not Available

8

ASM-LCA SEAL REAR RH INDY RED

1544013293

Not Available

9

HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM

7518675

$10,49 Unit Price incl. VAT

10

PIVOT SHAFT; 104.9 MM

5137590

$16,79 Unit Price incl. VAT

11

LOWER CONTROL ARM A ARM SHAFT

5136473

5145086

$68,24 Unit Price incl. VAT

12

CONTROL ARM BUSHING; LOWER; .75 IN

5437651

$12,59 Unit Price incl. VAT

13

SHAFT-PIVOT 190MM M10

5141510

$52,49 Unit Price incl. VAT

14

SEALED PIVOT CAP ASSEMBLY; 10 MM

1543611

$10,49 Unit Price incl. VAT

15

HEX FLANGE SCREW 10MM X 1.25MM X 235MM

7519086

$52,49 Unit Price incl. VAT

16

STANDARD BUSHING; ORV

5439874

$4,19 Unit Price incl. VAT

17

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

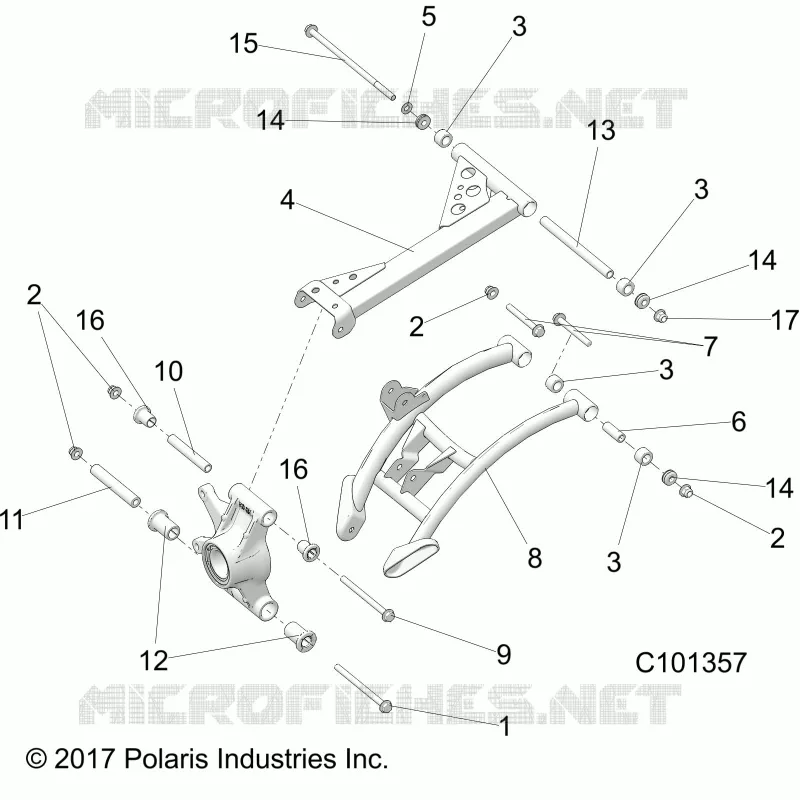

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 1000 XP ZUG

DECALS

FOOTWELLS

HEADLIGHT POD

REAR BODYWORK BUMPER

BRAKE LINES

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

DRIVE TRAIN, DRIVE SHAFT, FRONT

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, REAR GEARCASE INTERNALS

ELECTRICAL, BATTERY

ELECTRICAL, SWITCHES, SENSORS, ECU AND CONTROL MODULES

ELECTRICAL, TURN SIGNALS

BALANCE SHAFT

CRANKCASE

ENGINE, CYLINDER HEAD, CAM AND VALVES

ENGINE, THROTTLE BODY

WINCH

FRONT SUSPENSION A-ARMS

FRONT CAB

BODY, FRONT MUD GUARDS

FRONT RACK

FUEL TANK

BRAKES, REAR CALIPER

BRAKES, VALVE SYSTEM

CHASSIS, BULKHEAD AND FRONT CAB SUPPORT

CHASSIS, MAIN FRAME

DRIVE TRAIN, DRIVE COUPLER

ELECTRICAL, GAUGES AND INDICATORS

ELECTRICAL, HARNESS

ELECTRICAL, HEADLIGHTS

ELECTRICAL, IGNITION SYSTEM

ENGINE, FUEL RAIL CLAMP

LONG BLOCK

ENGINE, MOUNTING AND TRANSMISSION MOUNTING

ENGINE, OIL SYSTEM

TOOL KIT

WHEELS, FRONT AND HUB

WHEELS, REAR AND HUB

DRIVE TRAIN, FRONT GEARCASE INTERNALS

FENDER FLARES

FRONT BUMPER AND MOUNTING

BODYWORK

MIRRORSS

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

FRONT BRAKE CALIPER

DRIVE TRAIN, DRIVE REAR SHAFT

DRIVE TRAIN, GEARCASE MOUNTING, FRONT

DRIVE TRAIN, PROP SHAFT, REAR

DRIVE TRAIN, SECONDARY CLUTCH

ELECTRICAL, TAILLIGHTS

ENGINE, AIR INTAKE

ENGINE, CRANKSHAFT AND PISTON

EXHAUST

STARTING SYSTEM

ENGINE, VALVE COVER

REAR SUSPENSION

SUSPENSION, REAR SHOCK

ELECTRICAL, FOG LAMP AND FRONT REGISTRATION PLATE

SUSPENSION, FRONT SHOCK

STABILIZER BAR

CHASSIS, HITCH

BODY, CLUTCH COVER

REAR BODYWORK CAB

REAR BODYWORK RACK

SEAT

SKID PLATES

DRIVE TRAIN, GEARCASE MOUNTING, REAR

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PROP SHAFT, FRONT

CAM CHAIN AND TENSIONER

COOLING BYPASS

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM AND WATER PUMP

REFERENCE, OWNERS MANUAL

STEERING, CONTROLS, THROTTLE ASM.

STEERING, HANDLEBAR CONTROLS

STEERING, STEERING POST ASM.

POLARIS SPORTSMAN 1000 XP ZUG 2018

SPORTSMAN 1000 XP ZUG

SPORTSMAN 1000 XP ZUG

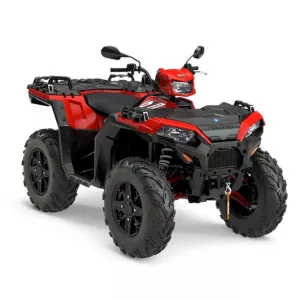

Model : SPORTSMAN 1000 XP ZUG
