1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
CONDUIT CONVOLUTED
4010051
9999999
Not Available
7
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC58PL-09 [No Longer Available]
3085355
Not Available
9
WELL NUT
7541923
$10,49 Unit Price incl. VAT
10
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
13
WASHER
7555740
$3,14 Unit Price incl. VAT
14
MOUNT ENGINE
5410390
9999999
Not Available
15
PLATE ENGINE LH
5242507
Not Available
15
PLATE ENGINE RH
5242508
Not Available
16
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
17
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
18
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
19
BOLT
7512575
9999999
Not Available
20
ENGINE MOUNT
3110061
9999999
Not Available
21
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
22
NUT HEX
7542414
$9,44 Unit Price incl. VAT
23
LIMITER
1011503067
Not Available
24
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
25
STOP TORQUE COARSE
3110056
Not Available
26
SCREW
7512530
$10,49 Unit Price incl. VAT
27
SPACER (MTR.MT.)
5332778
9999999
Not Available
28
SCREW(10)
7512222
9999999
Not Available
29
WASHER
7552604
$3,14 Unit Price incl. VAT
30
HANDLE RECOIL
5431499
9999999
Not Available
31
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
32
THROTTLE CABLE W/ OIL
7080543
9999999
Not Available
33
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
34
FUEL LINE; 600 CM
8450040600
Not Available
35
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
36
CONDUIT (6 CM.) CONVOLUTED Substituted by 8360049-153
836004906
Not Available
37
FILTER-FUEL WHITE
2520156
9999999
Not Available
37
FILTER FUEL TRANSPARENT
2530030
9999999
Not Available
38
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
39
VALVE FUEL SHUT-OFF
7052060
9999999
Not Available
40
FUELLINE MARINE/SNO 1525CM
84500791525
Not Available

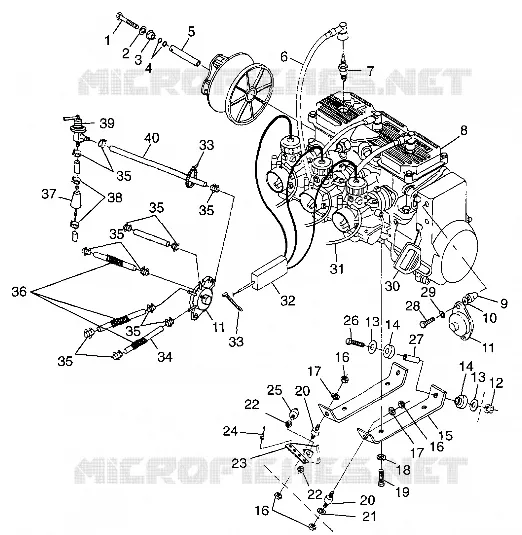

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
