BRAKE CHAINCASE TRAIL UPDATED 2/90 (4916831683013A) for POLARIS TRAIL

STEERING TRAIL (4916831683011A)

SUSPENSION TRAIL (4916831683015A)

CASTING-CARRIER

1930570

Not Available

NUT

1930558

Not Available

BUSHING

1930559

9999999

Not Available

BRACKET (Sport Trail 400)

1930560

Not Available

BOLT-BRIDGE

1930561

Not Available

BRAKE PAD; INDIVIDUAL

1930569

9999999

Not Available

LINE-BRAKE [No Longer Available]

5420114

Not Available

CONNECTOR

5020371

9999999

Not Available

ELBOW-FEMALE

7052034

9999999

Not Available

PISTON

1930568

Not Available

SEAL-PISTON

1930567

9999999

Not Available

CALIPER ASM BRAKE Substituted by 1930556

1930566

Not Available

SWITCH-STOPLIGHT

4110046

9999999

Not Available

O RING

5410565

9999999

Not Available

PIN PAD RETAINING

1930563

Not Available

CLIP-SPRING

1930562

Not Available

STAND-OFF C/C COVER

5333033

Not Available

BOLT; S.S.(10)

7512293

9999999

Not Available

DRIVE SHAFT ASM (75 76 77)

1590198

Not Available

CALIPER ASM; BRAKE

1930556

9999999

Not Available

SCREW-BLEEDER

1930564

Not Available

O-RING;CHAINCASE

5410401

9999999

Not Available

BUSHING

7556509

$3,14 Unit Price incl. VAT

WASHER

7555725

9999999

Not Available

SPEEDO METAL BUSHING

3280019

$20,99 Unit Price incl. VAT

SPROCKET 9T

5430571

9999999

Not Available

DRIVE SHAFT

5020388

9999999

Not Available

BOLT CARRIAGE

7512331

$7,34 Unit Price incl. VAT

BOLT

7515301

9999999

Not Available

WASHER FLAT

7555701

$7,34 Unit Price incl. VAT

WASHER FLAT(10)

7555734

$1,56 Unit Price incl. VAT

SPACER

5020291

9999999

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

SNOWMOBILE DRIVE BELT

3211042

$141,21 Unit Price incl. VAT

BOLT

7512394

7512377

$9,44 Unit Price incl. VAT

NUT FLANGE

7542423

$7,34 Unit Price incl. VAT

FLANGETTE

5221172

9999999

Not Available

BEARING

3514501

9999999

Not Available

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

KEY-SQUARE

7721204

9999999

Not Available

SHAFT-INPUT

5020323

5020323-067

Not Available

KEY (10)

7727003

9999999

Not Available

RING RETAINING

7713901

9999999

Not Available

DISC BRAKE ASM

1332091

9999999

Not Available

COVER CHAINCASE

5223775

5222579

Not Available

BOLT

7512246

9999999

Not Available

PLUG RUBBER-HOLE .5DIA

5410012

9999999

Not Available

SCREW

7511909

9999999

Not Available

WASHER FLAT

7558201

$9,44 Unit Price incl. VAT

NUT-WELL

7541918

9999999

Not Available

CHAINCASE GASKET

5410277

9999999

Not Available

BOLT

7512325

$4,19 Unit Price incl. VAT

WASHER SHAKEPROOF 5/16

7577902

Not Available

TIGHTENER ASM.

1332078

9999999

Not Available

SPROCKET 21 T

3221035

9999999

Not Available

CHAIN 64 PITCH 11W

3224023

9999999

Not Available

SPROCKET 35 T11W

3222036

9999999

Not Available

SPACER

5010128

9999999

Not Available

RETAINING RING

7718406

$11,54 Unit Price incl. VAT

CHAINCASE BEARING

3514305

$34,64 Unit Price incl. VAT

SCREW

7512470

9999999

Not Available

NUT

7542404

$3,14 Unit Price incl. VAT

BOLT CARRIAGE

7515428

9999999

Not Available

SPACER DISK BRAKE

5020430

9999999

Not Available

CHAINCASE

5130739

9999999

Not Available

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

BOLT

7512240

9999999

Not Available

SCREW; CARRIAGE

7515477

9999999

Not Available

CAP STUD COVER

5020569

9999999

Not Available

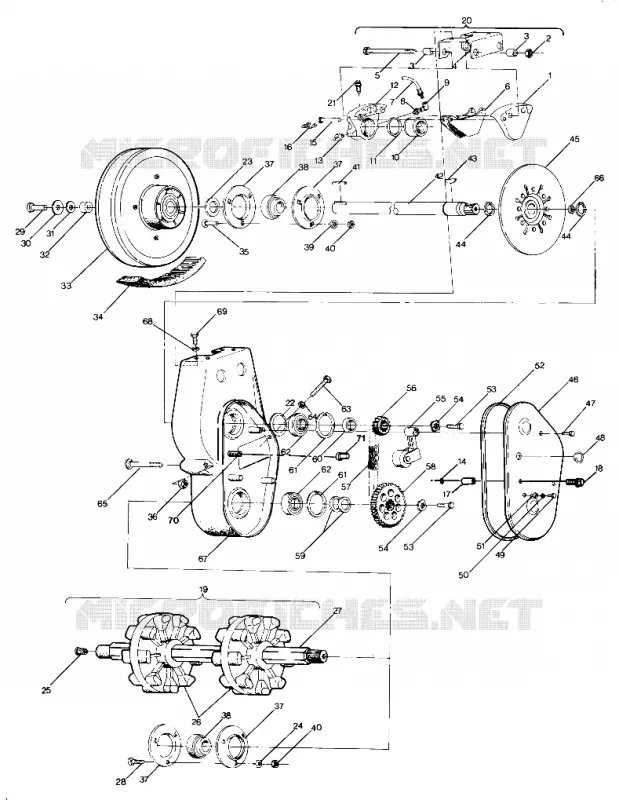

Find the detailed BRAKE CHAINCASE TRAIL UPDATED 2/90 (4916831683013A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
