STEERING ASSEMBLY 6X6 UPDATED 2-91 (4919811981011A) for POLARIS BIG BOSS 6X6

FRONT STRUT ASSEMBLY 6X6 UPDATE 2-91 (4919811981010A)

FRONT WHEEL ASSEMBLY UPDATED 2-91 6X6 (4919811981017A)

PAD; HANDLEBAR

5810379

9999999

Not Available

BOLT

7512286

7515197

$2,09 Unit Price incl. VAT

MOUNT HDLBR. PAD

5220946

9999999

Not Available

BLOCK HANDLEBAR

5630187

9999999

Not Available

TUBE HANDLEBAR

5224316132

Not Available

POST STEERING Substituted by 1843030-067

1843030

Not Available

BUSHING STRG. UPPER

5430966

5433416

$16,79 Unit Price incl. VAT

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

BUSHING UPPER STRG.

5220887

5257028

$62,99 Unit Price incl. VAT

TIE ROD ASM. Substituted by 1822310

1822081

Not Available

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

NUT CASTLE(10)

7546904

9999999

Not Available

HUB STRUT ASM LH (Incl. 6 18 20 23 24)

1843033

Not Available

HUB STRUT ASM RH (Incl. 6 18 20 23 24)

1843034

Not Available

BALL JOINT

7080364

7061306

$52,49 Unit Price incl. VAT

BALL JOINT BRACKET

5211121

$62,99 Unit Price incl. VAT

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

BOLT(10)

7515458

7512492

$2,09 Unit Price incl. VAT

O RING

5410458

9999999

Not Available

BEARING A ARM

3576509

9999999

Not Available

WASHER

7555774

9999999

Not Available

A FRAME LH

1580033

9999999

Not Available

A FRAME; RH

1580034

9999999

Not Available

SHAFT A-ARM

5020529

9999999

Not Available

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

BUSHING

7555781

9999999

Not Available

BUSHING STRG. LOWER

5430895

9999999

Not Available

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

RIVET; (MONOBOLT)

7661620

7661637

$2,09 Unit Price incl. VAT

SCREW

7512307

$7,34 Unit Price incl. VAT

BRKT;IGN.PANEL

5220965

9999999

Not Available

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

GRIP; HANDLEBAR

5431030

5433834-070

$52,49 Unit Price incl. VAT

BOLT

7512265

9999999

Not Available

TIE ROD

5020528

9999999

Not Available

ROD END; RH

7060149

9999999

Not Available

ROD END

7060147

9999999

Not Available

NUT HEX RH(10)

7542401

$4,19 Unit Price incl. VAT

NUT LH 10 MM.

7546902

9999999

Not Available

BOOT; RUBBER

5410548

5412658

$9,44 Unit Price incl. VAT

DECAL O#RIDE SWITCH Substituted by 7076273

7073162

Not Available

BOLT

7515512

9999999

Not Available

SCREW

7512017

9999999

Not Available

FLEXLOC NUT

7542411

$6,29 Unit Price incl. VAT

ROD END SEAL BOOT

5410540

9999999

Not Available

SHIELD RH CV JOINT

5431149

9999999

Not Available

SHIELD LH CV JOINT

5431150

9999999

Not Available

SHAFT DRIVE (6X6)

1380044

9999999

Not Available

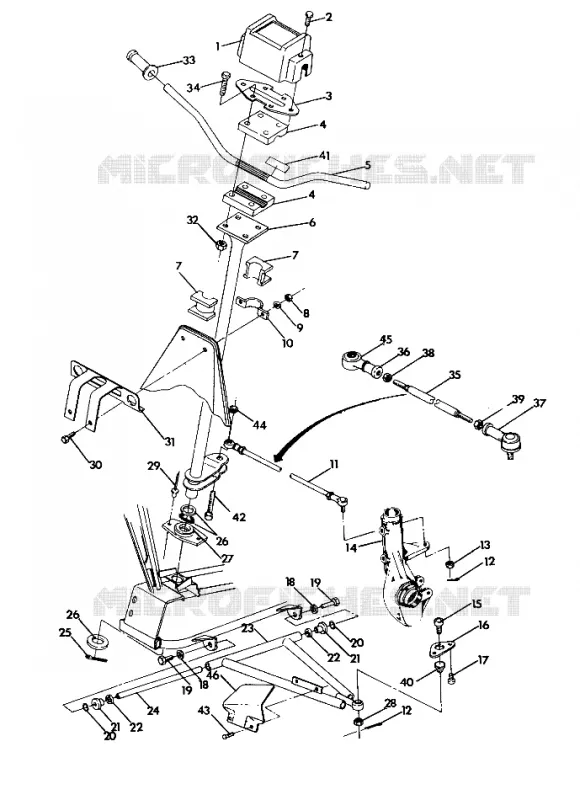

Find the detailed STEERING ASSEMBLY 6X6 UPDATED 2-91 (4919811981011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
