1
Engine displacement
900
2
Year
2015
3
Trim
RANGER XP 900 EU
4
Parts Catalog
DRIVE TRAIN, CLUTCH, SECONDARY
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME
by
DRIVE TRAIN, FRONT GEARCASE MOUNTING
DRIVE TRAIN, CLUTCH, SECONDARY
1
1
2
3
4
5
6
7
8
9
10
11
1
DRIVEN CLUTCH ASSEMBLY
1323246
$871,49 Unit Price incl. VAT
2
ORV DRIVE BELT
3211149
$236,24 Unit Price incl. VAT
3
HEX FLANGE BOLT OLIVE 10MMX1.25MMX60MM
7519210
$3,14 Unit Price incl. VAT
4
FLAT WASHER
7555846
$10,49 Unit Price incl. VAT
5
SECONDARY CLUTCH ROLLER
5439831
$68,24 Unit Price incl. VAT
6
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
7
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
8
CLUTCH SPRING
7044317
$173,24 Unit Price incl. VAT
9
CUP-SPRING BOSS LW UTILITY
5256403
$83,99 Unit Price incl. VAT
10
SCR-TORX M6X1.0X16
7519735
$17,84 Unit Price incl. VAT
11
THRUST WASHER
7556745
$10,49 Unit Price incl. VAT

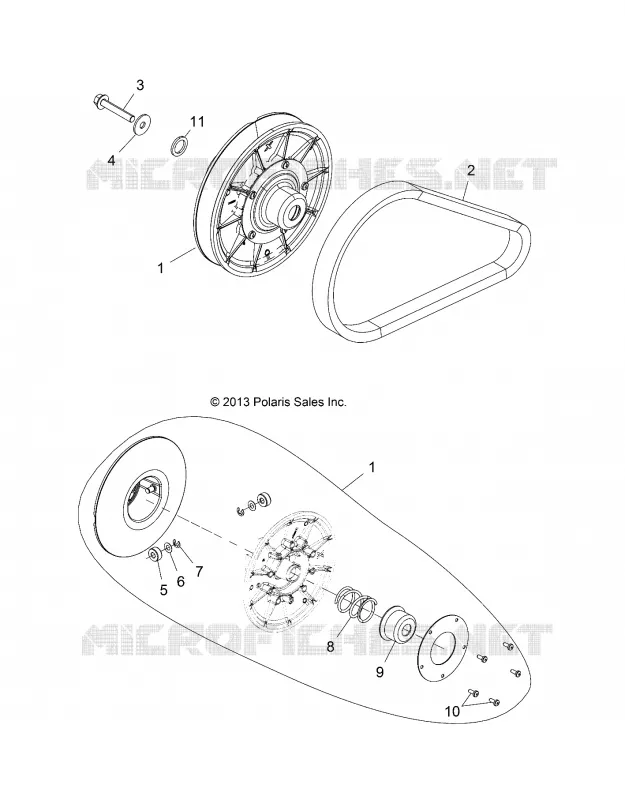

Find the detailed DRIVE TRAIN, CLUTCH, SECONDARY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
