ENGINE, THROTTLE CONTROL ASM. for POLARIS 850 PATRIOT INDY XC 129 from 2024

ENGINE, THROTTLE CONTROL ASM.

1

RETAINING PIN

7661624

$23,09 Unit Price incl. VAT

2

WASHER

7555730

$7,34 Unit Price incl. VAT

3

RETAINING RING

7710401

$7,34 Unit Price incl. VAT

4

ASM-LEVER HTR PWM 35.5MM

2010492

$173,24 Unit Price incl. VAT

5

THROTTLE BLOCK; UPPER

5450861

$73,49 Unit Price incl. VAT

6

THROTTLE COVER

5450862

$19,94 Unit Price incl. VAT

7

SCREW

7511848

$7,34 Unit Price incl. VAT

8

THROTTLE LOWER BLOCK

5450836

$47,24 Unit Price incl. VAT

9

SOCKET HEAD SCREW SET 8MM X 1.25MM X 8MM

7519755

$4,19 Unit Price incl. VAT

10

CABLE-THROTTLE

7082857

$115,49 Unit Price incl. VAT

11

RETAINING RING

7710503

$7,34 Unit Price incl. VAT

12

CONVLUTED TUBING; 38 CM

836005638

Not Available

13

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

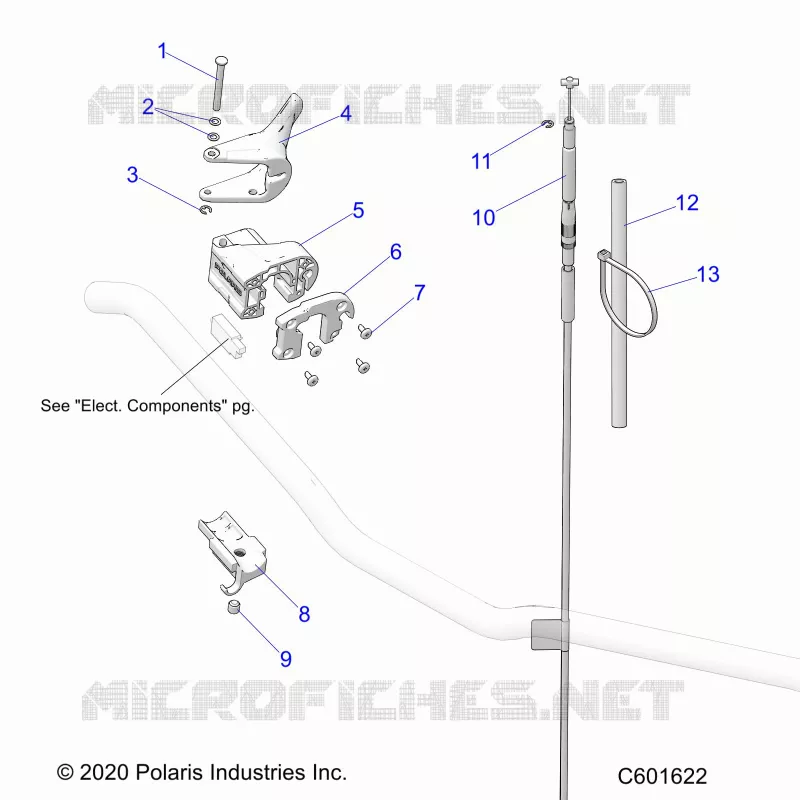

Find the detailed ENGINE, THROTTLE CONTROL ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
