1
NUT LOCK
7542403
9999999
Not Available
2
WASHER
7555801
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
9999999
Not Available
4
MOUNT MOTOR
3110026
9999999
Not Available
5
MOUNT ENG TOP BLK
5241453067
Not Available
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
BOLT
7512315
$9,44 Unit Price incl. VAT
8
FUEL LINE; 600 CM
8450040600
Not Available
9
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
10
CABLE;THROTTLE
7080711
9999999
Not Available
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
CHOKE CABLE
7080712
9999999
Not Available
14
SOLENOID TO START CABLE; DOUBLE BOOT
4010129
9999999
Not Available
15
FLANGE NUT
3083649
9999999
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
CLAMP
7080603
$3,14 Unit Price incl. VAT
18
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
19
CABLE GND BATT/ENG/CHASSIS
4010133
9999999
Not Available
20
BOLT AND WASHER ASSEMBLY
3082038
9999999
Not Available
21
BOLT
7512566
9999999
Not Available
22
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
23
WASHER
5210748
$7,34 Unit Price incl. VAT
24
BUSHING
5430261
$13,64 Unit Price incl. VAT
25
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
26
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
27
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
28
NUT
7547108
$9,44 Unit Price incl. VAT
29
HOSEWATER305 CM.
8450050305
Not Available
30
ENG.(S.B.)EH50PLE-01
3085556
9990000
Not Available
31
HOSE CLAMP
7080807
$17,84 Unit Price incl. VAT
32
PUMP FUEL (12V 1-4 PSI.)
4170020
4011545
$600,06 Unit Price incl. VAT
33
SCREW
7512017
9999999
Not Available
34
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
35
MANIFOLD BLK
1260842029
Not Available
36
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
37
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
38
DECAL DRAIN RECOIL
7078577
9999999
Not Available
39
MOUNT-ENGINE FRONT LOWER;BLK
5244019067
Not Available
40
SCREW
7515417
9999999
Not Available
41
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
45
PLATE-BOLT THIN COUPLER BLK
5244018067
Not Available
46
BRKT BOLTPLATE OUTER BLK.
5242830067
Not Available
47
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
48
BOLT
7515440
$7,34 Unit Price incl. VAT
49
WASHER WROUGHT
7558403
$9,44 Unit Price incl. VAT

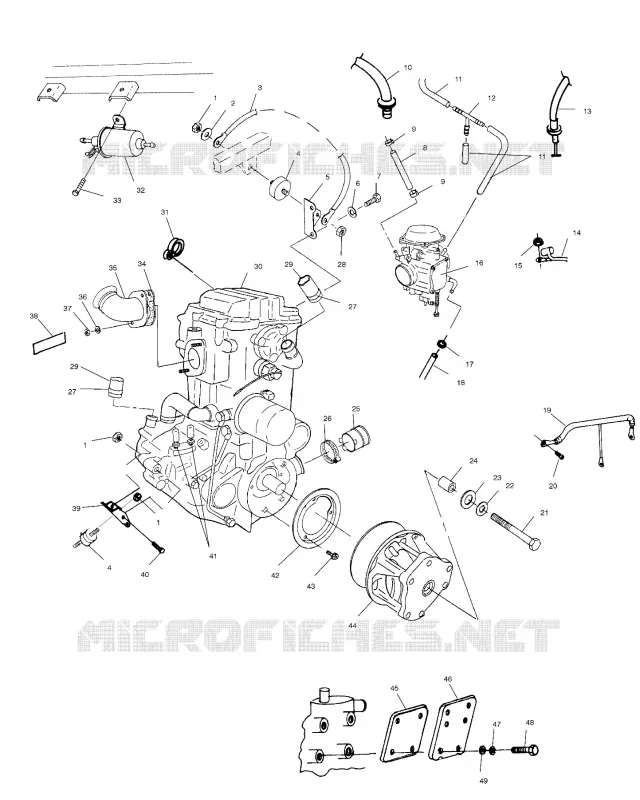

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
