ENGINE MOUNTING for POLARIS 500 CLASSIC TOURING from 2000

ENGINE MOUNTING

1

BOLT

7512565

9999999

Not Available

2

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

3

WASHER CLUTCH RETAINER

5010278

5010287

$18,89 Unit Price incl. VAT

4

O-RING

5410507

$2,09 Unit Price incl. VAT

5

SPACER

5020513

$60,89 Unit Price incl. VAT

6

CONDUIT CONVOL(26 CM)

401005126

Not Available

7

SPARKPLUG

3070166

$7,34 Unit Price incl. VAT

8

ENGINE-EC50PL220 SB

3086508

9990000

Not Available

9

HANDLE RECOIL

5431499

9999999

Not Available

10

SCREW

7512530

$10,49 Unit Price incl. VAT

11

WASHER

7555740

$3,14 Unit Price incl. VAT

12

ENGINE MOUNT; TOP; RUBBER

5411685

9999999

Not Available

13

TUBE SPACER

5333354

9999999

Not Available

14

ENGINE MOUNT; BOTTOM; RUBBER

5411686

9999999

Not Available

15

NUT FLANGE

7542522

$10,49 Unit Price incl. VAT

16

PLATE MTR.MT LWT

5131772

9999999

Not Available

17

SPRING LOCK WASHER

7553101

$7,34 Unit Price incl. VAT

18

BOLT

7512539

$7,34 Unit Price incl. VAT

19

ENGINE MOUNT

3110061

9999999

Not Available

20

FLEX LOCK; NUT

7547008

$11,54 Unit Price incl. VAT

21

NUT HEX

7542414

$9,44 Unit Price incl. VAT

22

LIMITER TORQUE TWIN-Z

1012608

9999999

Not Available

23

STOP TORQUE COARSE 1.94 DIA

3110063

9999999

Not Available

24

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

25

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

26

NUT FLEXLOC

7542402

9999999

Not Available

27

LINE; FUEL;600CM;SVC

8350018600

Not Available

28

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

29

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

30

FUEL LINE; 600 CM

8450040600

Not Available

31

CONDUIT CONVOLUTED

4010051

9999999

Not Available

32

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

33

CABLE THROTTLE W/OIL

7080552

9999999

Not Available

34

VALVE FUEL SHUT-OFF

7052060

9999999

Not Available

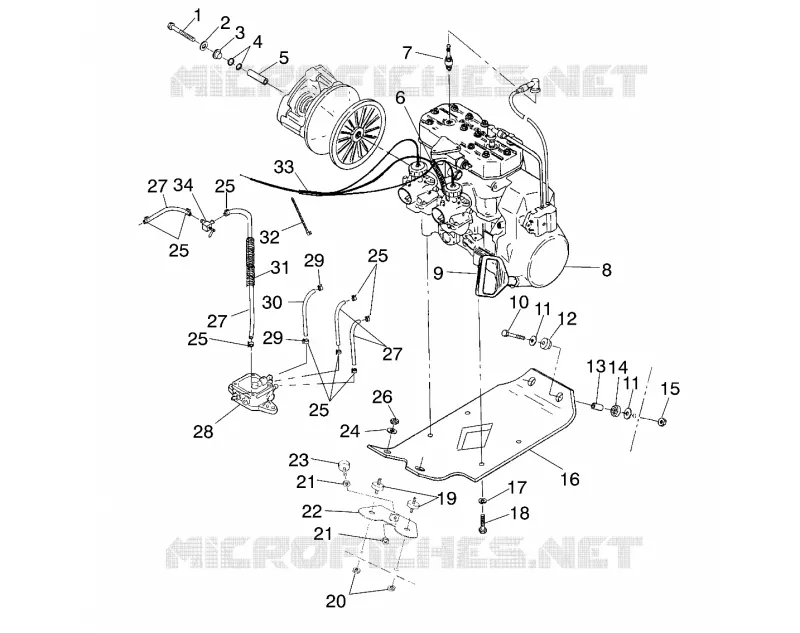

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
