CYLINDER HEAD, CAMS AND VALVES
5
Parts Diagram
Parts Catalog
CYLINDER
by
OWNERS MANUAL AND TOOL KIT
CYLINDER HEAD, CAMS AND VALVES
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
ASM-CYLINDER HEAD;1CYL;MACH
3022616
2206221
$1 065,74 Unit Price incl. VAT
2
EXHASUT CAMSHAFT
3022732
3023632
$278,24 Unit Price incl. VAT
3
ASM-DECOMP SYSTEM;LH
1205100
1209426
Not Available
4
EXHAUST VALVE; INCONEL
3022883
$125,99 Unit Price incl. VAT
5
GASKET-CYL HEAD
5814089
2206222
$115,49 Unit Price incl. VAT
6
PIN-DOWEL M6X10
5137624
$13,64 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X35 10.9
7520492
7520689
$14,69 Unit Price incl. VAT
8
SCR-HXFL M6X1.0X70 10.9
7520537
7520688
$19,94 Unit Price incl. VAT
9
DOWEL-HOLLOW M8X8
7662247
9999999
Not Available
10
VALVE TAPPET; GRADED 5.175
5138477518
Not Available
10
VALVE TAPPET; GRADED; 5.250
5138477525
Not Available
10
GRADED VALVE TAPPET; 5.300
5138477530
Not Available
10
GRADED VALVE TAPPET; 5.150
5138477515
Not Available
10
GRADED VALVE TAPPET; 5.100
5138477510
Not Available
10
GRADED VALVE TAPPET; 5.450
5138477545
Not Available
10
TAPPET-VALVE GRADED 4.625 ANVRSY GLD MET
5138477462
Not Available
10
VALVE TAPPET; GRADED 4.600
5138477460
Not Available
10
VALVE TAPPET; GRADED 4.650
5138477465
Not Available
10
VALVE TAPPET; GRADED 4.825
5138477482
Not Available
10
VALVE TAPPET; GRADED; 5.375
5138477538
Not Available
10
GRADED VALVE TAPPET; 4.450
5138477445
Not Available
10
GRADED VALVE TAPPET; 5.200
5138477520
Not Available
10
GRADED VALVE TAPPET; 4.475
5138477448
Not Available
10
VALVE TAPPET; GRADED 4.950
5138477495
Not Available
10
VALVE TAPPET 4.925MM; DELTA GREEN
5138477492
Not Available
10
VALVE TAPPET; GRADED 4.725
5138477472
Not Available
10
VALVE TAPPET; GRADED
5138477505
Not Available
10
VALVE TAPPET; GRADED; 4.575
5138477458
Not Available
10
GRADED VALVE TAPPET; 5.125
5138477512
Not Available
10
GRADED VALVE TAPPET; 4.525
5138477452
Not Available
10
GRADED VALVE TAPPET; 5.350
5138477535
Not Available
10
VALVE TAPPET; GRADED; 5.275
5138477528
Not Available
10
VALVE TAPPET; GRADED; 4.5
5138477450
Not Available
10
VALVE TAPPET 4.55MM
5138477455
Not Available
10
GRADED VALVE TAPPET; 5.075
5138477508
Not Available
10
VALVE TAPPET; GRADED; 5.325
5138477532
Not Available
10
VALVE TAPPET; GRADED 4.850
5138477485
Not Available
10
VALVE TAPPET 4.4MM GLS BLK W/ MCH HGHLTS
5138477440
Not Available
10
GRADED VALVE TAPPET; 5.425
5138477542
Not Available
10
VALVE TAPPET; GRADED 4.875
5138477488
Not Available
10
VALVE TAPPET
5138477500
Not Available
10
VALVE TAPPET; GRADED; 5.225
5138477522
Not Available
10
VALVE TAPPET 4.975MM; SB GRN MTLC
5138477498
Not Available
10
VALVE TAPPET; GRADED 4.70; COLOR
5138477470
Not Available
10
GRADED VALVE TAPPET; 5.025
5138477502
Not Available
10
GRADED VALVE TAPPET; 5.400
5138477540
Not Available
10
VALVE TAPPET; GRADED 4.800
5138477480
Not Available
10
VALVE TAPPET; GRADED 4.675
5138477468
Not Available
10
VALVE TAPPET; GRADED 4.750; COLOR
5138477475
Not Available
10
VALVE TAPPET; GRADED 4.775
5138477478
Not Available
10
VALVE TAPPET; GRADED; 4.425
5138477442
Not Available
10
VALVE TAPPET; GRADED 4.900
5138477490
Not Available
11
INTAKE CAMSHAFT
3022731
3023626
$388,49 Unit Price incl. VAT
12
INTAKE VALVE; STEEL
3022884
$52,49 Unit Price incl. VAT
13
VALVE SPRING SEAT WITH SEAL
3610212
3024576
Not Available
14
RETAINER VALVE
5138435
$47,24 Unit Price incl. VAT
15
RING-SNAP EXT 23MM
7710653
$6,29 Unit Price incl. VAT
16
SPRING VALVE
7043988
7046204
$18,89 Unit Price incl. VAT
17
VALVE KEEPER
7081470
$9,44 Unit Price incl. VAT
18
SCREW
7519153
$10,49 Unit Price incl. VAT
19
BOLT HEAD
7520144
$25,19 Unit Price incl. VAT

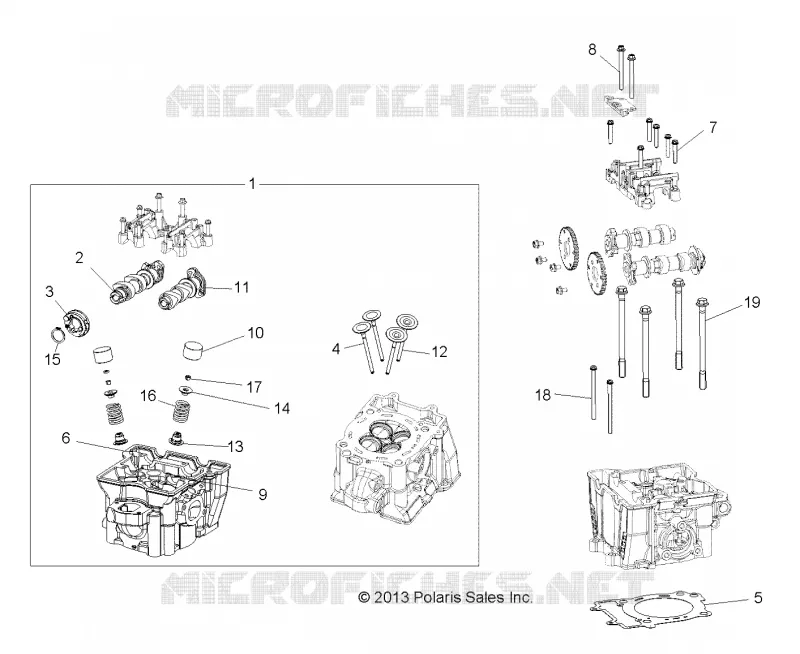

Find the detailed CYLINDER HEAD, CAMS AND VALVES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
