Engine displacement
500
2
Year
1997
3
Trim
SPORTSMAN 500 - W97CH50A
4
Parts Catalog
REAR CAB SEAT SPORTSMAN 500 W97CH50A (4939993999A005)
5
Parts Diagram
Parts Catalog
TOOL KIT SPORTSMAN 500 W97CH50A (4939993999E003)
by
ENGINE MOUNTING SPORTSMAN 500 W97CH50A (4939993999A011)
REAR CAB SEAT SPORTSMAN 500 W97CH50A (4939993999A005)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
38
38
38
39
40
41
42
43
44
45
46
47
47
47
47
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
38
38
38
39
40
41
42
43
44
45
46
47
47
47
47
1
RIVET
7661645
9999999
Not Available
2
CAB REAR GEN 4 OLV.GRN.
5432117191
Not Available
3
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
4
WASHER
7555792
$9,44 Unit Price incl. VAT
5
FOIL REAR
5811107
9999999
Not Available
6
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
7
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
8
RETAINER SEAT LATCH
5224592
9999999
Not Available
9
FOIL TAPE 3 X 12
5811308
9999999
Not Available
10
SCREW
7515180
9999999
Not Available
11
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
12
SCREW
7512085
9999999
Not Available
13
TOOLBOX
5431786
9999999
Not Available
14
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
15
BRACKET; LEVER RETAINER
5211033
9999999
Not Available
16
SEAT LATCH
1040387
9999999
Not Available
17
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
18
COVER SEAT BLK.
2681747070
Not Available
18
FOIL SEATBASE LG.
5811104
9999999
Not Available
18
SEAT ASM;BLK
2682201070
Not Available
18
FOIL SEATBASE SM.
5811105
9999999
Not Available
19
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
20
SCREW
7517375
7517312
$2,09 Unit Price incl. VAT
21
COVER TOOLBOX
5431787
9999999
Not Available
22
CAP DRAIN (10)
5410896
9999999
Not Available
23
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
24
WELL NUT
7541923
$10,49 Unit Price incl. VAT
25
GUARD-CLUTCH BLK
5241403067
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
28
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
29
CLAMP HOSE 1 IN NYLON
7080653
$9,44 Unit Price incl. VAT
30
SCREW
7512024
$9,44 Unit Price incl. VAT
31
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
32
FOOTWELL SPACER
5432280
9999999
Not Available
33
SCREW
7517377
$9,44 Unit Price incl. VAT
34
FRAME MAIN BLK
1040439067
Not Available
35
GROMMET
5410770
9999999
Not Available
36
DECAL HITCH Substituted by 7078261
7072533
Not Available
37
SCREW
7517376
7512279
$1,56 Unit Price incl. VAT
38
LEFT FOOTWELL NY; GLOSS BLACK
5432221070
Not Available
38
FOOTWELL RH BLK NYLON
5432118070
Not Available
39
FOIL
5811111
9999999
Not Available
40
FOIL FRONT
5811106
9999999
Not Available
41
NUT; LOCK
7541929
7541925
$1,56 Unit Price incl. VAT
42
DECAL CARB.INFO.
7073761
Not Available
43
DECAL FILTER ELEMENT [No Longer Available]
7072791
Not Available
44
FOIL (6X1)
5811087
9999999
Not Available
45
BOLT
7512232
$2,09 Unit Price incl. VAT
46
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
47
MUDGUARD RH R.BLK.
5431797
9999999
Not Available
47
MUDGUARD LH R.BLK.
5431796
9999999
Not Available

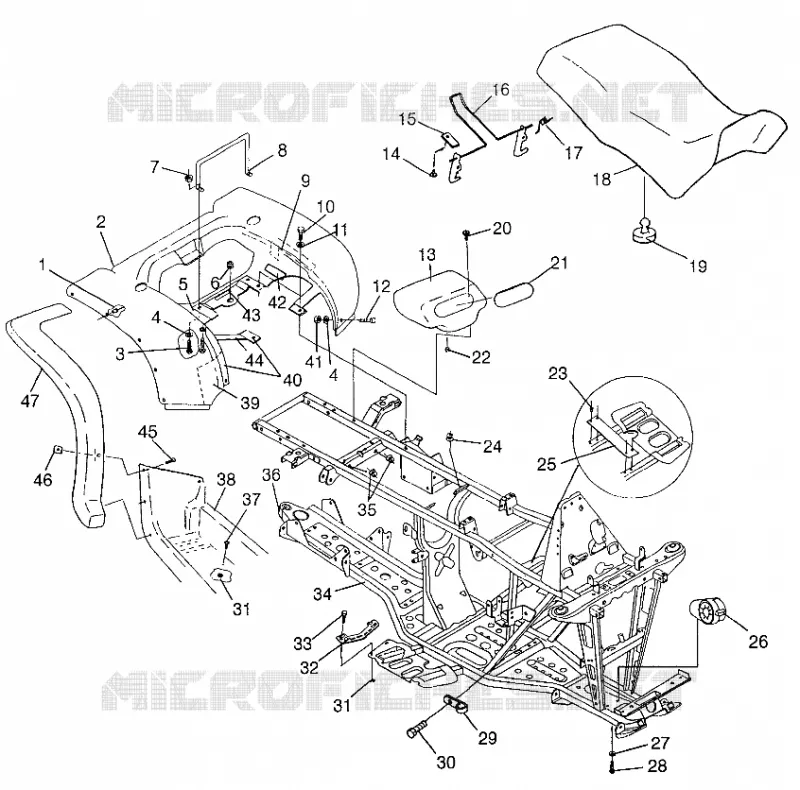

Find the detailed REAR CAB SEAT SPORTSMAN 500 W97CH50A (4939993999A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
