1
Engine displacement
autre
2
Year
1993
3
Trim
EURO CLASSIC - E930864
4
Parts Catalog
NOSEPAN ASSEMBLY CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400008)
5

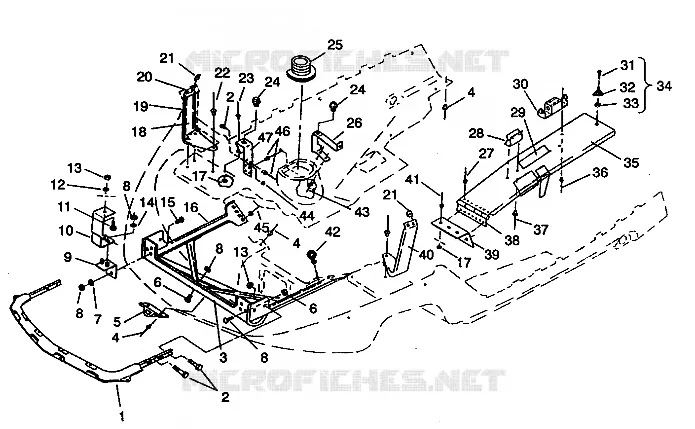

Parts Diagram
Parts Catalog
NOSEPAN ASSEMBLY CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400007)
by
FRONT SUSPENSION AND SKI CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400013)
NOSEPAN ASSEMBLY CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400008)
1
BUMPER FRONT
2670146067
Not Available
2
SCREW
7512307
$7,34 Unit Price incl. VAT
3
BRACE HD.SUPP.LOW BLK.
5222889067
Not Available
4
RIVET
7621467
$2,09 Unit Price incl. VAT
5
SUPPORT BUMPER PAN
5410832
Not Available
6
BOLT
7512298
9999999
Not Available
7
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
8
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
9
MOUNT HINGE BLK.
1011982067
Not Available
10
HINGE ASMHOODBLK.
2635013067
Not Available
11
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
13
NUT FLEX-LOC
7542303
9999999
Not Available
14
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
15
SCREW(10)
7512183
Not Available
16
SUPPORT LH BUMPER BLK.
1011968067
Not Available
16
SUPPORT RH BUMPER BLK.
1011969067
Not Available
17
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
18
DESC NOT_AVAILABLE
8360043600
Not Available
19
BRKT RH SIDEPANEL BLK. Substituted by 5240770
5222898067
Not Available
20
FOIL 3MIL
5810963
Not Available
21
NUT RETAINER
7542138
9999999
Not Available
22
RIVET
7621485
$2,09 Unit Price incl. VAT
23
RIVET
7621433
$2,09 Unit Price incl. VAT
24
VIBRATION DAMPENER
5410467
9999999
Not Available
25
BOOT; EXHAUST
5410502
9999999
Not Available
26
BRKT R.MUFFLER SUPPORT BLK. Substituted by 5240715-067
5222910067
Not Available
27
POP RIVET
7621330
$2,09 Unit Price incl. VAT
28
BELT RETAINER CLIP
5222769
$15,74 Unit Price incl. VAT
29
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
30
CADDY SPARKPLUG
5431689
9999999
Not Available
31
SCREW
7515352
9999999
Not Available
32
KNOB; BACKREST
5630386067
Not Available
33
SPACER
5431285
9999999
Not Available
34
KNOB ASMBACKREST
2670130
9999999
Not Available
35
GUARD CLUTCH (EURO)
1011999
9999999
Not Available
36
RIVET(10)
7621337
9999999
Not Available
37
RIVET
7621429
$2,09 Unit Price incl. VAT
38
HINGE
5210728
9999999
Not Available
39
MT FR.CLUTCHGUARD
5222904
Not Available
40
BRKT LH SIDEPANEL BLK.
5222897067
Not Available
41
POP RIVET
7621402
$2,09 Unit Price incl. VAT
42
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
43
RIVET
7621472
$2,09 Unit Price incl. VAT
44
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
45
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
46
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
47
SUPPORT FR.MUFFLER BLK. Substituted by 5240720-067
5222923067
Not Available

Find the detailed NOSEPAN ASSEMBLY CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
