1
Engine displacement
autre
2
Year
1994
3
Trim
EURO SPORT SKS - E940243
4
Parts Catalog
PISTON CRANKSHAFT SPORT SKS E940243 (49273627360029)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY SPORT SKS E940243 (49273627360024)
by
CARBURETOR SPORT SKS E940243 (49273627360030)
PISTON CRANKSHAFT SPORT SKS E940243 (49273627360029)
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
18
19
19
20
21
1
PISTON PIN CLIP
3083839
9999999
Not Available
2
RING PISTON .010 O/S (.010 Oversize)
3084242
Not Available
2
RING PISTON (.020) (2)
3084243
9999999
Not Available
2
RING PISTON (2)
3082822
9999999
Not Available
3
PISTON (.020 O/S) Substituted by 3085839 (.020 Oversize)
3084241
Not Available
3
PISTON (.010 O/S) Substituted by 3085838 (.010 Oversize)
3084240
Not Available
3
SET PISTON STANDARD
3084239
9999999
Not Available
4
PISTON PIN
3083858
9999999
Not Available
5
CRANKPIN SPACER
3083277
9999999
Not Available
6
CONNECTING ROD
3083252
9999999
Not Available
7
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
8
BEARING LARGE END
3084274
9999999
Not Available
9
PIN; CRANK
3083233
9999999
Not Available
10
BALL BEARING
3084586
3515063
$60,89 Unit Price incl. VAT
11
SPACER CRANKSHAFT
3080447
9999999
Not Available
12
BEARING BALL
3084587
9999999
Not Available
13
CRANKSHAFT #3
3083278
Not Available
14
CRANKSHAFT #1
3083280
9999999
Not Available
15
KEY
3081447
9999999
Not Available
16
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
17
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
18
CRANKSHAFT #2 (Incl. 6)
3083890
Not Available
19
BALL BEARING
3515501
$47,24 Unit Price incl. VAT
20
DRIVEGEAR OILPUMP
3083780
9999999
Not Available
21
CRANKSHAFT ASM.
3084585
9999999
Not Available

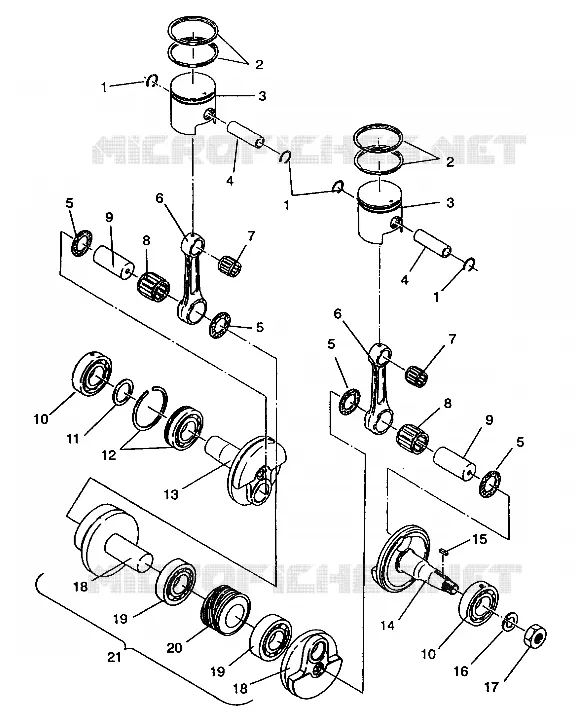

Find the detailed PISTON CRANKSHAFT SPORT SKS E940243 (49273627360029) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
