1
Engine displacement
900
2
Year
1996
3
Trim
INTL SL 900 - I964291
4
Parts Catalog
MAGNETO SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C007)
5
Parts Diagram
Parts Catalog
OIL PUMP SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C006)
by
MAGNETO SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C007)
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
1
STATOR ASM;(TRIPLE)
4060128
9999999
Not Available
2
WASHER
7555974
9999999
Not Available
3
SCREW
7517229
9999999
Not Available
4
BOLT
7516809
9999999
Not Available
5
FLYWHEEL ASM.
4060126
9999999
Not Available
6
WASHER
7555907
$10,49 Unit Price incl. VAT
7
NUT HEX (PUMP DRIVE)
5020779
9999999
Not Available
8
CONTROLLER;IGNITION
4060137
9999999
Not Available
9
SWITCH MAGNETIC
3240204
9999999
Not Available
10
COIL;IGNITION;TRIPLE
4060138
9999999
Not Available
11
SPARK PLUG CAP
4020159
9999999
Not Available
12
CABLE TIE4 INCH
7080483
9999999
Not Available

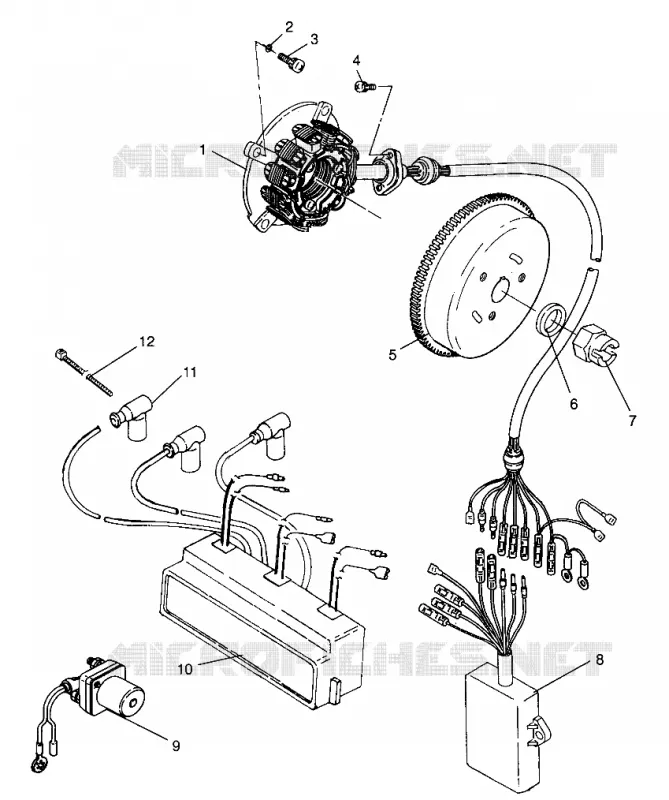

Find the detailed MAGNETO SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
