DRIVE TRAIN, MAIN GEARCASE (TO 4/1/2019) for POLARIS RANGER 570 EPS HD from 2019

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE (FROM 4/1/2019)

ASM-GEARCASE MAIN BEVEL BRAKE

1334190

Not Available

PLUG; M18 X 1.5

3234755

$52,49 Unit Price incl. VAT

SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM

3234756

$57,74 Unit Price incl. VAT

SCREW; TORX PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM

3234898

$17,84 Unit Price incl. VAT

SCREW

3235206

$13,64 Unit Price incl. VAT

SCREW CAP; 8 MM X 1.25 MM X 20 MM

3236169

$17,84 Unit Price incl. VAT

SCREW

3235207

$19,94 Unit Price incl. VAT

SCREW 6 MM X 1.0 MM 40 MM

3235208

$20,99 Unit Price incl. VAT

SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM

3235332

$7,34 Unit Price incl. VAT

HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM

3235210

$14,69 Unit Price incl. VAT

CUP WASHER

3234091

$17,84 Unit Price incl. VAT

WASHER-FENDER 5/16-1.25

3234952

$13,64 Unit Price incl. VAT

WASHER

3235211

$19,94 Unit Price incl. VAT

WASHER

3235212

$25,19 Unit Price incl. VAT

WASHER

3235213

$31,49 Unit Price incl. VAT

PIN; DOWEL; 6 X 20

3234330

$13,64 Unit Price incl. VAT

SPRING-SLOTTED PIN;6MM

7043746

$15,74 Unit Price incl. VAT

DOWEL PIN; 3 X 40

3236286

$25,19 Unit Price incl. VAT

PIN DOWEL 6X10

3236295

$20,99 Unit Price incl. VAT

SNAP RING

3233106

$10,49 Unit Price incl. VAT

RETAINING RING

3233834

$19,94 Unit Price incl. VAT

RETAINING RING

3233364

$12,59 Unit Price incl. VAT

EXTERNAL RETAINING RING

3234318

$5,76 Unit Price incl. VAT

RING RETAININGBASICINTRNL2.047

3234269

$17,84 Unit Price incl. VAT

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

RETAINING RING

3234205

$20,99 Unit Price incl. VAT

RETAINING RING

3235214

$17,84 Unit Price incl. VAT

RETAINING RING

3235216

$19,94 Unit Price incl. VAT

PINION SHAFT

3235429

$330,74 Unit Price incl. VAT

THRUST WASHER

3233378

$17,84 Unit Price incl. VAT

THRUST WASHER; .446 X .88 X .025

3234642

$19,94 Unit Price incl. VAT

SHIM 1.180 X .995(9)

3234272

$68,24 Unit Price incl. VAT

SHIM; 2.040 OD X 1.630 ID

3234273

$26,24 Unit Price incl. VAT

NEEDLE BEARING

3233014

$74,54 Unit Price incl. VAT

BEARING

3233019

$54,59 Unit Price incl. VAT

BEARING

3233020

$80,84 Unit Price incl. VAT

BALL BEARING

3233268

$88,19 Unit Price incl. VAT

BALL BEARNING

3234065

$80,84 Unit Price incl. VAT

NEEDLE BEARING

3233384

$54,59 Unit Price incl. VAT

BALL BEARING

3235218

$101,84 Unit Price incl. VAT

BALL BEARING

3234652

$27,29 Unit Price incl. VAT

COMPRESSION SPRING

3233830

$19,94 Unit Price incl. VAT

COMPRESSION SPRING

3234078

$47,24 Unit Price incl. VAT

COMPRESSION SPRING

3234089

$52,49 Unit Price incl. VAT

TORSION RETURN SPRING

3234276

$16,79 Unit Price incl. VAT

SPRING COMPRSSN.54ODX.44IDX.05

3234277

$26,24 Unit Price incl. VAT

SPRING WASHER

3235327

$17,84 Unit Price incl. VAT

SNORKLE TUBE

3234278

$188,99 Unit Price incl. VAT

SHIFT DRUM

3235463

$519,74 Unit Price incl. VAT

DIFFERENTIAL CARRIER; MACHINED

3236287

$314,99 Unit Price incl. VAT

SECTOR GEAR; 16 TOOTH

3233839

$68,24 Unit Price incl. VAT

SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH

3233832

$68,24 Unit Price incl. VAT

DETENT STAR

3235603

$73,49 Unit Price incl. VAT

FORK SHIFT

3235455

$173,24 Unit Price incl. VAT

PARK PLATE

3235456

$73,49 Unit Price incl. VAT

IDLER SHAFT; 29 TOOTH

3235223

$204,74 Unit Price incl. VAT

27T REVERSE SHAFT

3235380

$456,74 Unit Price incl. VAT

DISC BRAKE

3235372

$120,74 Unit Price incl. VAT

FRONT OUTPUT SHAFT

3235394

$246,74 Unit Price incl. VAT

GEAR OUTPUT 14T MACH

3236290

$309,74 Unit Price incl. VAT

GEAR 53T OUTPUT

3236291

$488,24 Unit Price incl. VAT

GEAR OUTPUT 14T DISCONNECT MAC

3236289

$314,99 Unit Price incl. VAT

BELLCRANK

3235474

$62,99 Unit Price incl. VAT

SHIFT COLLAR

3234073

$57,74 Unit Price incl. VAT

TUBE-VENT 90-1/4 HOSE

3234230

$19,94 Unit Price incl. VAT

LOW GEAR; 67 TOOTH

3235232

$230,99 Unit Price incl. VAT

6 FACE ENGAGEMENT DOG

3235233

$241,49 Unit Price incl. VAT

GEAR; 53 TOOTH

3235234

$157,49 Unit Price incl. VAT

STAGE 3 GEAR; 46 TOOTH

3235236

$204,74 Unit Price incl. VAT

OUTPUT GEAR; FRONT; 13 TOOTH

3235237

$246,74 Unit Price incl. VAT

SHIFT SHAFT

3235238

$68,24 Unit Price incl. VAT

STAGE 3 GEAR; 46 TOOTH

3235381

$246,74 Unit Price incl. VAT

PARK/LOW SHIFT DOG

3235457

$272,99 Unit Price incl. VAT

SHIFT RAIL; SHAFT

3235542

$52,49 Unit Price incl. VAT

48T 6 FACE SPROCKET

3235755

$152,24 Unit Price incl. VAT

DIFFERENTIAL PIN

3236292

$194,24 Unit Price incl. VAT

DOG; ENGAGEMENT

3236293

$257,24 Unit Price incl. VAT

WELD-REAR MOUNT BRKT

3235510

$99,74 Unit Price incl. VAT

SECTOR GEARS COVER

3235713

$209,99 Unit Price incl. VAT

PINION SUBASSEMBLY

3235371

$782,24 Unit Price incl. VAT

LEFT HAND CASE SUBASSEMBLY

3235422

$1 244,24 Unit Price incl. VAT

SHIFT FORK SUBASSEMBLY

3235454

$167,99 Unit Price incl. VAT

ROLLER PAWL

3235452

$68,24 Unit Price incl. VAT

BEVEL PINION; 10T

3236288

$257,24 Unit Price incl. VAT

DIFFERENTIAL SUBASSEMBLY

3236285

$719,24 Unit Price incl. VAT

SUBASSEMBLY RH COVER

3236347

Not Available

FORK RETAINER

3234934

$19,94 Unit Price incl. VAT

CENTER DRIVE BEARING COVER

3235241

$89,24 Unit Price incl. VAT

BRKT-MOUNT(430592)

3235350

$16,79 Unit Price incl. VAT

BRKT-MNT HARNESS

5257251

$57,74 Unit Price incl. VAT

BRKT-REAR MOUNT

3235511

$99,74 Unit Price incl. VAT

WASHER THRUST 40.83X56.25X0.38

3236294

$20,99 Unit Price incl. VAT

SILENT CHAIN

3234737

$314,99 Unit Price incl. VAT

GEAR POSITION SWITCH PIN

7661999

$220,49 Unit Price incl. VAT

SOLENOID

3235478

$545,99 Unit Price incl. VAT

TRANSMISSION SPEED SENSOR

4013908

4082135

$204,74 Unit Price incl. VAT

LOCTITE 680

3233901

Not Available

101

O-RING

3234302

$13,64 Unit Price incl. VAT

102

O-RING

3233836

$12,59 Unit Price incl. VAT

103

O-RING

3233828

$12,59 Unit Price incl. VAT

104

TRIPLE LIP SEAL; 25 X 80 X 10

3234113

$68,24 Unit Price incl. VAT

105

VITON TRIPLE LIP SEAL

3234892

$68,24 Unit Price incl. VAT

106

SEAL

3234851

$68,24 Unit Price incl. VAT

107

VITON TRIPLE LIP SEAL; 40 X 70 X 7

3235052

$57,74 Unit Price incl. VAT

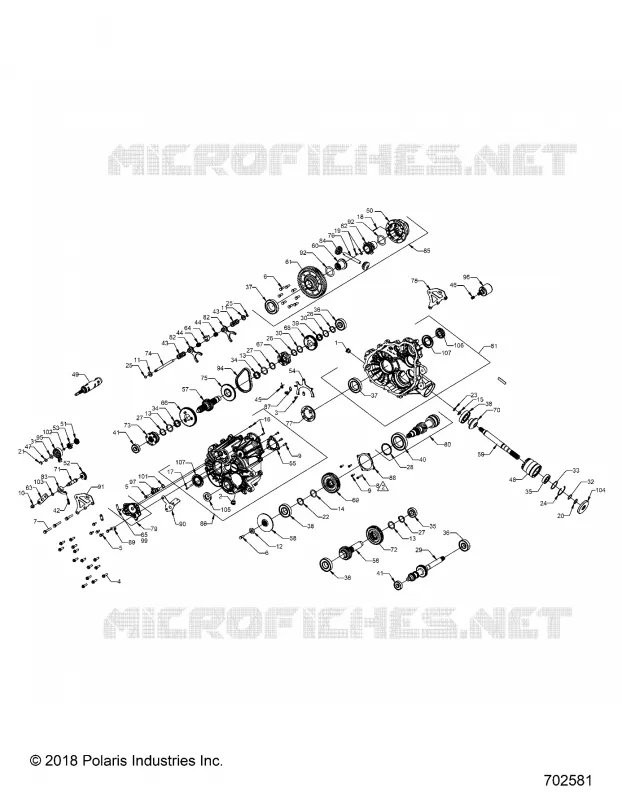

Find the detailed DRIVE TRAIN, MAIN GEARCASE (TO 4/1/2019) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
