WHEELS, REAR AND HUB for POLARIS 850 FOREST EU from 2015

WHEELS, REAR AND HUB

1

BEARING CARRIER LEFT

5136689

5143607

$121,79 Unit Price incl. VAT

1

BEARING CARRIER RIGHT

5136690

5143608

$121,79 Unit Price incl. VAT

2

SEALED BALL BEARING; 44 X 72 X 33.1

3514699

$73,49 Unit Price incl. VAT

3

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

4

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

5

REAR RADIAL E-MARK 489 AT TIRE; 26X10-14

5414328

9999999

Not Available

6

TAPERED WHEEL NUT; 10 MM X 1.25 MM

7547361

$4,19 Unit Price incl. VAT

7

HUB COVER

5438120

$89,24 Unit Price incl. VAT

8

RIM OFFSET; REAR; RIGHT; 14 X 7.5-72.2

1522101067

Not Available

9

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

10

CASTLE NUT; 18 MM X 1.5 MM X 13 MM

7547406

$9,44 Unit Price incl. VAT

11

CONE WASHER

7555796

$14,69 Unit Price incl. VAT

12

WHEEL HUB

5136946

$178,49 Unit Price incl. VAT

13

BRAKE DISC

5250205

$141,74 Unit Price incl. VAT

14

WHEEL STUD; M10 X 1.25 X 58

7518671

$3,14 Unit Price incl. VAT

15

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

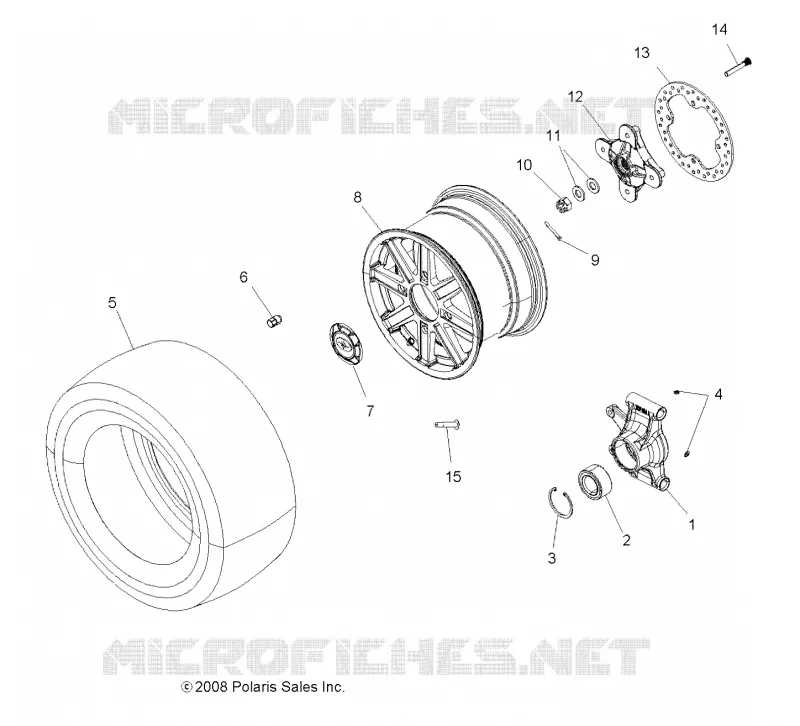

Find the detailed WHEELS, REAR AND HUB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
