Engine displacement
500
2
Year
2005
3
Trim
ATP 500 4X4 - A05JD50AA
4
Parts Catalog
MAGNETO
5
Parts Diagram
Parts Catalog
RECOIL STARTER
by
OIL PUMP
MAGNETO
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
16
1
IGNITION COIL ASSEMBLY
3089260
9999999
Not Available
2
SPARKPLUG CAP
3084980
9999999
Not Available
3
SPARK PLUG
3070172
$7,34 Unit Price incl. VAT
4
O-RING
3084978
9999999
Not Available
5
BEARING; METAL
3084972
9999999
Not Available
6
PLATE
3089248
9999999
Not Available
6
ASM. PLATE
3089545
9999999
Not Available
7
BOLT AND WASHER ASSEMBLY
3081657
9999999
Not Available
8
OIL SEAL
3084973
9999999
Not Available
9
STATOR
3089546
9999999
Not Available
10
FLYWHEEL GEAR W/ RING
3089544
9999999
Not Available
11
ASM. SCREW AND WASHER
3089547
9999999
Not Available
12
SCREW&WASHER ASM.
3084976
9999999
Not Available
13
BAND-PULSE
3089250
9999999
Not Available
14
PULSER COIL
3089254
9999999
Not Available
15
SCREW&WASHER ASM(10)
3081256
9999999
Not Available
16
CAPACITOR DISCHARGE IGNITION (CDI) SYTM
3089238
9999999
Not Available

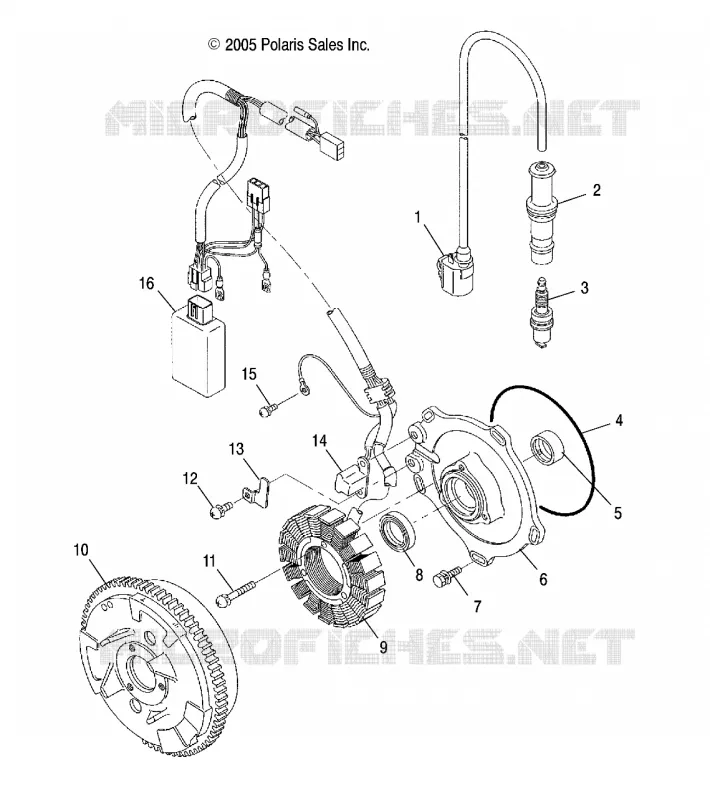

Find the detailed MAGNETO POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
