1
Engine displacement
850
2
Year
2015
3
Trim
SPORTSMAN 850 SP
4
Parts Catalog
CAM CHAIN AND TENSIONER
5
Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
COOLING BYPASS
CAM CHAIN AND TENSIONER
1
2
3
4
5
6
7
8
9
10
1
FIXED GUIDE
3022595
3024083
$20,99 Unit Price incl. VAT
2
CAM DRIVE BLADE; LGB
3022596
$52,49 Unit Price incl. VAT
3
CHAIN-ROLLER 102 LINK LGB
3222223
$115,49 Unit Price incl. VAT
4
O-RING 15.60 X 1.78
5412002
$2,09 Unit Price incl. VAT
5
BOLT-SHLDR SEALING M8X8X15
5136831
$20,99 Unit Price incl. VAT
6
SPROCKET-42T ROLLER LGB
3222224
$73,49 Unit Price incl. VAT
7
SCR-CAMSHAFT SPROCKET
7518574
$9,44 Unit Price incl. VAT
8
TENSIONER-HYD W/COVER LGB
3022597
1205157
$83,99 Unit Price incl. VAT
9
SCR-HXFL-M6X1.0X25 8.8
7520107
1205157
$83,99 Unit Price incl. VAT
10
TENSIONER COVER GASKET
5813135
$17,84 Unit Price incl. VAT

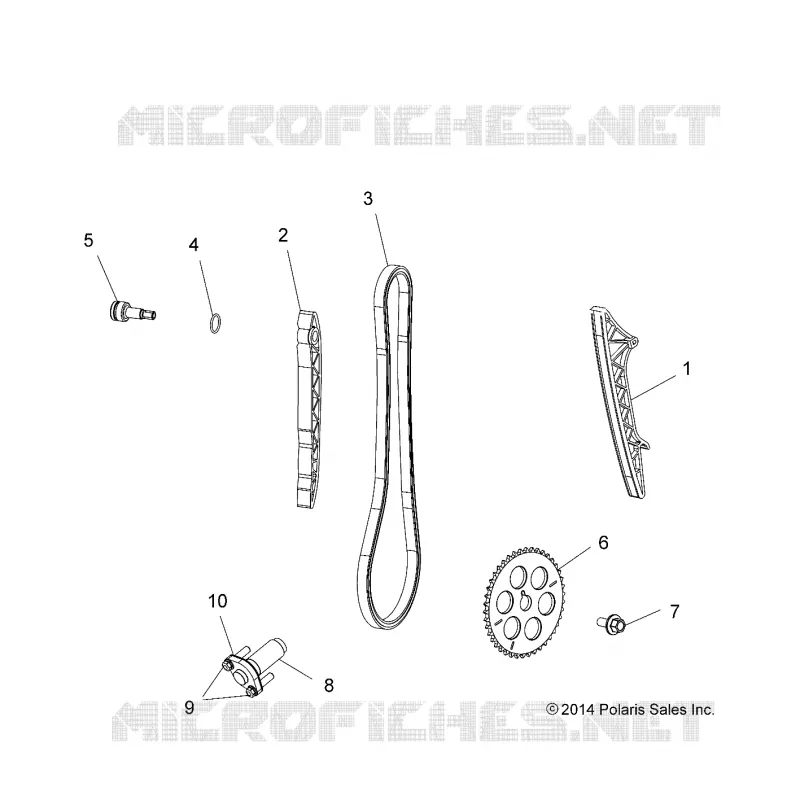

Find the detailed CAM CHAIN AND TENSIONER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
