1
Engine displacement
780
2
Year
1996
3
Trim
SLT 780 - B964588
4
Parts Catalog
FUEL SYSTEM SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568A010)
5
Parts Diagram
Parts Catalog
FUEL TANK SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568A009)
by
SEAT SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568A011)
FUEL SYSTEM SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568A010)
1
SCREW S.S.(10)
7516302
9999999
Not Available
2
WASHER; FLAT; S.S.
7555840
9999999
Not Available
3
KNOB; FUEL VALVE
5431360
9999999
Not Available
4
NUT; FUEL VALVE
5431451
9999999
Not Available
5
VALVE; FUEL
7052123
9999999
Not Available
6
T-CLIP
7080482
9999999
Not Available
7
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT
8
DESC NOT_AVAILABLE
845006355
Not Available
9
VALVEVACUUM CHECK
7052118
9999999
Not Available
10
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
11
GROMMET VENT
5410682
9999999
Not Available
12
VALVE CHECK RELIEF
7051015
9999999
Not Available
13
FITTING TEE
7052111
9999999
Not Available
14
DESC NOT_AVAILABLE
845006484
Not Available
15
DESC NOT_AVAILABLE
845006662
Not Available
16
BOLT(10)
7515174
9999999
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
WASHER; LOCK; S.S.
7555838
9999999
Not Available
19
WASHER
7555836
9999999
Not Available
20
DESC NOT_AVAILABLE
845006543
Not Available
21
FUEL LINE1/4 ID(1525 CM.)
84500461525
Not Available
22
NUT NYLOK S.S.
7542133
9999999
Not Available

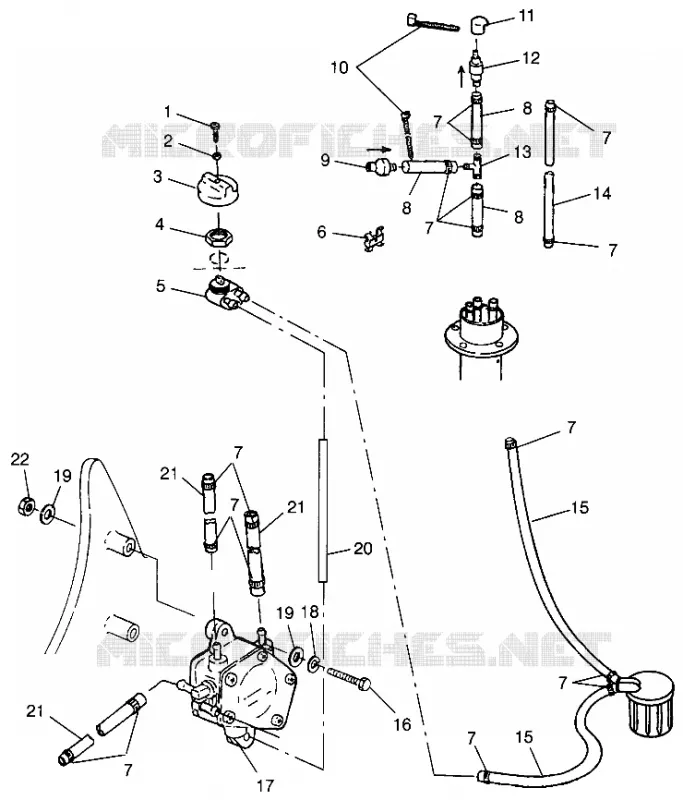

Find the detailed FUEL SYSTEM SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568A010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
