1
Engine displacement
570
2
Year
2018
3
Trim
RZR 570
4
Parts Catalog
ENGINE, CYLINDER HEAD, CAMS AND VALVES
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
ENGINE, EXHAUST SYSTEM
ENGINE, CYLINDER HEAD, CAMS AND VALVES
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
ASM-CYLINDER HEAD;1CYL;MACH
3022616
2206221
$1 065,74 Unit Price incl. VAT
2
EXHASUT CAMSHAFT
3022732
3023632
$278,24 Unit Price incl. VAT
3
ASM-DECOMP SYSTEM;LH
1205100
1209426
Not Available
4
INTAKE VALVE; STEEL
3022884
$52,49 Unit Price incl. VAT
5
GASKET-CYL HEAD
5814089
2206222
$115,49 Unit Price incl. VAT
6
PIN-DOWEL M6X10
5137624
$13,64 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X35 10.9
7520492
7520689
$14,69 Unit Price incl. VAT
8
SCR-HXFL M6X1.0X70 10.9
7520537
7520688
$19,94 Unit Price incl. VAT
9
DOWEL-HOLLOW M8X8
7662247
9999999
Not Available
10
VALVE TAPPET; GRADED 5.175
5138477518
Not Available
10
VALVE TAPPET; GRADED; 5.250
5138477525
Not Available
10
GRADED VALVE TAPPET; 5.300
5138477530
Not Available
10
GRADED VALVE TAPPET; 5.150
5138477515
Not Available
10
GRADED VALVE TAPPET; 5.100
5138477510
Not Available
10
GRADED VALVE TAPPET; 5.450
5138477545
Not Available
10
TAPPET-VALVE GRADED 4.625 ANVRSY GLD MET
5138477462
Not Available
10
VALVE TAPPET; GRADED 4.600
5138477460
Not Available
10
VALVE TAPPET; GRADED 4.650
5138477465
Not Available
10
VALVE TAPPET; GRADED 4.825
5138477482
Not Available
10
VALVE TAPPET; GRADED; 5.375
5138477538
Not Available
10
GRADED VALVE TAPPET; 4.450
5138477445
Not Available
10
GRADED VALVE TAPPET; 5.200
5138477520
Not Available
10
GRADED VALVE TAPPET; 4.475
5138477448
Not Available
10
VALVE TAPPET; GRADED 4.950
5138477495
Not Available
10
VALVE TAPPET 4.925MM; DELTA GREEN
5138477492
Not Available
10
VALVE TAPPET; GRADED 4.725
5138477472
Not Available
10
VALVE TAPPET; GRADED
5138477505
Not Available
10
VALVE TAPPET; GRADED; 4.575
5138477458
Not Available
10
GRADED VALVE TAPPET; 5.125
5138477512
Not Available
10
GRADED VALVE TAPPET; 4.525
5138477452
Not Available
10
GRADED VALVE TAPPET; 5.350
5138477535
Not Available
10
VALVE TAPPET; GRADED; 5.275
5138477528
Not Available
10
VALVE TAPPET; GRADED; 4.5
5138477450
Not Available
10
VALVE TAPPET 4.55MM
5138477455
Not Available
10
GRADED VALVE TAPPET; 5.075
5138477508
Not Available
10
VALVE TAPPET; GRADED; 5.325
5138477532
Not Available
10
VALVE TAPPET; GRADED 4.850
5138477485
Not Available
10
VALVE TAPPET 4.4MM GLS BLK W/ MCH HGHLTS
5138477440
Not Available
10
GRADED VALVE TAPPET; 5.425
5138477542
Not Available
10
VALVE TAPPET; GRADED 4.875
5138477488
Not Available
10
VALVE TAPPET
5138477500
Not Available
10
VALVE TAPPET; GRADED; 5.225
5138477522
Not Available
10
VALVE TAPPET 4.975MM; SB GRN MTLC
5138477498
Not Available
10
VALVE TAPPET; GRADED 4.70; COLOR
5138477470
Not Available
10
GRADED VALVE TAPPET; 5.025
5138477502
Not Available
10
GRADED VALVE TAPPET; 5.400
5138477540
Not Available
10
VALVE TAPPET; GRADED 4.800
5138477480
Not Available
10
VALVE TAPPET; GRADED 4.675
5138477468
Not Available
10
VALVE TAPPET; GRADED 4.750; COLOR
5138477475
Not Available
10
VALVE TAPPET; GRADED 4.775
5138477478
Not Available
10
VALVE TAPPET; GRADED; 4.425
5138477442
Not Available
10
VALVE TAPPET; GRADED 4.900
5138477490
Not Available
11
INTAKE CAMSHAFT
3022731
3023626
$388,49 Unit Price incl. VAT
12
EXHAUST VALVE; INCONEL
3022883
$125,99 Unit Price incl. VAT
13
VALVE SPRING SEAT WITH SEAL
3610212
3024576
Not Available
14
RETAINER VALVE
5138435
$47,24 Unit Price incl. VAT
15
RING-SNAP EXT 23MM
7710653
$6,29 Unit Price incl. VAT
16
SPRING VALVE
7043988
7046204
$18,89 Unit Price incl. VAT
17
VALVE KEEPER
7081470
$9,44 Unit Price incl. VAT
18
SCREW
7519153
$10,49 Unit Price incl. VAT
19
BOLT HEAD
7520144
$25,19 Unit Price incl. VAT

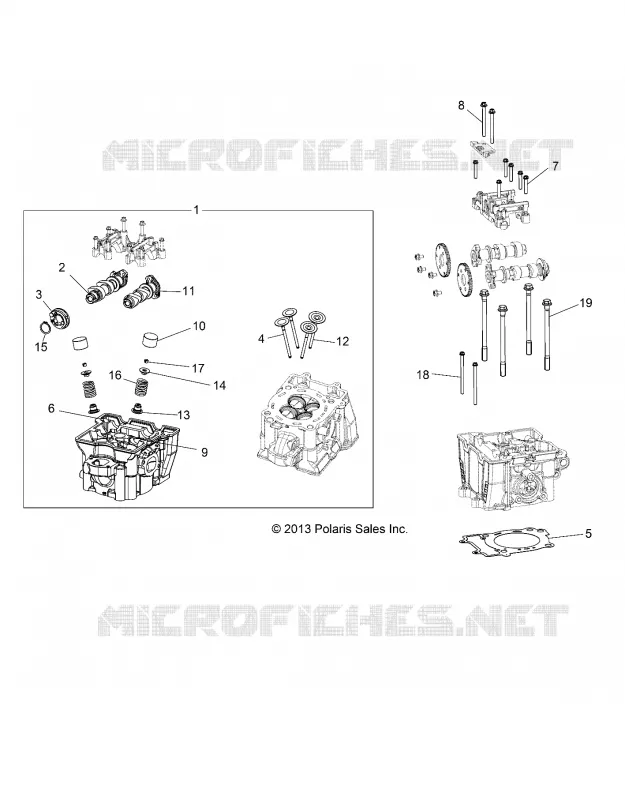

Find the detailed ENGINE, CYLINDER HEAD, CAMS AND VALVES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RZR 570

FUEL TANK

FUEL TANK

for RZR 570 from 2018

BODY, PASSENGER GRAB BAR

BODY, PASSENGER GRAB BAR

for RZR 570 from 2018

HOOD AND FRONT BODY WORK

HOOD AND FRONT BODY WORK

for RZR 570 from 2018

REAR BODYWORK BUMPER

REAR BODYWORK BUMPER

for RZR 570 from 2018

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RZR 570 from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for RZR 570 from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR 570 from 2018

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for RZR 570 from 2018

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for RZR 570 from 2018

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for RZR 570 from 2018

CRANKCASE

CRANKCASE

for RZR 570 from 2018

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for RZR 570 from 2018

CYLINDER

CYLINDER

for RZR 570 from 2018

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for RZR 570 from 2018

REFERENCES, TOOL KIT AND OWNERS MANUAL

REFERENCES, TOOL KIT AND OWNERS MANUAL

for RZR 570 from 2018

STEERING

STEERING

for RZR 570 from 2018

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR 570 from 2018

FLOOR AND ROCKER PANELS

FLOOR AND ROCKER PANELS

for RZR 570 from 2018

SEAT ASM.

SEAT ASM.

for RZR 570 from 2018

SIDE NETS

SIDE NETS

for RZR 570 from 2018

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR 570 from 2018

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for RZR 570 from 2018

DRIVE TRAIN, MAIN GEARCASE MOUNTING- Z18VHA57B2 (701249)

DRIVE TRAIN, MAIN GEARCASE MOUNTING- Z18VHA57B2 (701249)

for RZR 570 from 2018

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for RZR 570 from 2018

ELECTRICAL, WIRE HARNESS

ELECTRICAL, WIRE HARNESS

for RZR 570 from 2018

ENGINE, BREATHER

ENGINE, BREATHER

for RZR 570 from 2018

ENGINE, ENGINE MOUNTING

ENGINE, ENGINE MOUNTING

for RZR 570 from 2018

ENGINE, FUEL INJECTOR 2521403 O-RINGS

ENGINE, FUEL INJECTOR 2521403 O-RINGS

for RZR 570 from 2018

THERMOSTAT AND COVER

THERMOSTAT AND COVER

for RZR 570 from 2018

ENGINE, THROTTLE PEDAL

ENGINE, THROTTLE PEDAL

for RZR 570 from 2018

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR 570 from 2018

SUSPENSION, FRONT STABILIZER BAR

SUSPENSION, FRONT STABILIZER BAR

for RZR 570 from 2018

DECALS

DECALS

for RZR 570 from 2018

FRONT BUMPER

FRONT BUMPER

for RZR 570 from 2018

REAR BODYWORK RACK AND FENDERS

REAR BODYWORK RACK AND FENDERS

for RZR 570 from 2018

SEAT MOUNTING AND BELTS

SEAT MOUNTING AND BELTS

for RZR 570 from 2018

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, MAIN FRAME AND SKID PLATE

for RZR 570 from 2018

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for RZR 570 from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RZR 570 from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR 570 from 2018

ELECTRICAL, IGNITION

ELECTRICAL, IGNITION

for RZR 570 from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR 570 from 2018

ENGINE, CYLINDER HEAD, CAMS AND VALVES

ENGINE, CYLINDER HEAD, CAMS AND VALVES

for RZR 570 from 2018

ENGINE, EXHAUST SYSTEM

ENGINE, EXHAUST SYSTEM

for RZR 570 from 2018

ENGINE, THROTTLE BODY AND FUEL RAIL

ENGINE, THROTTLE BODY AND FUEL RAIL

for RZR 570 from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for RZR 570 from 2018

SUSPENSION, FRONT SHOCK MOUNTING

SUSPENSION, FRONT SHOCK MOUNTING

for RZR 570 from 2018

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, REAR SHOCK MOUNTING

for RZR 570 from 2018

SUSPENSION, REAR STABILIZER BAR

SUSPENSION, REAR STABILIZER BAR

for RZR 570 from 2018

BRAKES, BRAKE LINES AND MASTER CYLINDER

BRAKES, BRAKE LINES AND MASTER CYLINDER

for RZR 570 from 2018

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RZR 570 from 2018

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR 570 from 2018

BRAKES, REAR CALIPER

BRAKES, REAR CALIPER

for RZR 570 from 2018

CHASSIS, CAB FRAME

CHASSIS, CAB FRAME

for RZR 570 from 2018

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for RZR 570 from 2018

ELECTRICAL, BOX HARNESS, REG, RELAY

ELECTRICAL, BOX HARNESS, REG, RELAY

for RZR 570 from 2018

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

for RZR 570 from 2018

ELECTRICAL, HEADLIGHTS, TAILLIGHTS AND BULBS

ELECTRICAL, HEADLIGHTS, TAILLIGHTS AND BULBS

for RZR 570 from 2018

ENGINE, OIL FILTER AND DIPSTICK

ENGINE, OIL FILTER AND DIPSTICK

for RZR 570 from 2018

OIL PUMP

OIL PUMP

for RZR 570 from 2018

STARTER DRIVE

STARTER DRIVE

for RZR 570 from 2018

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for RZR 570 from 2018

WHEELS, FRONT

WHEELS, FRONT

for RZR 570 from 2018

WHEELS, REAR

WHEELS, REAR

for RZR 570 from 2018

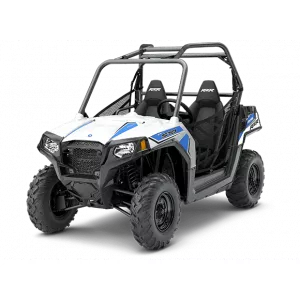

POLARIS RZR 570 2018
