SHOCK, IFS for POLARIS 850 AXYS SWITCHBACK ASSAULT 144 from 2021

SHOCK, IFS

-

IFS PIGGYBACK SHOCK; WALKER EVANS

7043757

$1 217,99 Unit Price incl. VAT

1

SPRING-D-TENT(10)

1800128

$20,99 Unit Price incl. VAT

1

BALL-D-TENT(10)

1800127

$12,59 Unit Price incl. VAT

2

SCREW 10X5/8 BTN SS (500603)

1800357

$6,29 Unit Price incl. VAT

3

STUD; CLICKER (400613)

1800352

$57,74 Unit Price incl. VAT

3

O-RING STUD

1800215

$14,16 Unit Price incl. VAT

4

BOLT; CLICKER (900606)

1800354

$23,09 Unit Price incl. VAT

5

CLICKER PISTON

1800353

$173,24 Unit Price incl. VAT

6

BODY O-RING

1800030

$3,66 Unit Price incl. VAT

7

CRIMP NUT 3/8 IN

1800031

$7,34 Unit Price incl. VAT

8

O-RING

1800184

$10,49 Unit Price incl. VAT

9

PISTON BAND

1800185

$83,99 Unit Price incl. VAT

10

BLEED SCREW (10)

1800043

$12,59 Unit Price incl. VAT

10

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

11

BUSHING

1800406

$9,44 Unit Price incl. VAT

12

SPRING RETAINER

1800046

$68,24 Unit Price incl. VAT

13

BODY; IFS; BLACK

1800470

9999999

Not Available

14

SEAL HEAD ASSEMBLY

1800414

9999999

Not Available

15

IFS SHAFT

1800469

$299,24 Unit Price incl. VAT

16

BUMPER SHAFT; .62

1800462

$68,24 Unit Price incl. VAT

17

BODY RES 3.75L BLK(1020334)

1800419

9999999

Not Available

18

SLEEVE; 1.15L

1800405

$62,99 Unit Price incl. VAT

19

PIGGYBACK LOOP

1800461

9999999

Not Available

20

BOLT; NEEDLE (600124)

1800301

9999999

Not Available

21

SCREW-BLEED W/O RING

1800074

9999999

Not Available

22

SPRING RETAINING RING

1800116

$120,74 Unit Price incl. VAT

23

NEEDLE 2.25 (100114)

1800300

9999999

Not Available

24

O-RING CLICKER HSG (900605)

1800358

9999999

Not Available

25

SNAP RING CLICKER

1800359

$6,29 Unit Price incl. VAT

26

PISTON; RES; 2 (620204)

1800355

$152,24 Unit Price incl. VAT

27

END CAP;RES 2 BLK (1020207)

1800420

9999999

Not Available

28

RING-SNAP

1800159

$10,49 Unit Price incl. VAT

29

NEEDLE VALVE

1800329

$62,99 Unit Price incl. VAT

29

O-RING STUD

1800215

$14,16 Unit Price incl. VAT

30

SCREW-BUTTON HEAD 8/32(10)

1800109

$6,29 Unit Price incl. VAT

30

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

31

TEFLON WEAR BAND

1800297

$62,99 Unit Price incl. VAT

31

PISTON CONVEX

1800001

9999999

Not Available

32

3/8 AN WASHER (10)

1800050

$7,34 Unit Price incl. VAT

33

O-RING BODY

1800027

$3,66 Unit Price incl. VAT

34

SHAFT SEAL U CUP

1800323

9999999

Not Available

34

WIPER D/TYPE

1800322

9999999

Not Available

34

O-RING SHAFT SEAL HEAD (10)

1800037

$3,14 Unit Price incl. VAT

34

SHAFT BUSHING

1800038

9999999

Not Available

35

SHAFT LOOP

1800471

9999999

Not Available

36

MATTE BLACK SPRING 10.25

7043460458

Not Available

37

SCREW 10 MMX 1.5 MM X 60 MM

7518941

$7,34 Unit Price incl. VAT

38

BUSHING 10 MM X 17.5 MM X 30

5137360

$7,34 Unit Price incl. VAT

39

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

40

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

41

JAM NUT

1800465

$99,74 Unit Price incl. VAT

42

KNOB; CLICKER BLACK

1800418

$173,24 Unit Price incl. VAT

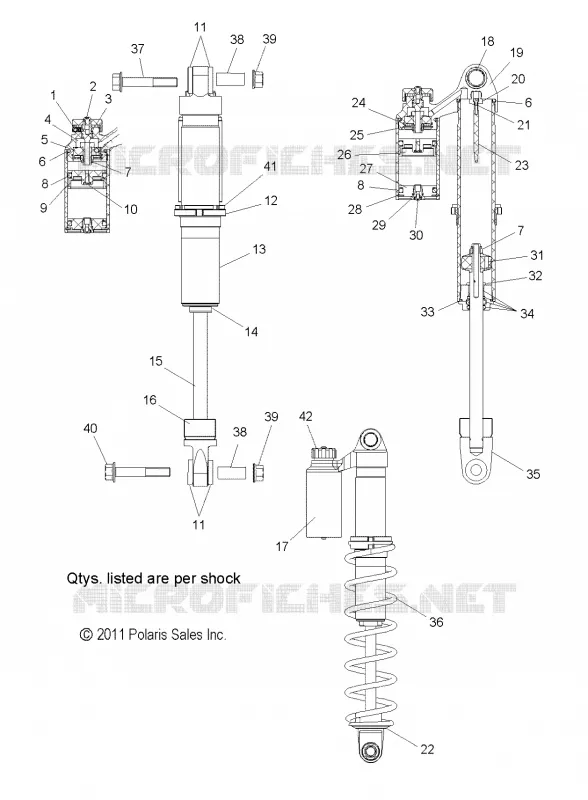

Find the detailed SHOCK, IFS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
