SUSPENSION, FRONT TORQUE ARM for POLARIS 650 SKS 146 from 2023

SUSPENSION, FRONT TORQUE ARM

1

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$10,49 Unit Price incl. VAT

2

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

3

BUSHING PIVOT

5438875

$20,99 Unit Price incl. VAT

4

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

5

RTS PIVOT BUSHING

5140030

$13,64 Unit Price incl. VAT

6

WELD-SHOCK PIVOT ECOAT

1543515329

Not Available

7

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

8

SCR-M8X1.25X65-HX/FL-Y CL 10.9

7519212

$9,44 Unit Price incl. VAT

9

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$13,64 Unit Price incl. VAT

10

PIVOT SHAFT

5137367

$52,49 Unit Price incl. VAT

11

WSHR-10.4X28.58X2.4 ZOD

7556563

$6,29 Unit Price incl. VAT

12

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$7,34 Unit Price incl. VAT

13

FTA ASSEMBLY; E-COAT

1543509329

Not Available

14

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$3,14 Unit Price incl. VAT

15

WASHER-.325X1.20X.090 FL-Y

7556175

$9,44 Unit Price incl. VAT

16

LIMITER STRAP

5414733

$47,24 Unit Price incl. VAT

17

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

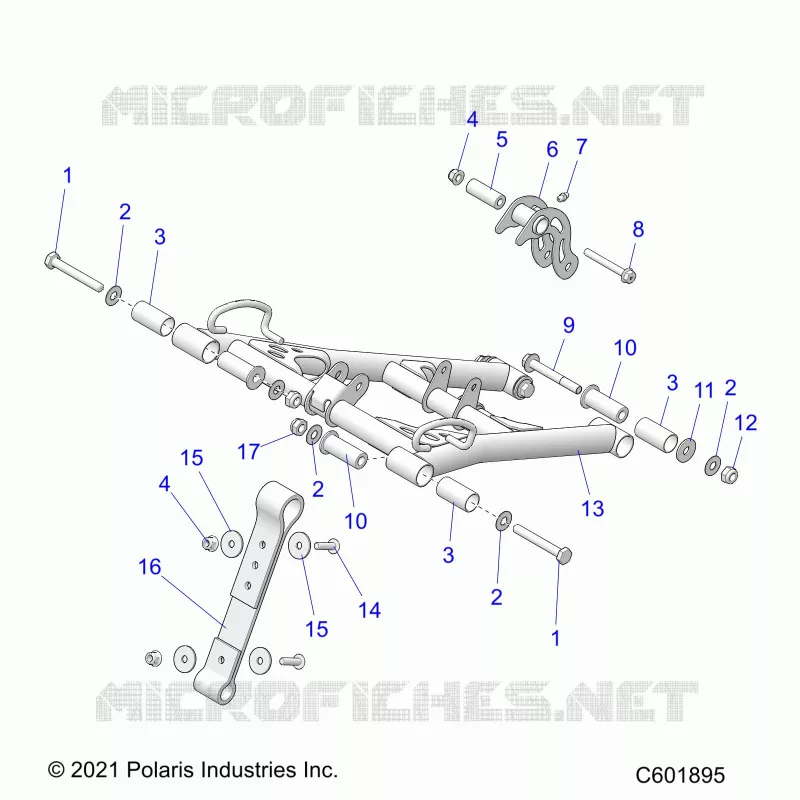

Find the detailed SUSPENSION, FRONT TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
