Engine displacement
500
2
Year
2011
3
Trim
RANGER 4X4 500 CREW - R11WH50AG/AH/AR
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAMSHAFT VALVES
by
FLYWHEEL AND STATOR
COOLING SYSTEM
1
2
3
4
5
6
7
8
1
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
1
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
2
HOSE-ENG OUT;RAD IN
5413960
9999999
Not Available
3
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
4
HOSE-RAD OUT;ENG IN
5413959
5414253
$246,74 Unit Price incl. VAT
5
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
6
FLEX CONDUIT; 1.250 I.D X 15 CM
552128715
Not Available
7
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
8
CLIP-COOLANT ROUTING
5438331
9999999
Not Available
9
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
10
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
11
RADIATOR-FLAT
1240528
1240721
$913,49 Unit Price incl. VAT
12
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
13
FAN ASSEMBLY
2410865
$289,79 Unit Price incl. VAT
14
GROMMET AND INSERT ASSEMBLY
5413155
$7,34 Unit Price incl. VAT
15
SCREW
7515179
$4,19 Unit Price incl. VAT
16
VALVE-PLASTIC RAD/COOLER DRAIN
7052410
$52,49 Unit Price incl. VAT
17
FAN SHROUD
5436852
9999999
Not Available
18
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
19
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
20
GASKET
5810279
$4,19 Unit Price incl. VAT
21
FUEL LINE; 1/4 ID
84500031525
Not Available
22
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
BRKT-SURGE TANK
5246873
9999999
Not Available
25
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
26
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
27
EDGE TRIM-BLACK; 6 CM
836001206
Not Available

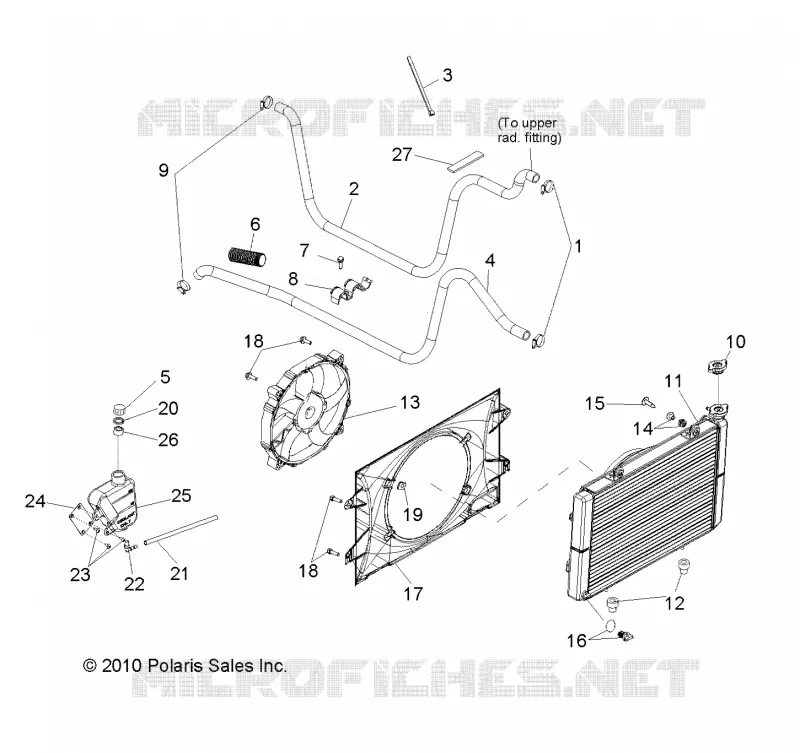

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
