REAR SUSPENSION CONTROL ARMS for POLARIS RZR XP 1000 from 2021

REAR SUSPENSION CONTROL ARMS

1

WELD-TRL ARM;LH;NAVY BLUE

1019356727

Not Available

1

WELD-TRL ARM;LH;STLTH GRAY

1019356804

Not Available

1

TRAILING ARM; LEFT HAND; MATTE BLACK

1019356458

Not Available

2

WELD-TRL ARM;RH;STLTH GRAY

1019357804

Not Available

2

WELD-TRL ARM;RH;NAVY BLUE

1019357727

Not Available

2

TRAILING ARM; RIGHT SIDE; MATTE BLACK

1019357458

Not Available

3

SPHERICAL BEARING; 0.625

3514689

$68,24 Unit Price incl. VAT

4

REDUCER BUSHING; 12 MM

5336751

$12,59 Unit Price incl. VAT

5

HEX FLANGE SCREW; 12 MM X 1.5 MM; 60 MM

7519138

$17,84 Unit Price incl. VAT

6

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

7

RETAINING RING

7710437

$5,76 Unit Price incl. VAT

8

HEX FLANGE SCREW 12 MM X 1.5 MM X 105 MM

7520479

$13,64 Unit Price incl. VAT

9

RADIUS ROD ASSEMBLY; BOTTOM; MATTE BLACK

1544029458

Not Available

9

ASM-RADIUS ROD;BTM;NAVY BLUE

1544029727

Not Available

9

ASM-RADIUS ROD;BTM;ST GRY NM

1544029804

Not Available

10

RADIUS ROD ASSEMBLY; MATTE BLACK

1544030458

Not Available

10

ASM-RADIUS ROD;STLTH GRAY

1544030804

Not Available

10

ASM-RADIUS ROD;NAVY BLUE

1544030727

Not Available

11

PLATE-REAR BOLT BRACE M.BLK

5262630458

Not Available

12

HEX FLANGE SCREW; 12 MM X 1.5 MM X 65 MM

7520477

$6,08 Unit Price incl. VAT

13

WASHER 13 X 2.5

7556287

$13,64 Unit Price incl. VAT

14

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

15

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

16

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

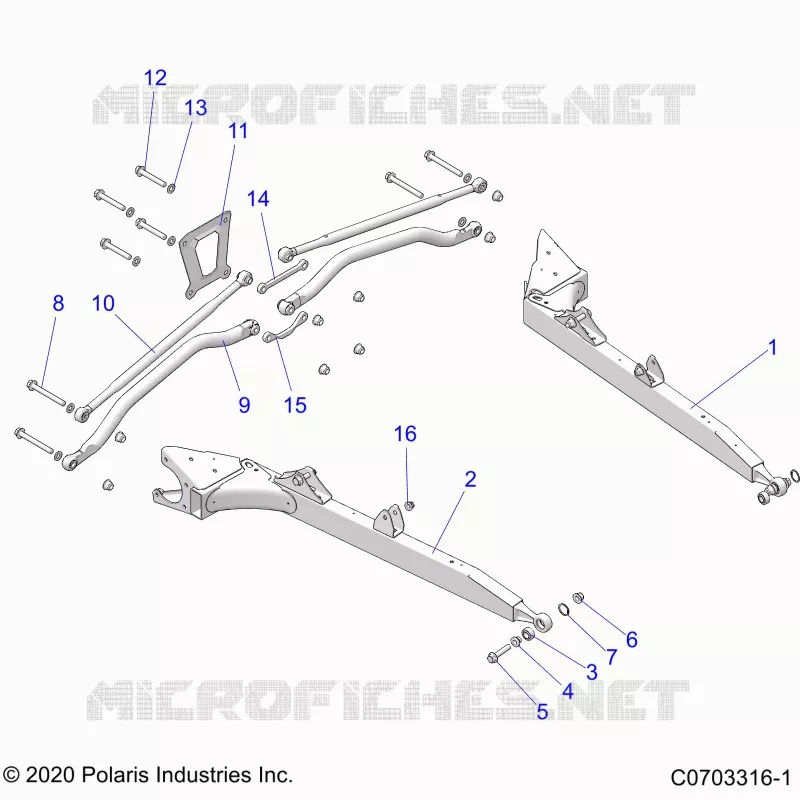

Find the detailed REAR SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RZR XP 1000

DASHBOARD

DASHBOARD STORAGE

DECALSS

DOORSS

DOORSS

FLOOR

FRONT BUMPER

BODY, FUEL LINES, EVAP

BODY, FUEL LINES, STD.

FUEL TANK

BODY, PASSENGER GRAB BAR

HOOD AND FRONT BODY WORK

REAR BODYWORK BUMPER

REAR BODYWORK CLOSEOFF

REAR BODYWORK FENDERS AND BEZELS- Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP (C700248-8)

REAR BODYWORK RACK

ROCKER PANELS

SEAT ASM. AND SLIDER

SEAT BELT MOUNTING

BRAKES, BRAKE LINES AND MASTER CYLINDER

FRONT BRAKE CALIPER

BRAKES, PEDAL

BRAKES, REAR CALIPER

CHASSIS, CAB FRAME

CHASSIS, MAIN FRAME AND SKID PLATES

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, SECONDARY CLUTCH

ELECTRICAL, BATTERY

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

ELECTRICAL, ECM, COIL, REGULATOR

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS

ELECTRICAL, WIRE HARNESS

ELECTRICAL, WIRE HARNESS

ENGINE, AIR INTAKE SYSTEM

CAM CHAIN AND TENSIONER

ENGINE, COOLING SYSTEM

ENGINE, CRANKCASE AND CRANKSHAFT

CYLINDER AND PISTON

ENGINE, CYLINDER HEAD AND VALVES

ENGINE, DIPSTICK & OIL FILTER

ENGINE, EXHAUST SYSTEM

ENGINE, MOUNTING

OIL PUMP

STARTER

ENGINE, STATOR AND FLYWHEEL

ENGINE, THROTTLE BODY AND VALVE COVER

ENGINE, THROTTLE PEDAL

ENGINE, WATERPUMP AND BYPASS

REFERENCE, OWNERS MANUAL AND TOOL KIT

POWER STEERING ASM.

FRONT SUSPENSION CARRIER- Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP (C0704127-2)

FRONT SUSPENSION CONTROL ARMS

SUSPENSION, FRONT SHOCK INTERNALS

SUSPENSION, FRONT SHOCK MOUNTING

SUSPENSION, FRONT STABILIZER BAR- Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP (C701006-3)

SUSPENSION, REAR CARRIER

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION SHOCK INTERNALS

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, STABILIZER BAR, REAR

WHEELS, FRONT

WHEELS, REAR

DECALSS

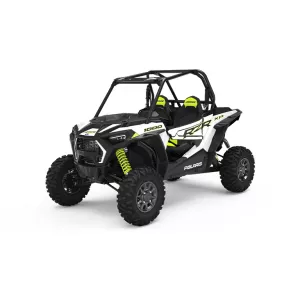

POLARIS RZR XP 1000 2021
