Engine displacement
500
2
Year
2003
3
Trim
SCRAMBLER 500 4X4 - A03BG50AA
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
FRONT HOUSING
CARBURETOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
SCREW
3130821
$13,64 Unit Price incl. VAT
2
DIAPHRAGM COVER
3130914
$89,24 Unit Price incl. VAT
3
SPRING
3130911
9999999
Not Available
4
RING
3130913
$10,49 Unit Price incl. VAT
5
E-RING
3130908
$11,54 Unit Price incl. VAT
6
RING
3130915
9999999
Not Available
7
JET NEEDLE
3131358
9999999
Not Available
8
DIAPHRAGM
3130910
$125,99 Unit Price incl. VAT
9
PISTON VALVE
3130912
9999999
Not Available
10
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
11
THROTTLE SHAFT ASM.
3130931
$120,74 Unit Price incl. VAT
12
RING
3130932
9999999
Not Available
13
SPRING
3130927
$10,49 Unit Price incl. VAT
14
SCREW
3130933
$4,19 Unit Price incl. VAT
15
WASHER
3130926
9999999
Not Available
16
CASE
3130925
$104,99 Unit Price incl. VAT
17
AIR JET
3130619
$15,74 Unit Price incl. VAT
18
ASM. CARBURETOR
3131452
9999999
Not Available
19
JET-NEEDLE
3131309
9999999
Not Available
20
BLOCK-JET
3131290
9999999
Not Available
21
O-RING
3130916
$8,39 Unit Price incl. VAT
22
DESC NOT_AVAILABLE
3131208
Not Available
23
PLUNGER ASM.
3130593
3130539
$73,49 Unit Price incl. VAT
24
SPRING
3130538
9999999
Not Available
25
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
26
CAP
3130519
9999999
Not Available
27
E-RING
3130518
9999999
Not Available
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
SEAL
3130515
9999999
Not Available
30
SCREW
3130906
9999999
Not Available
31
VALVE THROTTLE 120
3130907
$83,99 Unit Price incl. VAT
32
JET PILOT #40
3131306
3130624
$52,49 Unit Price incl. VAT
33
NEEDLE VALVE; 1.5
3131359
$136,49 Unit Price incl. VAT
34
O-RING
3130928
9999999
Not Available
35
O-RING
3131294
3130929
$20,99 Unit Price incl. VAT
36
COVER
3130930
$68,24 Unit Price incl. VAT
37
SCREW
3130924
$3,14 Unit Price incl. VAT
38
SPRING
3130010
$18,89 Unit Price incl. VAT
39
WASHER
3131296
9999999
Not Available
40
CABLE ADJUSTER ASSEMBLY
3131295
9999999
Not Available
41
CLIP
3131242
9999999
Not Available
42
SCREW-GUIDE
3131291
3130321
$41,99 Unit Price incl. VAT
43
O-RING
3130239
9999999
Not Available
44
JET-MAIN(#155)
3131308
3130570
$16,79 Unit Price incl. VAT
45
RING
3130919
9999999
Not Available
46
SCREW
3130935
$10,49 Unit Price incl. VAT
47
FLOAT BODY ASSEMBLY
3130923
$125,99 Unit Price incl. VAT
48
SEAL
3130917
$13,64 Unit Price incl. VAT
49
ASM-FLOAT
3131293
3130921
$125,99 Unit Price incl. VAT

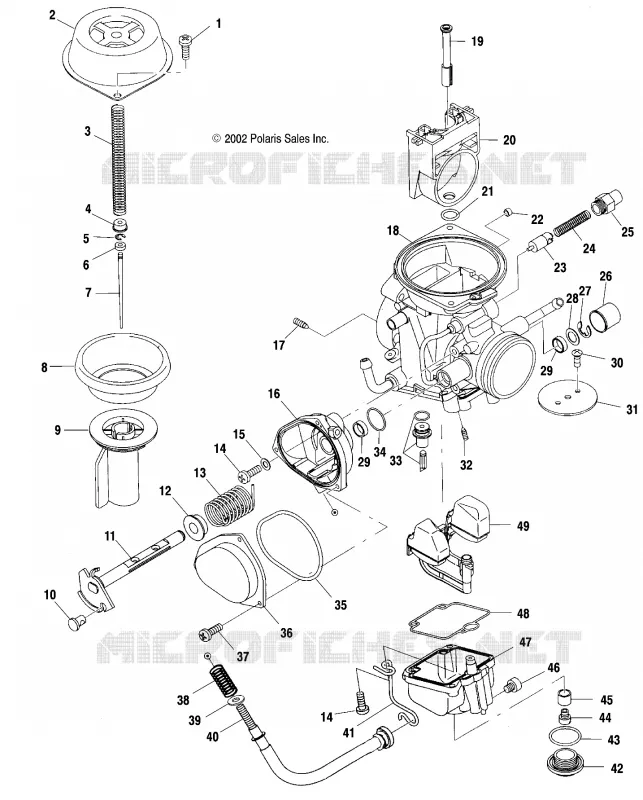

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
