1
Engine displacement
850
2
Year
2012
3
Trim
SPORTSMAN XP TOURING EPS 850 INTL - A12DN8EFW
4
Parts Catalog
FRONT SUSPENSION A-ARMS
5
Parts Diagram
Parts Catalog
STEERING POST ASM.
by
REAR SUSPENSION
FRONT SUSPENSION A-ARMS
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
8
9
9
9
10
10
11
11
11
11
12
12
13
14
14
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
14
1
CONTROL ARM FRONT UPPER RIGHT GS BLK
1018196067
Not Available
1
CONTROL ARM FRONT LOWER LEFT GS BLK
1018195067
Not Available
2
WELD-LCA FRONT LH BLK
1018193067
Not Available
2
WELD-LCA FRONT RH BLK
1018194067
Not Available
3
EXTERNAL RETAINER RING
7710533
$4,19 Unit Price incl. VAT
4
BALL-JOINT LONG STUD
7081666
7061220
$141,74 Unit Price incl. VAT
5
NUT-M8X1.25C10 HX NYL DIN982 Z
7547405
$2,09 Unit Price incl. VAT
6
SCR-M8X1.25X65-HX/FL-Y CL 10.9
7519212
$9,44 Unit Price incl. VAT
7
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
8
CONTROL ARM BUSHING
5436798
$4,19 Unit Price incl. VAT
9
A-ARM SHAFT
5137346
$31,49 Unit Price incl. VAT
10
BOLT 10 MM X 1.5 MM X 85
7518466
$9,44 Unit Price incl. VAT
11
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
12
CV SHIELD; FRONT; RIGHT; GLOSS BLACK
5436658070
Not Available
12
CV SHIELD; FRONT; LEFT; GLOSS BLACK
5436657070
Not Available
13
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
14
WASHER-M8 FW STL THRU-HRD
7556557
$2,09 Unit Price incl. VAT

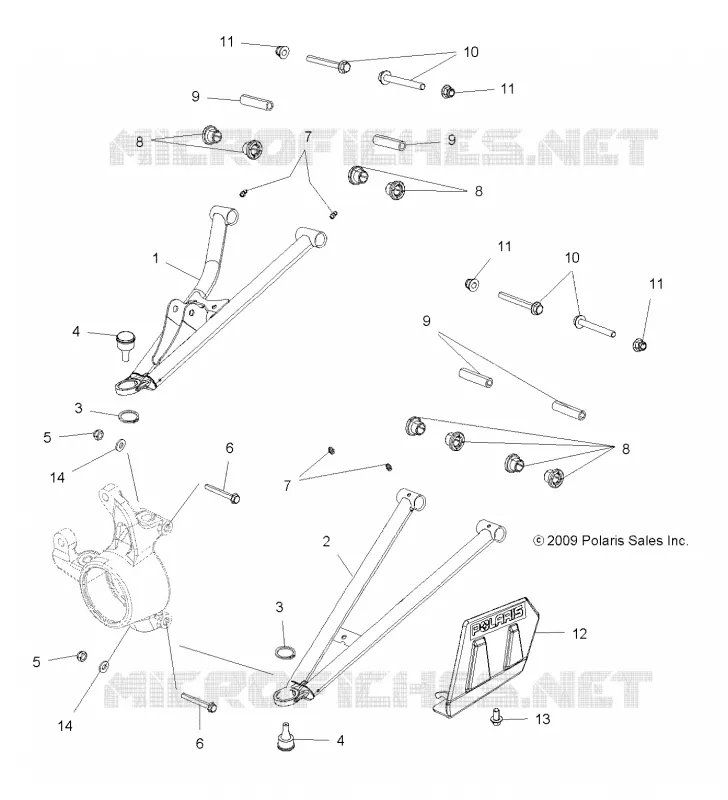

Find the detailed FRONT SUSPENSION A-ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
