1
Engine displacement
autre
2
Year
1998
3
Trim
TRAIL TOURING - 0982362
4
Parts Catalog
REAR TORQUE ARM TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B014)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B009)
by
DRIVE CLUTCH TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231C001)
REAR TORQUE ARM TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B014)
1
SCREW
7517247
9999999
Not Available
2
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
4
SHAFT R.TORQUE UPPER
5020845
9999999
Not Available
5
ARM R.TORQUE BLK
1541152067
Not Available
6
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
7
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
8
SHAFT
5333536
9999999
Not Available
9
NUT FLEX-LOC
7542303
9999999
Not Available
10
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
11
SCREW
7517232
$36,74 Unit Price incl. VAT
12
COLLAR;BRG LOCK
5010404
9999999
Not Available
13
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
14
CARRIER WHEEL
1543023
9999999
Not Available
15
WASHER THRUST
7555787
9999999
Not Available
16
TORISON SPRING; RIGHT; .421 DIA
7041462067
Not Available
16
SPRING LH TORS(.437/77)
7041465067
Not Available
16
SPRING LH TORS(.406DIA)
7041463067
Not Available
16
SPRING RH TORS(.406DIA)
7041464067
Not Available
16
SPRING RH TORS(.437/77)
7041466067
Not Available
16
SPRING LH TORS(.421DIA)
7041461067
Not Available
17
TORSION SPRING SLEEVE
5431923
9999999
Not Available
18
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
19
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
20
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
21
WASHER
7555716
$3,14 Unit Price incl. VAT
22
STRAP-LIMITER RR SA
5411062
9999999
Not Available
23
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
24
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
25
PIVOT TUBE BUSHING
5020561
9999999
Not Available
26
SPACER
5333559
9999999
Not Available
27
ROD SHOCK (XTRA 10)133
1541021067
Not Available
28
SHOCK GAS R.TRACK
7041438
9999999
Not Available
29
BOLT
7515472
$4,19 Unit Price incl. VAT
30
BUSHING
5010422
$18,89 Unit Price incl. VAT

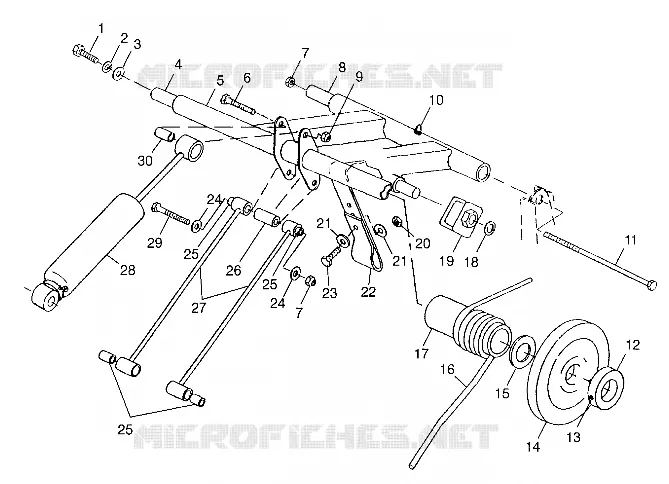

Find the detailed REAR TORQUE ARM TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
