1
Engine displacement
autre
2
Year
1998
3
Trim
TRAIL TOURING - 0982362
4
Parts Catalog
CHAINCASE TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B008)
5

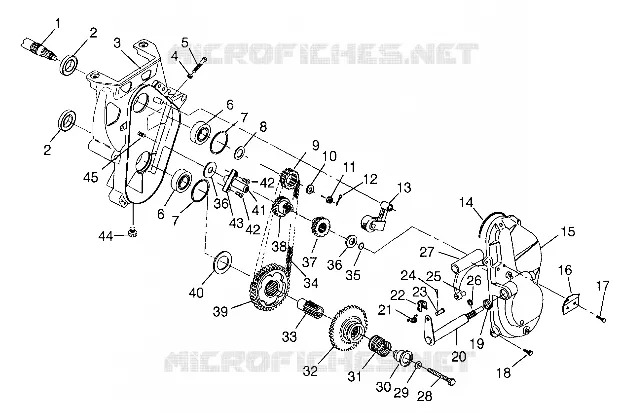

Parts Diagram
Parts Catalog
STEERING TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B007)
by
DRIVE TRAIN TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B009)
CHAINCASE TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B008)
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
3
CHAINCASE-W/RATCHET MNT
5131568
9999999
Not Available
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
SCREW
7515551
9999999
Not Available
6
BALL BEARING #6205
3514309
3515910
$30,23 Unit Price incl. VAT
7
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
8
WASHER
7555917
$4,19 Unit Price incl. VAT
9
SPKT 20T 3/4W 15T SPL HYVO
3221087
9999999
Not Available
10
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
11
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
12
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
13
BLOCK TIGHTENER
5630122
9999999
Not Available
13
TIGHTENER ASMGEARCASE
1332096
9999999
Not Available
13
WHEEL C/C IDLER
5630123
9999999
Not Available
13
BEARING
3553002
9999999
Not Available
13
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
13
PIN CHAIN TIGHTENER
7662210
9999999
Not Available
14
CHAINCASE GASKET
5410277
9999999
Not Available
15
COVER CHAINCASE REV.
5131753
Not Available
16
BRKTCABLE MOUNT
5222502067
Not Available
17
SCREW
7517386
$2,09 Unit Price incl. VAT
18
SCREW
7512242
$4,19 Unit Price incl. VAT
19
OIL SEAL
3610029
9999999
Not Available
20
SHAFT SHIFT
1341093067
Not Available
21
SPRING REV.CABLE TENSION
7042044
9999999
Not Available
22
CLEVIS
5222606
9999999
Not Available
23
CLEVIS PIN
7661830
$7,34 Unit Price incl. VAT
24
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
25
PIN; DOWEL
7661826
9999999
Not Available
26
RING RETAINER
7710415
9999999
Not Available
27
KIT SHIFT FORK/SHAFT
2200363
9999999
Not Available
27
SHIFT FORK
5130805
9999999
Not Available
28
SCREW NYLOK
7515348
9999999
Not Available
29
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
30
RETAINER DRIVE COUPLER
5130727
9999999
Not Available
31
SPRING; COMPRESSION
7041309
9999999
Not Available
32
GEAR ASMREVERSE
1341121
9999999
Not Available
33
COUPLER DRIVE
5130720
9999999
Not Available
34
CHAIN 66P 3/4W HYVO
3224071
3221113
$194,24 Unit Price incl. VAT
35
O-RING
5410589
9999999
Not Available
36
WASHER THRUST
7555877
$14,69 Unit Price incl. VAT
37
NEEDLE BEARING
3554508
9999999
Not Available
37
PINION GEAR ASSEMBLY
1341075
9999999
Not Available
38
ASM-SPROCKET PINION 18T 3/4W
1341241
9999999
Not Available
39
SPKT 40T 3/4W REV HYVO
1341224
9999999
Not Available
40
WASHER
7555871
9999999
Not Available
41
SHAFT PINION
5130728
9999999
Not Available
42
SCREW
7512019
9999999
Not Available
43
BRKT CHAIN RETENTION
5222298
9999999
Not Available
44
PLUG
7052115
$10,49 Unit Price incl. VAT
45
SCREW; CARRIAGE
7515477
9999999
Not Available

Find the detailed CHAINCASE TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
