1
Engine displacement
autre
2
Year
1997
3
Trim
CLASSIC TOURING - 0973365
4
Parts Catalog

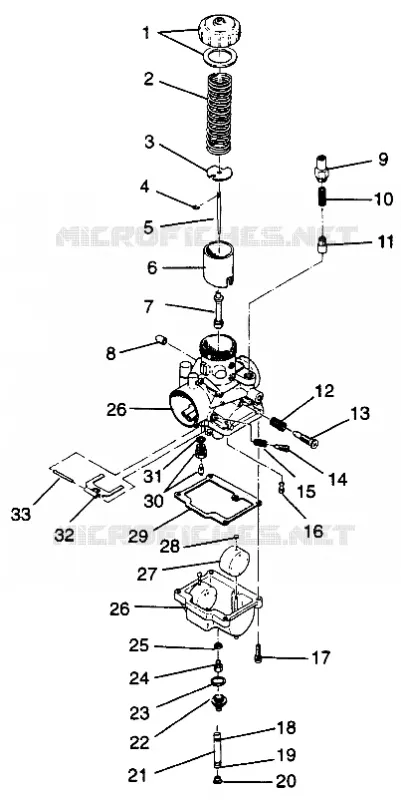

CARBURETOR CLASSIC TOURING 0973365 AND EUROPEAN CLASSIC TOURING E973365 (4938493849C012)
5
Parts Diagram
Parts Catalog
TOOL KIT CLASSIC TOURING 0973365 AND EUROPEAN CLASSIC TOURING E973365 (4938493849C007)
by
FUEL PUMP CLASSIC TOURING 0973365 AND EUROPEAN CLASSIC TOURING E973365 (4938493849C013)
CARBURETOR CLASSIC TOURING 0973365 AND EUROPEAN CLASSIC TOURING E973365 (4938493849C012)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
9999999
Not Available
3
THROTTLE PLATE
3130027
$19,94 Unit Price incl. VAT
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET
3130423
9999999
Not Available
6
THROTTLE VALVE; 3.0
3130372
$104,99 Unit Price incl. VAT
7
JET NEEDLE (P-2) Substituted by 3130675 (480)
3130698
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
12
SPRING
3130010
$18,89 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
9999999
Not Available
14
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
15
SPRING AIR ADJUST
3130012
9999999
Not Available
16
JET PILOT #40(10)
3130067
9999999
Not Available
17
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
18
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
19
CLAMP HOSE
7080544
9999999
Not Available
20
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
21
FUEL LINE; 5 FT.
8450045153
Not Available
22
FITTING SEDIMENT
5020476
9999999
Not Available
23
O-RING
3130239
9999999
Not Available
24
MAIN JET; #250
3130637
9999999
Not Available
25
WASHER
3130014
$3,14 Unit Price incl. VAT
26
CARBURETOR (Incl. 1-17 22-33)
3130706
Not Available
27
FLOAT ASSEMBLY
3130430
$73,49 Unit Price incl. VAT
28
CAP
3130237
$8,39 Unit Price incl. VAT
29
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
30
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
31
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
32
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
33
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT

Find the detailed CARBURETOR CLASSIC TOURING 0973365 AND EUROPEAN CLASSIC TOURING E973365 (4938493849C012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
