1
Engine displacement
780
2
Year
1996
3
Trim
SL 780 - B964087
4
Parts Catalog
FUEL SYSTEM SL 780 B964087 AND INTL. SL 780 I964087 (4935523552A010)
5
Parts Diagram
Parts Catalog
by
SEAT SL 780 B964087 AND INTL. SL 780 I964087 (4935523552A011)
FUEL SYSTEM SL 780 B964087 AND INTL. SL 780 I964087 (4935523552A010)
1
2
2
2
2
2
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
1
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
2
FUEL LINE1/4 ID(1525 CM.)
84500461525
Not Available
3
GROMMET VENT
5410682
9999999
Not Available
4
VALVE CHECK RELIEF
7051015
9999999
Not Available
5
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT
6
FITTING TEE
7052111
9999999
Not Available
7
SCREW S.S.(10)
7516302
9999999
Not Available
8
WASHER; FLAT; S.S.
7555840
9999999
Not Available
9
KNOB; FUEL VALVE
5431360
9999999
Not Available
10
NUT; FUEL VALVE
5431451
9999999
Not Available
11
VALVE; FUEL
7052123
9999999
Not Available
12
WASHER; LOCK; S.S.
7555838
9999999
Not Available
13
WASHER
7555836
9999999
Not Available
14
BOLT(10)
7515174
9999999
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
BOLT
7515127
9999999
Not Available
17
BRKT FUELPUMP
1060120
Not Available
18
NUT NYLOK S.S.
7542133
9999999
Not Available
19
T-CLIP
7080482
9999999
Not Available
20
VALVEVACUUM CHECK
7052118
9999999
Not Available

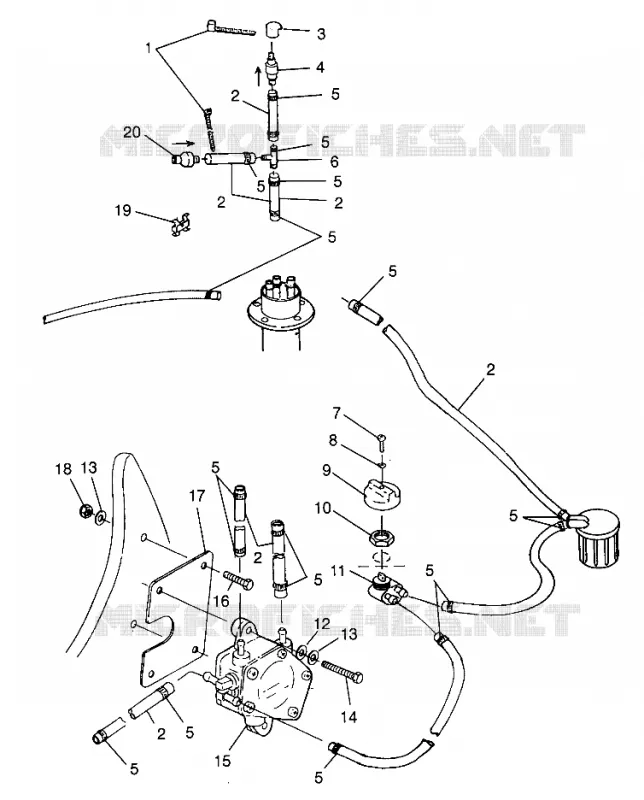

Find the detailed FUEL SYSTEM SL 780 B964087 AND INTL. SL 780 I964087 (4935523552A010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
