1
Engine displacement
340
2
Year
2006
3
Trim
340 TOURING
4
Parts Catalog
STARTING MOTOR
5
Parts Diagram
Parts Catalog
CARBURETOR
by
CHASSIS
STARTING MOTOR
1
2
3
4
15
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
2
3
3
4
15
15
15
15
15
15
6
7
8
9
10
11
12
13
14
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
16
17
17
17
18
18
1
MAGNETIC SWITCH
4011335
$115,49 Unit Price incl. VAT
2
HEX NUT
7542105
$7,34 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
KIT COMMUTATOR CAP ASM.
2200758
9999999
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BRUSH AND SPRING KIT
2200759
9999999
Not Available
6
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
7
SCREW
7516815
$11,54 Unit Price incl. VAT
8
BRACKET; STARTER; REAR
5241786
9999999
Not Available
9
SCREW AND WASHER ASSEMBLY
7516730
9999999
Not Available
10
SCREW
7512492
$2,09 Unit Price incl. VAT
11
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
12
STARTER BRACKET; FRONT
5241316
9999999
Not Available
13
MOTOR STARTER DOMESTIC
4170006
9999999
Not Available
14
ARMATURE KIT ASSEMBLY
2200756
9999999
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
KIT DRIVE HARDWARE
2200755
9999999
Not Available
16
DRIVECAP KIT ASSEMBLY
2200757
9999999
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
DRIVE ASSEMBLY KIT
2200754
9999999
Not Available
18
KIT SCREW
2200753
9999999
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

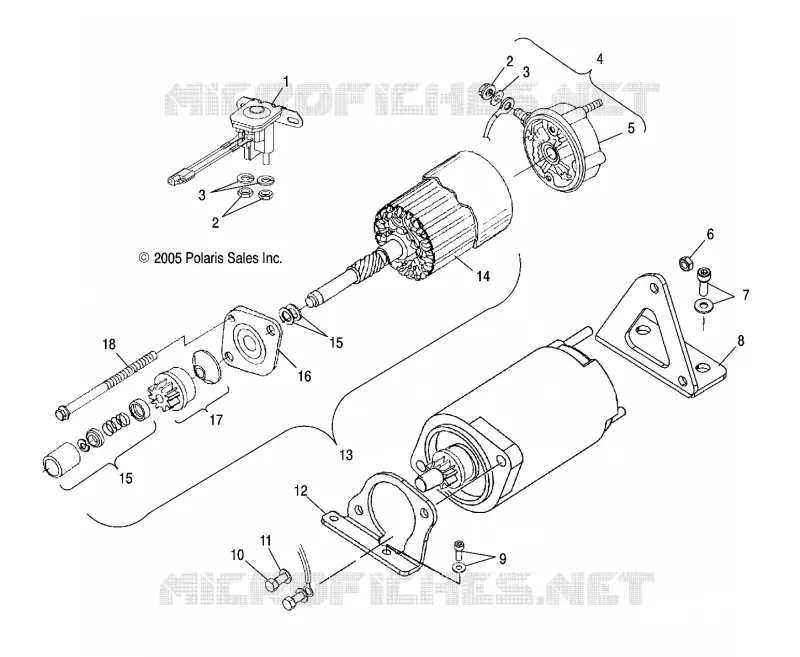

Find the detailed STARTING MOTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
