1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 EPS ZUG SP
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST
by
ENGINE, VALVE COVER
ENGINE, MOUNTING
1
2
2
3
4
4
5
6
7
8
9
10
11
12
12
12
12
12
13
13
14
14
15
1
ENGINE MOUNT; REAR
5256926
$52,49 Unit Price incl. VAT
2
ISOLATOR-3/8-24M/M 60DURO
3022071
3024012
$83,99 Unit Price incl. VAT
3
ISOLATOR TUBE; REAR
5337887
$27,29 Unit Price incl. VAT
4
ISOLATOR-RUBBER 40D SILICONE
5415404
$9,44 Unit Price incl. VAT
5
ENGINE BRACKET MOUNT; FRONT; LEFT
5259038
$31,49 Unit Price incl. VAT
6
CAST ENGINE MOUNT REAR
5633144
5634600
$141,74 Unit Price incl. VAT
7
ENGINE BRACKET MOUNT; FRONT; RIGHT
5259039
$31,49 Unit Price incl. VAT
8
SCREW
7515417
9999999
Not Available
9
BOLT
7515528
$15,74 Unit Price incl. VAT
10
BOLT-3/8-16X7/8 HEX FLANGE GR5
7518364
$3,14 Unit Price incl. VAT
11
SCR-3/8-24X6.00-HXCP-GR8-Y
7518481
$15,74 Unit Price incl. VAT
12
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
13
NUT
7547108
$9,44 Unit Price incl. VAT
14
WASHER
7555761
$4,19 Unit Price incl. VAT
15
ENGINE MOUNT HOSE
5415442
$9,44 Unit Price incl. VAT

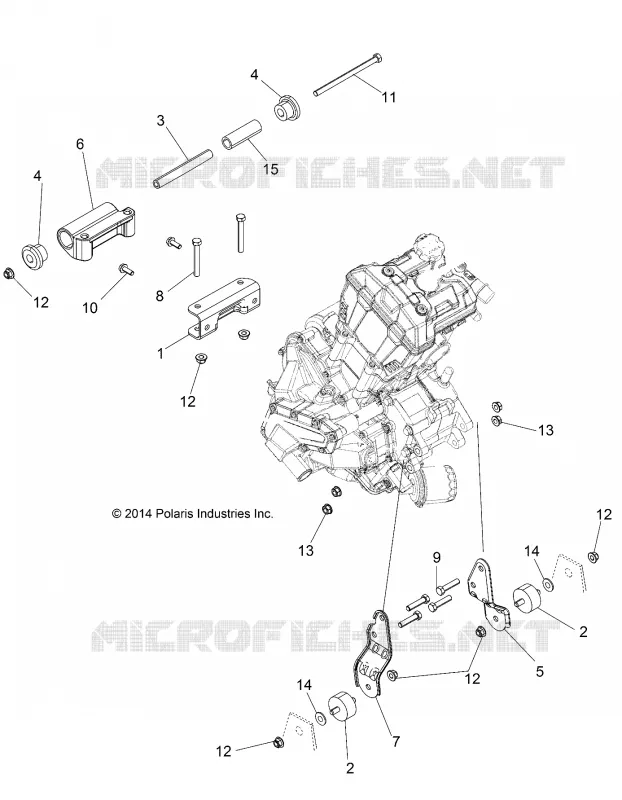

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
