ENGINE, AIR INTAKE SYSTEM for POLARIS RZR XP 4 1000 PREMIUM RIDE COMMAND from 2023

ELECTRICAL, WIRE HARNESS

CAM CHAIN AND TENSIONER

ENGINE, AIR INTAKE SYSTEM

1

DRAIN PLUG

5414472

$10,49 Unit Price incl. VAT

2

AIRBOX HOSE

5414691

$204,74 Unit Price incl. VAT

3

3.75 SS

7080907

$20,99 Unit Price incl. VAT

4

AIRBOX HOUSING ASSEMBLY

1240747

$173,24 Unit Price incl. VAT

5

U-TYPE NUT; M6-1.0

7547674

$2,09 Unit Price incl. VAT

6

AIRBOX COVER ASSEMBLY

1240748

$141,74 Unit Price incl. VAT

7

AIRBOX SEAL

5813929

$52,49 Unit Price incl. VAT

8

AIRBOX CLIP

7081872

$10,49 Unit Price incl. VAT

9

FILTER ASSEMBLY

1241084

$57,63 Unit Price incl. VAT

10

WASHER .281 X 1.00 X 0.51

7556329

$2,09 Unit Price incl. VAT

11

DECAL-CAUT.AIR BOX

7182652

Not Available

12

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

13

BOLT

7519650

$7,34 Unit Price incl. VAT

14

INTAKE DUCT ASSEMBLY

1240770

$278,24 Unit Price incl. VAT

15

ENGINE HOSE VENT

5414671

$73,49 Unit Price incl. VAT

16

HOSE CLAMP

7080614

$13,64 Unit Price incl. VAT

17

SPRINGBAND CLAMP; 27/12; GREEN

7080841

$13,64 Unit Price incl. VAT

18

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

19

INTAKE WELD; ENGINE HOUSING

1240749

$293,99 Unit Price incl. VAT

20

COMPRESSION SHAFT LIMITER; 34.4 MM

5138987

$31,49 Unit Price incl. VAT

21

THROTTLE BODY BOOT

5414570

$99,74 Unit Price incl. VAT

22

BUSHING-MOUNT

5414719

$5,24 Unit Price incl. VAT

23

WORM DRIVE CLAMP; .44 X 3.75

7080812

$36,74 Unit Price incl. VAT

24

CLAMP HOSE

7081623

$5,76 Unit Price incl. VAT

25

HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM

7519298

$7,34 Unit Price incl. VAT

26

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

27

HOSE-INTAKE AIRBOX OUT

5414652

9999999

Not Available

28

HOSE-INTAKE ENG HOUSING

5414670

$62,99 Unit Price incl. VAT

29

FITTING-3/4 DOUBLE BARB

7052580

$10,49 Unit Price incl. VAT

30

CLAMP-HOSE

7081902

9999999

Not Available

31

HOSE CLAMP

7081903

$13,64 Unit Price incl. VAT

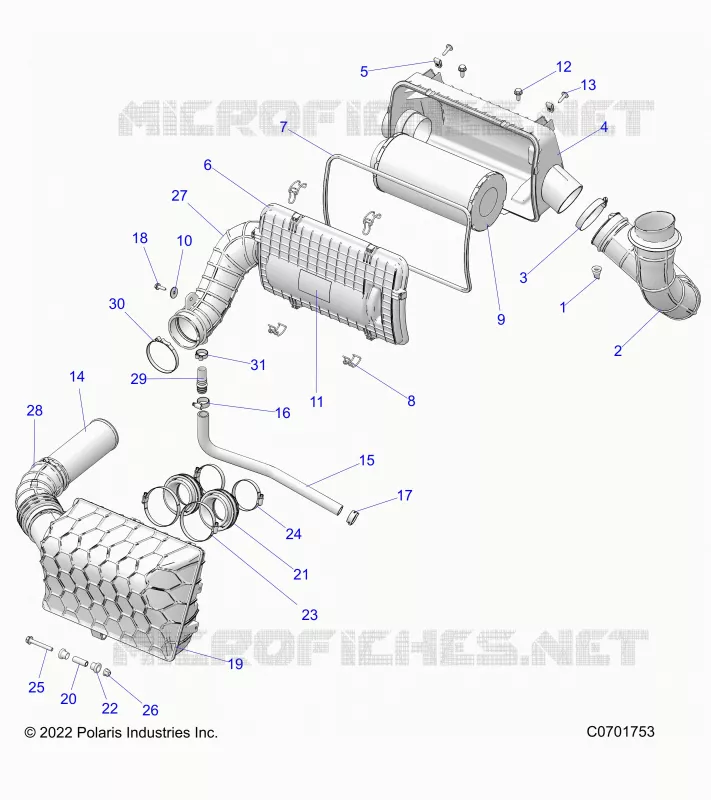

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
