1
Engine displacement
700
2
Year
1999
3
Trim
700 XCR - 099AB7BS
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN
by
FOX SHOCK
COOLING SYSTEM
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
27
27
27
27
28
29
30
30
31
32
33
33
33
33
33
33
34
35
36
37
38
39
40
41
42
43
44
1
HOSE;ENG.OUT/STAT.IN;1IN.ID.
5411457
9999999
Not Available
2
CLAMP HOSE GRY 35MM.
7080564
9999999
Not Available
3
HOUSING-THERMOSTAT MACH
5132025
9999999
Not Available
4
AUTOSTAT 120DEG.
7051017
Not Available
5
GASKET THERMOSTAT
5830020
9999999
Not Available
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
BOLT
7512383
9999999
Not Available
8
SCREW
7517266
$23,09 Unit Price incl. VAT
9
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
10
CAP THERMOSTAT HSG MACH.
5130942
9999999
Not Available
11
SENSOR WATER TEMP
3086138
9999999
Not Available
12
HOSE;STAT.OUT/BRAKE IN;1IN.ID.
5411459
9999999
Not Available
13
HOSE R.COOLER 3-WAY
5410845
9999999
Not Available
14
TUBING CONVOL 8 X1 IN
5411396
9999999
Not Available
15
SPRINGHOSE RETAINER
7042041
9999999
Not Available
16
HOSEPUMP/TANKCOOL.
5411004
9999999
Not Available
17
PRESSURE CAP; 13 LB
2511270
9999999
Not Available
18
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
19
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
20
FUEL LINE; 1/4 ID
84500031525
Not Available
21
BOLT
7512240
9999999
Not Available
22
TANK COOLANT(NO BLEED)
5432557
Not Available
23
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
24
HOSE 3-WAY R.COOLER
5410962
9999999
Not Available
25
EXCHANGER R.COOLING
2511301
9999999
Not Available
26
HOSE COOLING
5410758
9999999
Not Available
27
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
28
TAPE 35FT SEAL R.COOL.
5811252
Not Available
29
CLAMP HOSE
7080652
9999999
Not Available
30
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
31
HOSE (1 X 10 FT.)
8450048305
Not Available
32
COOLER LH SIDE(XTRA 10)
2511257
9999999
Not Available
33
CLAMP HOSE SIL 27MM.
7080562
7080841
$13,64 Unit Price incl. VAT
34
GUARD COOL.EXT.
5222863
9999999
Not Available
35
HOSE-CROSSOVER
5410350
9999999
Not Available
36
EXCHANGER COOL.CTR.
2511239
9999999
Not Available
37
BRKT SURGE TANK COINED
5241331
9999999
Not Available
38
HOSECTR.COOLER/TOP SURGE
5411070
9999999
Not Available
39
COOLER; SIDE; RIGHT
2511258
9999999
Not Available
40
HOSEWATER305 CM.
8450050305
Not Available
41
CONNECTOR TEE 3/4
7052093
$15,74 Unit Price incl. VAT
42
TUBING CONVOL 1 X2.5
5521242
9999999
Not Available
43
HOSE-CROSSOVER
5410324
9999999
Not Available
44
HOSE;STAT.OUT/TANK IN;1IN.ID.
5411458
9999999
Not Available

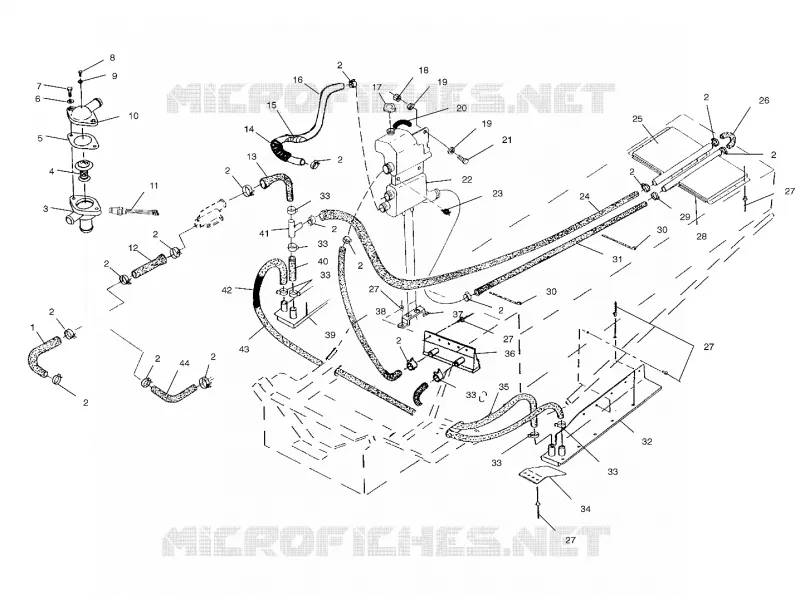

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
