SUSPENSION, RAIL, LH/RH for POLARIS 550 VOYAGEUR 155 from 2021

SUSPENSION, RAIL, LH/RH

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$4,19 Unit Price incl. VAT

2

RAIL TIP; CAP

5438374

$36,74 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

WASHER-M5.3X14X1.2 ZOD

7556470

$4,19 Unit Price incl. VAT

6

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$6,29 Unit Price incl. VAT

7

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

8

BUMPER LINER

5432946

$19,94 Unit Price incl. VAT

9

JOUNCE BUMPER; REAR

5521498

$16,79 Unit Price incl. VAT

10

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

11

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

12

RAIL 155

5138990

5138990-309

$698,24 Unit Price incl. VAT

13

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

13

PIN-CLEVIS 3/16X1 1/4

7661123

$7,34 Unit Price incl. VAT

14

SPRING ROLLER SHAFT

5136687

$19,94 Unit Price incl. VAT

15

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

16

HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM

7519217

$3,14 Unit Price incl. VAT

17

WASHER-SPRING CON 5/16X.118ZOD

7556489

$2,51 Unit Price incl. VAT

18

BEARING; .7874 X 1.6535 X .4724

3515142

$34,64 Unit Price incl. VAT

18

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

18

ASM-WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

19

SCR-M8X1.25X25 8.8 HEX ZOD

7518952

$6,29 Unit Price incl. VAT

20

WHEEL MOUNT BLOCK

5631446

$47,24 Unit Price incl. VAT

21

SLIDER; GLOSS BLACK

5521633070

Not Available

22

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

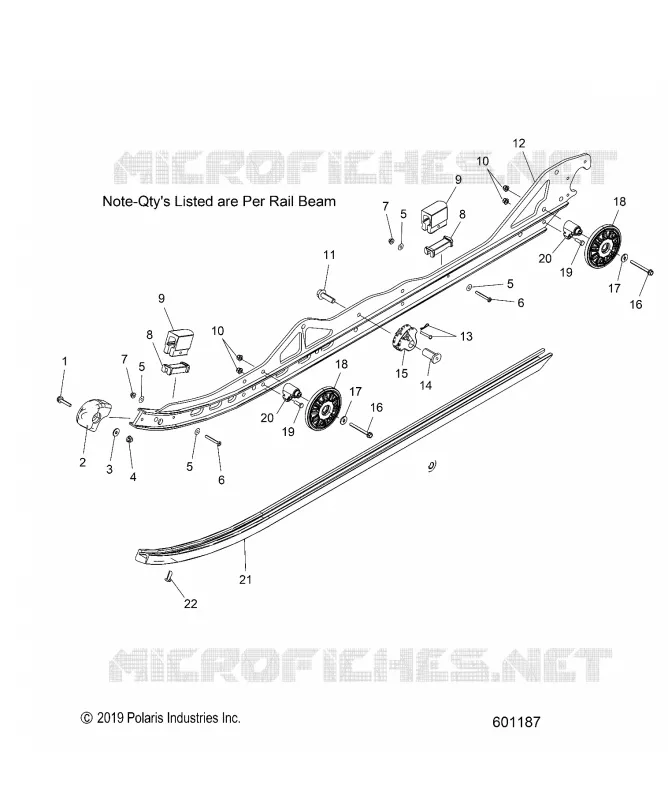

Find the detailed SUSPENSION, RAIL, LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
