1
Engine displacement
autre
2
Year
1991
3
Trim
SWE LITE - S913033
4
Parts Catalog
BLOWER HOUSING STAR LITE (4918591859030A)
5
Parts Diagram
Parts Catalog
MAGNETO INDY LITE (4918591859029A)
by
RECOIL STARTER STAR LITE (4918591859031A)
BLOWER HOUSING STAR LITE (4918591859030A)
1
HOUSING BLOWER Substituted by 3083416
3083314
Not Available
2
ASM-BOLT&WASHER(10)
3082030
7520783
$7,34 Unit Price incl. VAT
3
BOLT
3080109
9999999
Not Available
4
WASHER SPRING(10)
3080077
9999999
Not Available
5
WASHER(10)
3080078
9999999
Not Available
6
BAFFLE CYL.
3083417
9999999
Not Available
7
BOLT & WASHER ASM.(10)
3082609
Not Available
8
CLAM(10)
3083187
Not Available
9
WASHER
3082520
9999999
Not Available
10
GROMMET
3082875
9999999
Not Available

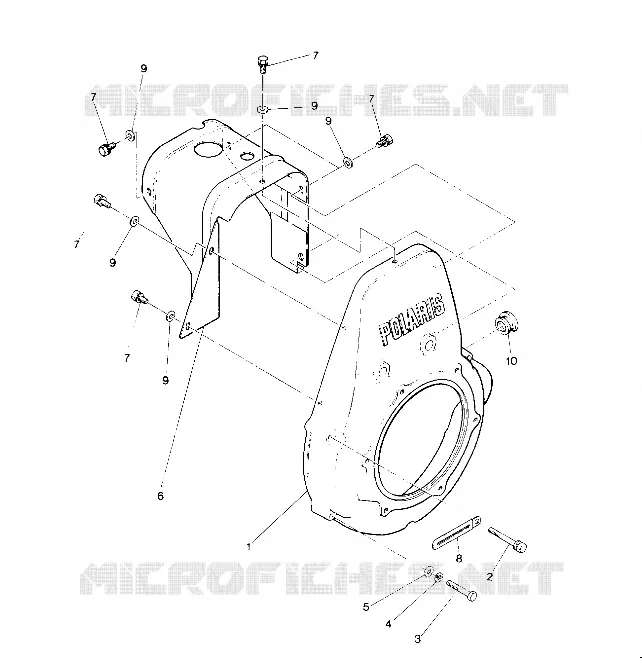

Find the detailed BLOWER HOUSING STAR LITE (4918591859030A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
