1
Engine displacement
500
2
Year
2001
3
Trim
500 SKS
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
DECALS
by
CHAINCASE
FRONT SUSPENSION
1
1
2
3
4
5
5
6
6
7
8
9
10
10
10
11
11
11
11
12
12
13
14
15
16
17
18
18
18
18
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
34
35
36
37
37
38
39
40
41
42
43
44
44
45
46
47
48
1
STRAP SPACER BOTTOM
5211345
9999999
Not Available
2
NUT FLEXOC;
7542703
9999999
Not Available
3
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
4
BOLT
7512551
9999999
Not Available
5
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
6
NUT FLEXLOCK
7542503
9999999
Not Available
7
BAR-TORSION 5/8 BLK
5243008067
Not Available
8
SWAY BAR BUSHING
5432038
9999999
Not Available
9
RIVET (50)
7621477
9999999
Not Available
10
NUT LOCK
7542403
9999999
Not Available
11
ARM RH STRG ALUM.
5131740
9999999
Not Available
11
STEERING ASSEMBLY; LEFT; ALUMINUM
5131739
9999999
Not Available
12
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
13
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
14
SPHERICAL BEARING; PLASTIC
7061042
$54,59 Unit Price incl. VAT
15
RETAINING RING
7710437
$5,76 Unit Price incl. VAT
16
WASHER
7555801
$7,34 Unit Price incl. VAT
17
BOLT
7512579
9999999
Not Available
18
TRAILING ARMRHBLKSVCASM.
1820714067
Not Available
18
TRAILING ARMLHBLKSVCASM.
1820713067
Not Available
19
SWAYBAR SLIDE; 5/8
5432561
9999999
Not Available
20
STOP STRG LH.
5242017067
Not Available
20
STOP STRG RH.
5242018067
Not Available
21
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
22
BUSHING
7556509
$3,14 Unit Price incl. VAT
23
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
24
SPINDLE SHAFT; HARD; MEDIUM GLOSS BLACK
6230099067
Not Available
25
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
26
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
27
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
28
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
29
SPRING-COMP IFS 10.75/100 BLK
7041551067
Not Available
30
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
31
SHOCK-GAS IFS SELECT
7041799
9999999
Not Available
32
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
33
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
34
SCREW
7515415
9999999
Not Available
35
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
36
WASHER
7555832
$4,19 Unit Price incl. VAT
37
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
38
ROD END 7/16 LINED
7061010
9999999
Not Available
39
NUT JAM(10)
7542520
9999999
Not Available
40
RADIUS RODUPPERBLK
1822588067
Not Available
41
RADIUS RODLOWERBLK
1822559067
Not Available
42
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
43
RODEND 1/2 W/LINER 1.05 WIDE
7061027
7061052
$99,74 Unit Price incl. VAT
44
RIVET
7661637
$2,09 Unit Price incl. VAT
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
BOLT
7512684
9999999
Not Available
47
BRKT RAD.ROD BTM.
5242578
9999999
Not Available
48
BRACE BULKHEAD FRONT BLK
1012575067
Not Available

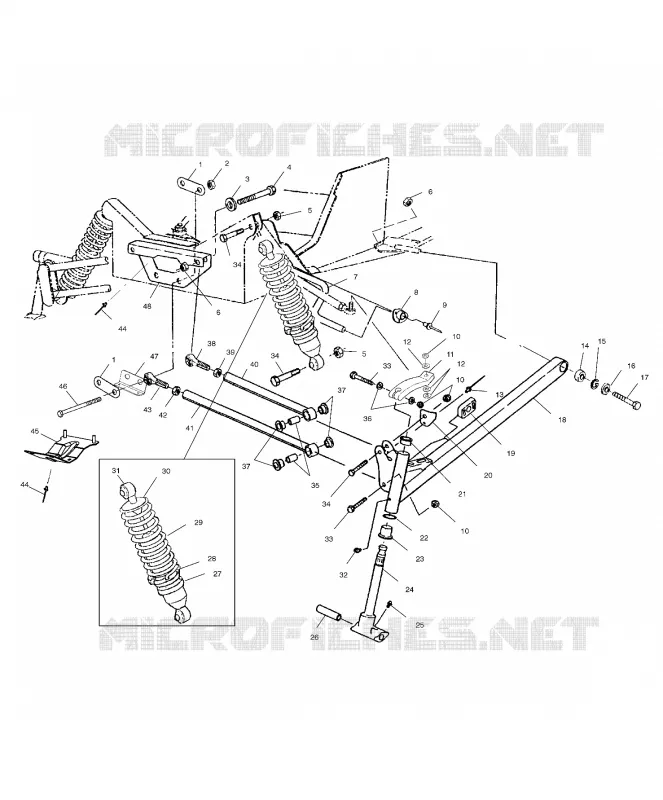

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
