DRIVE TRAIN, GEARCASE (2 OF 2) for POLARIS 500 WIDETRAK LX from 2011

DRIVE TRAIN, GEARCASE (1 OF 2)

DRIVE TRAIN, GEARCASE MOUNTING

DRIVE TRAIN, GEARCASE (2 OF 2)

-

ASM-GEARCASE WIDETRAK BASIC

1332463

9999999

Not Available

1

GEARCASE; RIGHT

3234474

9999999

Not Available

2

GEARCASE; LEFT

3234174

9999999

Not Available

3

REVERSE SHAFT

3233514

9999999

Not Available

4

WASHER-THRUST 1.187X1.50X.06

7556430

9999999

Not Available

5

SPROCKET; 25 TOOTH

3233513

9999999

Not Available

6

NEEDLE CAGE BEARING; 30 X 35 X 13

3514590

9999999

Not Available

7

RING-RET 1.188X1.098X.050

7710606

$4,19 Unit Price incl. VAT

8

DOG ENGAGEMENT L/R

3233512

9999999

Not Available

9

WASHER-THRUST 1.247X.992X.0650

7556433

9999999

Not Available

10

GEAR; 39T

3233511

9999999

Not Available

11

NEEDLE BEARING

3514589

9999999

Not Available

12

WASHER-THRUST 1.265X.990X.125

7556434

$18,89 Unit Price incl. VAT

13

BEARING; 205 WITHOUT SEAL

3514304

$27,29 Unit Price incl. VAT

14

RING-RET BSC EXT.984X.906X.078

7710602

$6,29 Unit Price incl. VAT

15

GEAR; 18T

3233515

9999999

Not Available

16

WASHER-1.375X1.015X.042

7556432

$9,44 Unit Price incl. VAT

17

RING-RET 1.023X.946X.042

7710603

$4,19 Unit Price incl. VAT

18

BALL BEARING; 20 X 47 X 14

3514594

$11,54 Unit Price incl. VAT

19

SPACER-1.375X.135X.162

5135972

9999999

Not Available

20

OUTPUT SHAFT

3233521

$272,99 Unit Price incl. VAT

21

HYVO CHAIN

3221113

$194,24 Unit Price incl. VAT

22

SPROCKET 41T 15T SPLINE

3233519

9999999

Not Available

23

GEAR 47T

3233518

9999999

Not Available

24

SPACER-1.375X.900X.353

5135973

9999999

Not Available

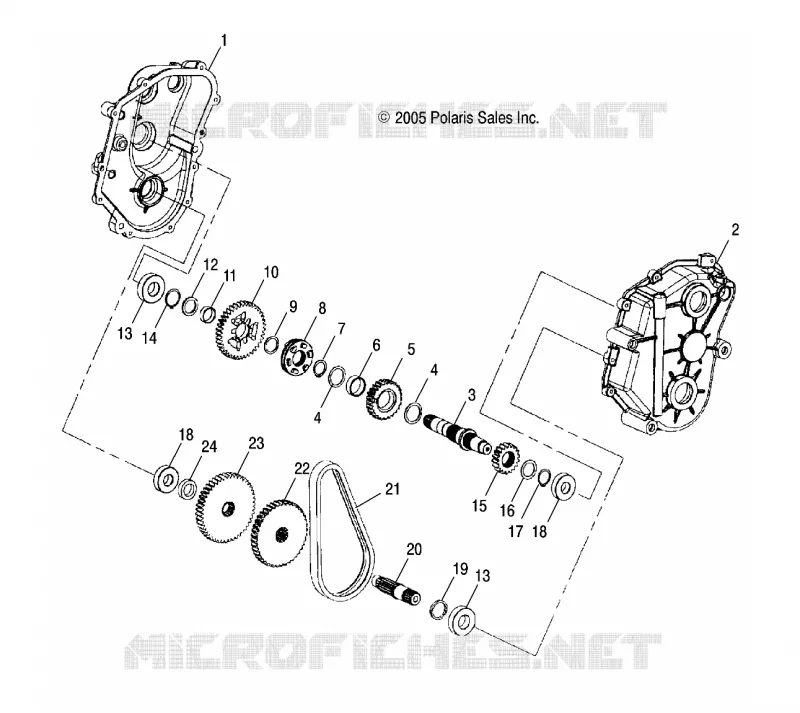

Find the detailed DRIVE TRAIN, GEARCASE (2 OF 2) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
