WHEELS, FRONT AND HUB for POLARIS SPORTSMAN XP 1000 TRACTOR from 2019

WHEELS, FRONT AND HUB

1

KNUCKLE-STEERING MACH LH

5136733

5143613

$272,99 Unit Price incl. VAT

1

ASM-STEERING KNUCKLE LH

1822945

9990000

Not Available

1

ASM-STEERING KNUCKLE RH

1822946

9990000

Not Available

1

KNUCKLE-STEERING MACH RH

5136734

5143614

$272,99 Unit Price incl. VAT

2

TAPERED WHEEL NUT; 10 MM X 1.25 MM

7547361

$4,19 Unit Price incl. VAT

3

FRONT WHEEL 14 X 5IN; MATTE BLACK

1522529458

Not Available

4

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

5

RIM CAP; MATTE BLACK

1521999458

Not Available

6

CASTLE NUT; 18 MM X 1.5 MM X 13 MM

7547406

$9,44 Unit Price incl. VAT

7

CONE WASHER

7555796

$14,69 Unit Price incl. VAT

8

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

9

WHEEL STUD; M10 X 1.25 X 58

7518671

$3,14 Unit Price incl. VAT

10

WHEEL HUB

5135499

5136946

$178,49 Unit Price incl. VAT

11

BRAKE DISC

5250205

$141,74 Unit Price incl. VAT

12

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

13

SEALED BALL BEARING; 44 X 72 X 33.1

3514699

$73,49 Unit Price incl. VAT

14

E-MARK CU063 TIRE 26X8-14

5415737

Not Available

14

TIRE-VIPR MAXXISAT27X9EMARK

5416189

9999999

Not Available

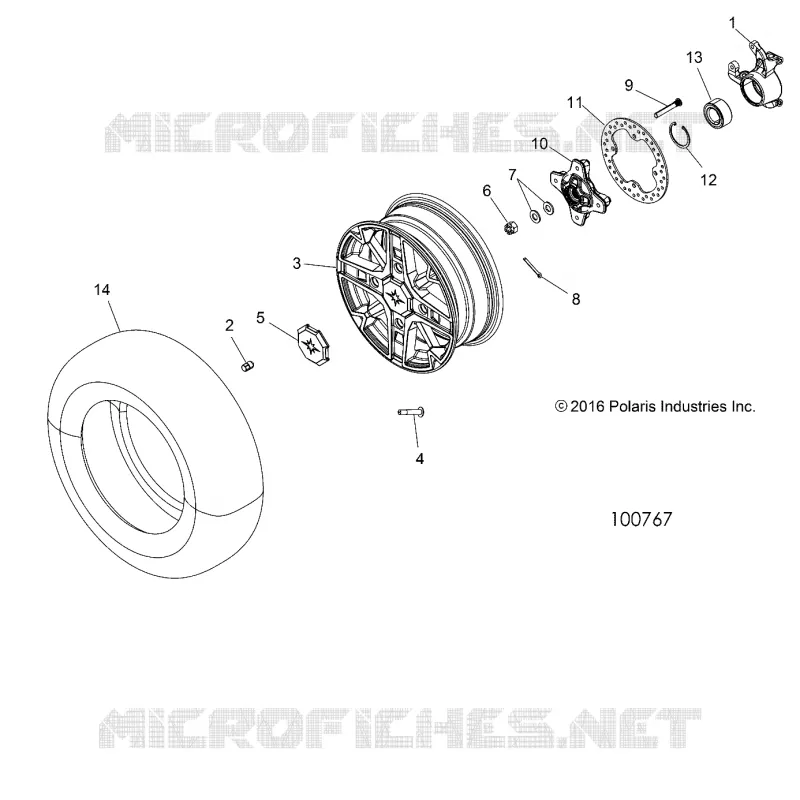

Find the detailed WHEELS, FRONT AND HUB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
